115V AC Bottle Water Dispenser System For Home and Commercial Appliances

Similar to Flojet Bottle Water Dispenser System for Coffee/Tea Mahcine,Ice Maker,Refrigerator,Sink,Faucet etc.
  • Product Origin:

    China
  • Brand:

    Whaleflo
  • Item NO.:

    BW1000A
  • Shipping Port:

    Xaimen,Shanghai,Shenzhen,Ningbo
  • Lead Time:

    5-25 working days
  • Payment:

    T/T,Paypal,Western Union Transfer,

Hot Products

Products Description

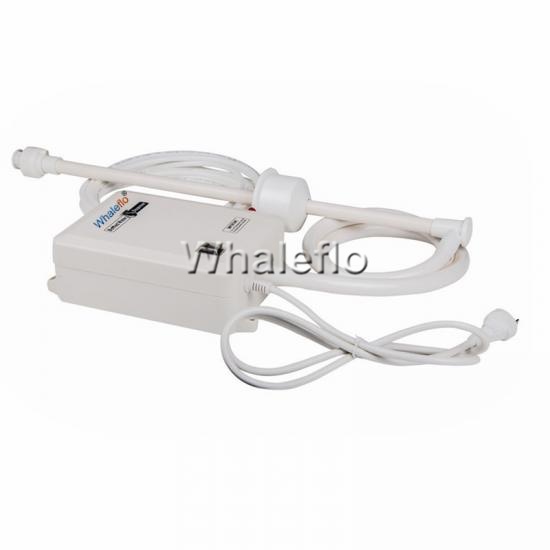

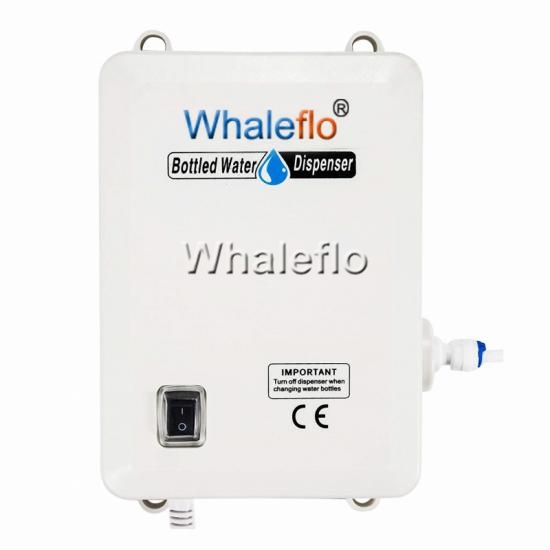

115V AC Bottle Water Dispenser System For Home and Commercial Appliances

5 gallon water bottle pump for ice maker Description

Whaleflo Bottle Water Dispensing System Design For Home And Commercial Applicances.

Works well for Refrigerator/Ice Maker/Coffee Machine/Faucet/Sinks.It Makes Water Supply More Convenient.

5 gallon water bottle pump for ice maker Features

Auto power off.

Low light consumption

Automatic pump operating Easy bottle change

UK/US/EU Plug optional.

Connect to your filtration kit/espresso machine easy

CE/Rohs/FDA/NSF,also with 12 months warranty.

5 gallon water bottle pump for ice maker Specification

Model

GPM

Max
PSI

Outlet

Tubing

Volts

Amps

Cycle

Cord

Dimensions
(H x W x D)

Wt
(kgs)

BW1000A

1.0

40

1/4"

20'

115

0.5

50/60

6'

3.0" x 5.5" x 7.5"

3.5

BW2000A

1.0

40

1/4''

20'

220

0.25

50/60

6'

3.0" x 5.5" x 7.5"

3.5

BW3000A

1.0

40

1/4''

20'

12

5



6'

3.0" x 5.5" x 7.5"

3.5

BW4003A

1.0

40

1/4''

20'

115-240

0.5

50/60

6'

3.0" x 5.5" x 7.5"

3.3

BW2020A 1.0 40 1/4" 20' 220V/115V 0.25 50/60 6' 3.0"x5.5"x 7.5"
3.5

whaleflo dispensing system applicationWhaleflo bw1000a bw2000a

TROUBLESHOOTING

System Will Not Dispense Water


  • Check on/off switch position
  • Check power to dispensing system
  • Check location of suction wand in bottle
  • Check for empty bottle
  • Check for air in system

Discharge Tube Leaks At Fitting


  • Push tube all the way into tube stop
  • Remove tube and cut 1/4 in.(6.35mm)off end,square and reinstall
  • Check correct tube size in fitting,tube size is 1/4 in.(6.35mm)O.D.Fitting should be 1/4 in.(6.35mm)I.D.

System Gets Warm and Turns Off


  • Check the float switch
  • Check for leaks in discharge tube
System Will not Shut-Off



  • Check for leaks in tubing system
  • Check for leaks at bube fittings
  • Check for leaks at faucet,ice maker or refrigerator water valve
  • Check pressure switch by turning faucet off and on
  • Check float switch position in bottle
System Continually Turns Off and On While in Use



  • Check for restriction devise at appliance inlet.
  • Check for filter unit in line.
  • Check for internal filters in the refrigerator
