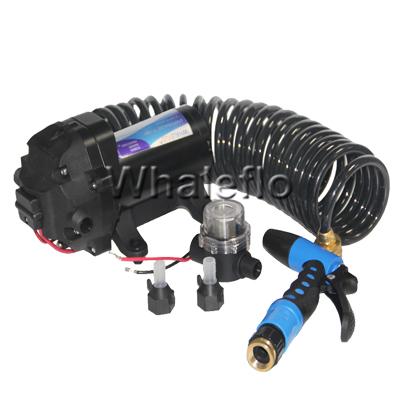

The protable washdown pump kit is consist of 5gallon pump, Trigger Spray Nozzle ,hosecoil , connector.
Pump technical data is 5GPM,18.9LPM 60-70PSI, self priming is 1.8M suction lift and capable of being run dry. The best choice of cleaning boats, fish tanks, anchor well, yatch ,boat cleaning,suitable for fresh and saltwater applications.

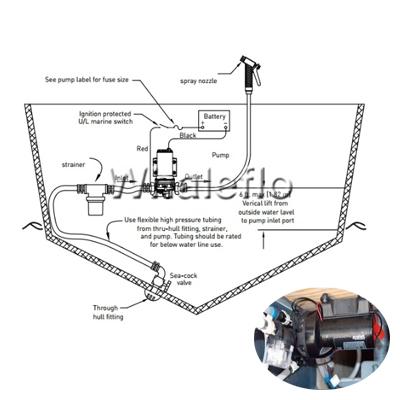

How to work about boat washdown kit?
Pump control via pressure switch. When you turn on the spray gun handlw,pump will work automatically. What's more, when
you rotate the head of spray, the flow is changeable.Pump will turn off with 60-70PSI basing on your setting.It can clean stubborn dirt efficiently.
Boat deck wash kit troubleshooting, pls reference three points.
PULSATING FLOW- PUMP CYCLES ON AND OFF
. Check lines for kinks.
. Plumbing lines or fitings may be too small.
. Clean faucets and filters.
, Check fit tightness for air leaks.
FAILURE To PRIME BUT MOTOR OPERATES - NO PUMP DISCHARGE. Restricted intake or discharge line.
. Air leak in intake line.
. Punctured pump diaphragm.
. Initial amp supply is not enough to sufficiently start the motor.
. Debris clogged in the valves.
. Crack in pump housing.
LOW FLOW AND PRESSURE
. Air leak at pump intake.
. Accumulation of debris inside pump or plumbing.
. Worn pump bearing (possibly accompanied by loud noise).
. Punctured diaphragm.
. Defective motor
