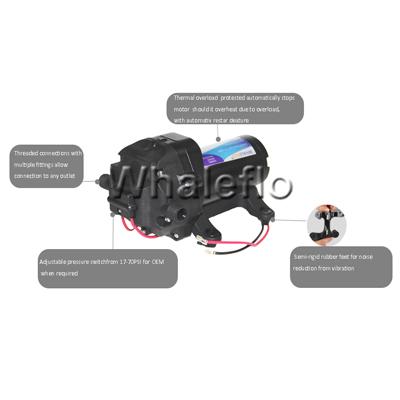

Whaleflo 18.9LPM 70PSI boat washdown pump
Mar 31 , 2020
Marine washdown pump technical data

Open Flow:20LPM/5.50GPM
Volt:12V DC
Amps:6.0a Max.Amps:18A
Pressure:70PSI(4.8Bar)shut-off
1/2"MNPT,12mm staight barbed fittings.
Sel-priming : 1.8M( 6feet)

Capacity of being run dry

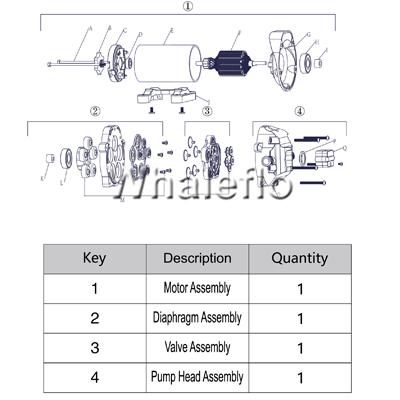

Whaleflo deck wash pump detail parts



Boat washdown pump trouble shooting

MOTOR FAILS TO TURN ON

. Loose or improper wiring .

. Pump circuit has no power.

. Blown fuse,

. Failed pressure switch.

, Defective motor.

PUMP FAILS To TURN OFF AFTER ALL FIXTURES ARE CLOSED. Punctured diaphragm.

. Discharge line leak.

. Defective pressure switch.

. Insufficient voltage.

. Clogged valves in pump head.
