Customized Three-phase DC Submersible Water Pump 2000LPH 3000LPH Lift 7Meters

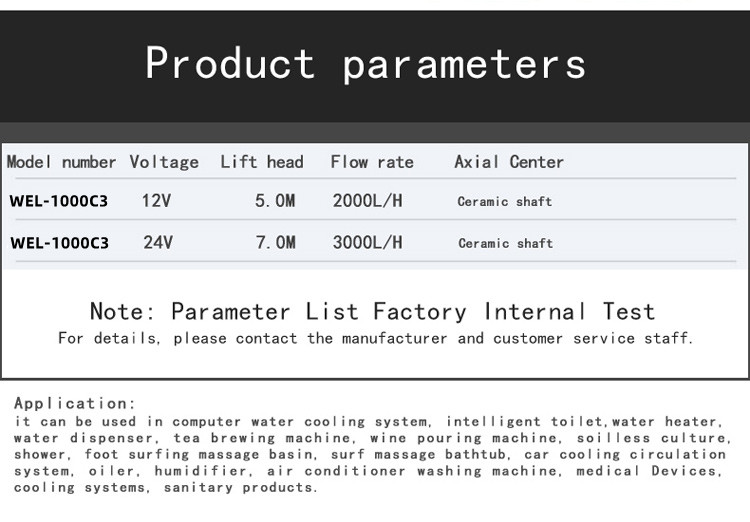

WHALEFLO MICRO FOUNTAIN PUMP SPECIFICATION
| Model | WEL-1000C3-12 | material quality |
PA66+30% glass fibre |
| voltage renge | DC12V/36W | lift | 500CM |
| work noise | less than 38 DB(distance 20CM) | flow | 2000L/H |
| liquid | water,underground water,seawater | temperature | -20~100celsius degree |
| environment dampness | 45%~90% | continuous working time | >20000H |
| motor | brushless motor | usage | submersible/ used on land |
| Model | WEL-1000C3-24 | Material quality | PA66+30 Glass fibre |
| voltage renge | DC24V/84W | lift | 700CM |
| worke noise | less than 35 DB(distance 20CM) | flow | 3000 L/H |
| liquid | water,underground water,seawater | temperature | -20~100celsius degree |
| environment dampness | 45%~90% | continuous working time | >20000H |
| moter | brushless motor | usage | submersible/used on land |
Model Number:WEL-1000C3 dc water pump, dc water pump
1. Voltage renge:DC12V/DC24V
2. Don’t use more than provide voltage.
3. Carrying idler:less than 0.15A
4. Lift : DC12V/500CM; DC24V/700CM
5. Flow: DC12V/2000L/H; DC24V/3000L/H
6. Load electric current:2A
7. Usage:submersible or land
8. Work Noise: :low noise ≤35dB ( Distance20CM)
9. Liquid:water, underwater,seawater
10. Temperature range:-20 ~100 Celsius degree
11. Environment dampness:45%~90%
12. Continue to use life time: more than 20000H
13. Motor:DC brushless Motor
14. Weight: 450G
