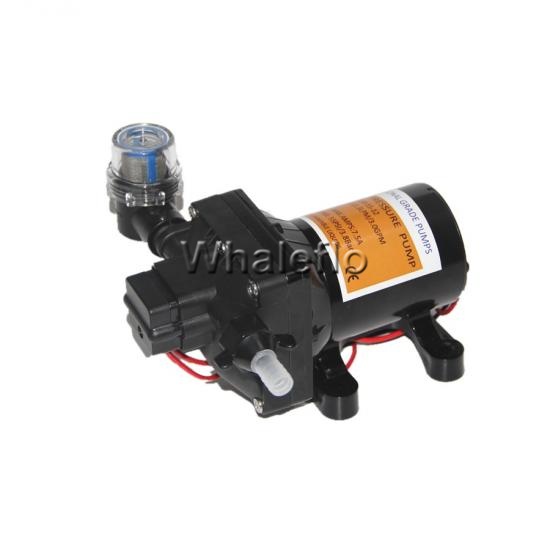

DC 12V 3GPM Marine fresh pressure water pump for RV/Yatch/Boat
12V RV fresh water pump
12V RV fresh water pump Specification
Model:WEL30-55-12
Open Flow:11.3LPM/3.0GPM
Volt:12V DC
Amps:4.0a Max.Amps:7.5A
Press Setting:55PSI/3.88Bar
12V 3GPM boat pressure pump Package Includes:
- 1 x WEL30-55-12 Model Water Pressure Diaphragm Pump
- 1 x Installation Instructions - 2 x 1/2" Barbed Hose Adaptors
- 1 x 50 Mesh Strainer/Filter
| Whaleflo Washdown Pump | |
| Type | 4 Chamber diaphragm pump, self priming |
| Control Type | Pressure switch & By pass control |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 55 PSI : 41 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | QUICK ATTACH |
| Weight | 4.3 lbs (2.0 kg) |
| MOTOR | |
| Leads | 16 AWG, 13" (33 cm) long with 2-Pin connector / Leads |
| Duty Cycle | Intermittent |
| Max.Amp Draw | 7.5 A |
| Fuse | 11.3 A |
Whaleflo RV pressure Pump application
Typical Applications
Agriculture/Yacht / RV/Caravan pressurized water system
* Agricultural Spraying
* General Industrial
* Automotive
* Marine/RV
Technical data
| Model | Volt(V） | Open Flow（LPM/GPM） | Demend Pressure（PSI/Bar） | Amps Draw(A) | Check value | Diaphragm | Ports | Wire connections |
| WEL30-55-12 | 12 | 4.6(1.2) | 60(4.1) | 7.5 | EPDM/VITON | Santoprene | QUICK ATTACH | 2-pin/Leads |
| WEL30-55-24 | 24 | 4.6(1.2) | 60(4.1) | 4.0 | EPDM/VITON | Santoprene | QUICK ATTACH | 2-pin/Leads |
