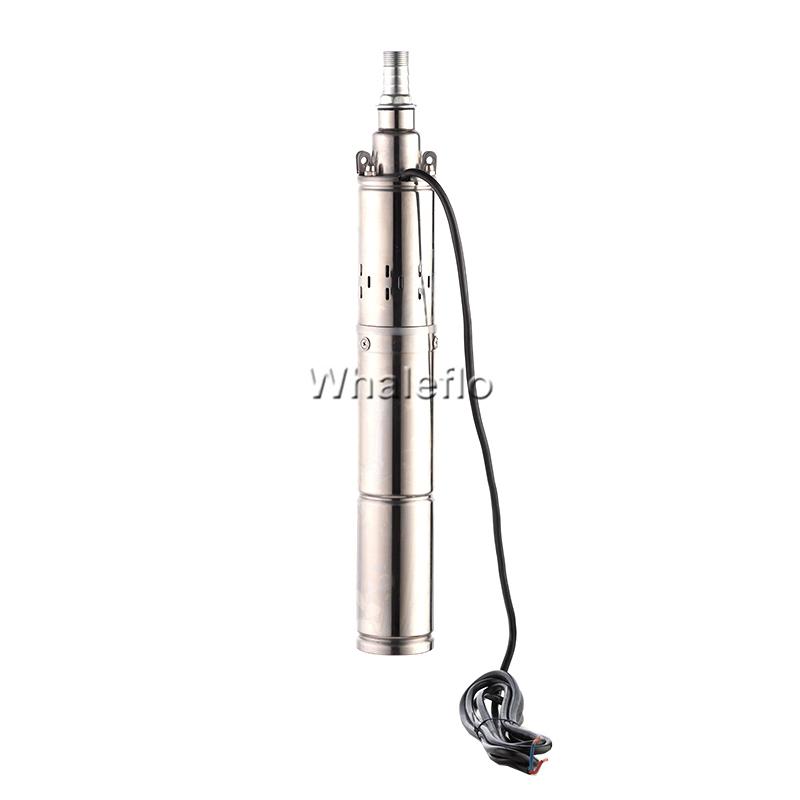

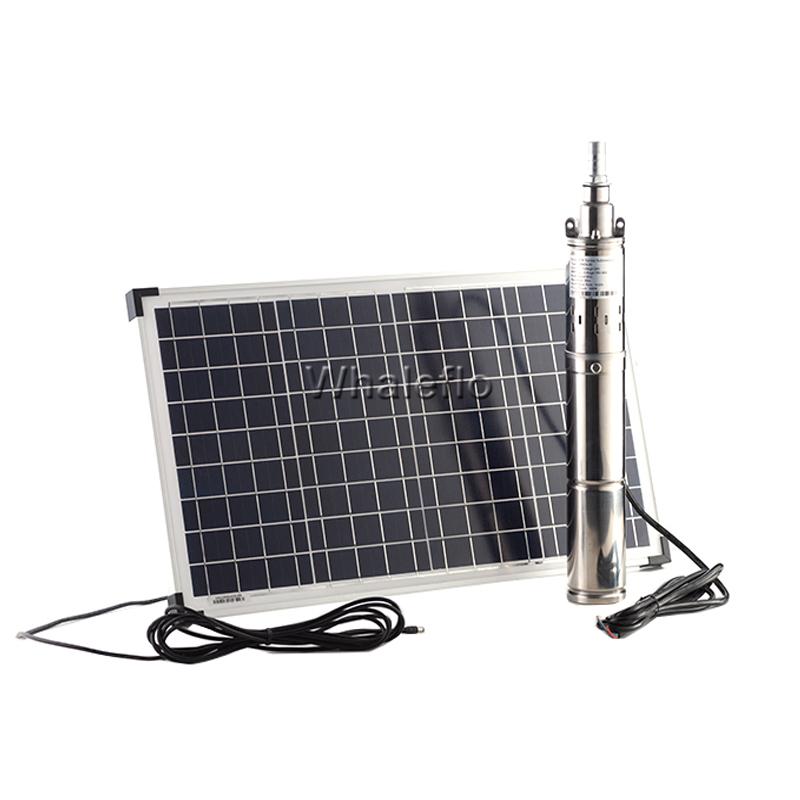

High competitive 36V 2000LPH head 70M 300W solar screw submersible solar pump brushless solar powered pump

High competitive 36V 2000LPH head 70M 300W solar screw submersible solar pump brushless solar powered pump

Application:

* Livestock watering

* Drinking water & domestic water supply

* Pond management & small water works

* Irrigation systems

* Responsible Leisure

* Groundwater lowering

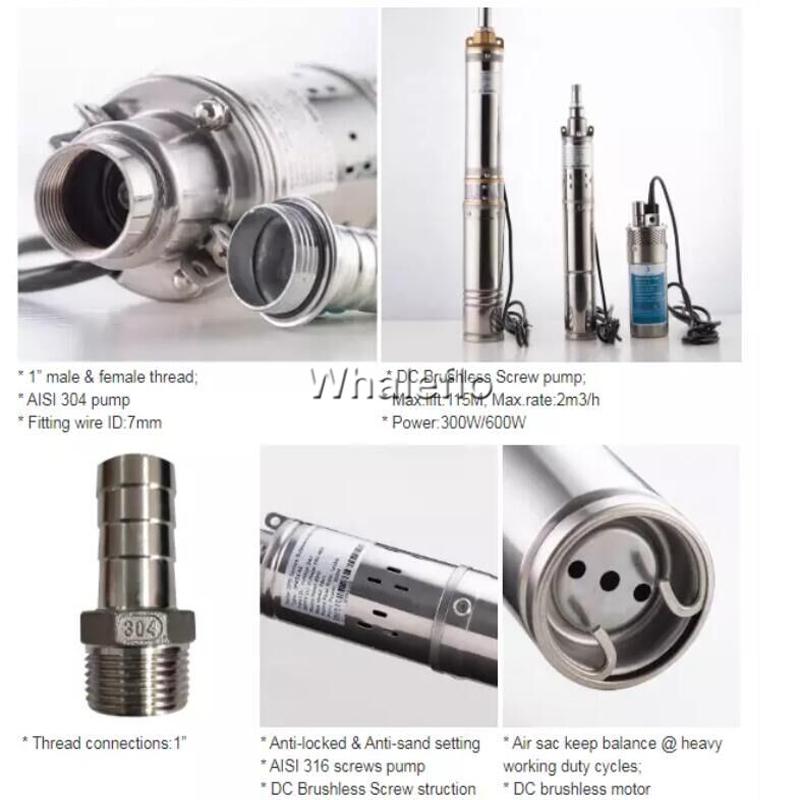

Feature:

* Unique 3" design,

* Wide voltage window

* Overload protection

* Over & undervoltage protection,thermal protection setting.

* Stainless steel components provide long service life

* Fast & simple installation with inner controller & MPPT.

* Automatic restart

* Maintenance Free with DC Brushless Permanent magnet motors

* Dry -running with extra float switch

* Special design low speed starting motor for solar powered system,high energy efficiency.

Technical data:

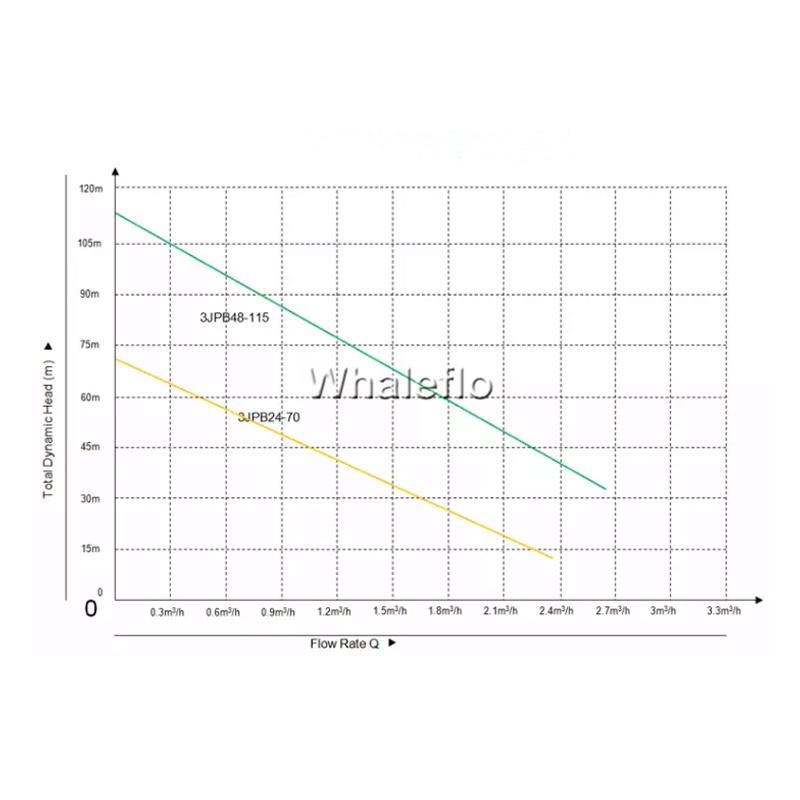

* Performance range: Flow up to 2m3/hour

* Head upto 115m

* Wide voltage 24VDC:18-48V; 48VDC:36V-96V

* Frenqucy range:1-50HZ@ Max.Amp 16A

* Soft start low amp @0.5A motor speed 10RPM-2800RPM,

* Max.acceptalbe media temp:70°C

* Pump Diameter:76mm

* DC Brushless Permanent magnet motors life:18000hours

* Net weight:4.25kgs; Gross weight:5.5kgs

* Thread connections:1"

* Materials Stainless steel AISI 304

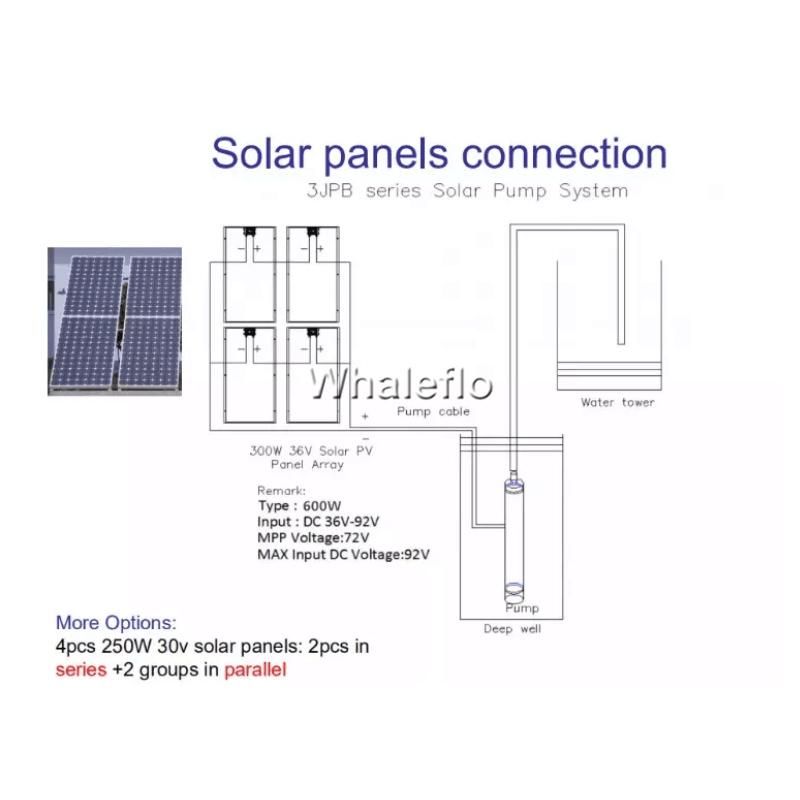

* Same power solar panels start work,recommend solar panels of 1.3-1.5times @ Max.lift & flow.

* JPB series submersible pump can be installed vertically or horizontally

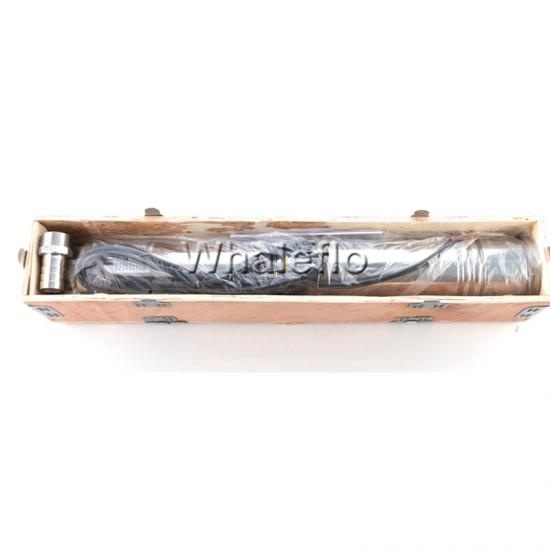

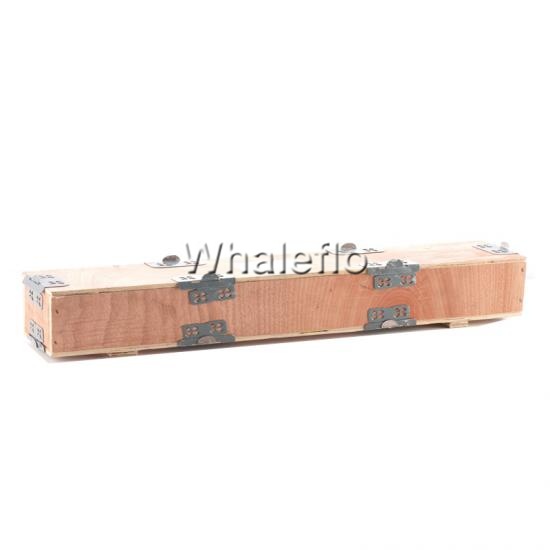

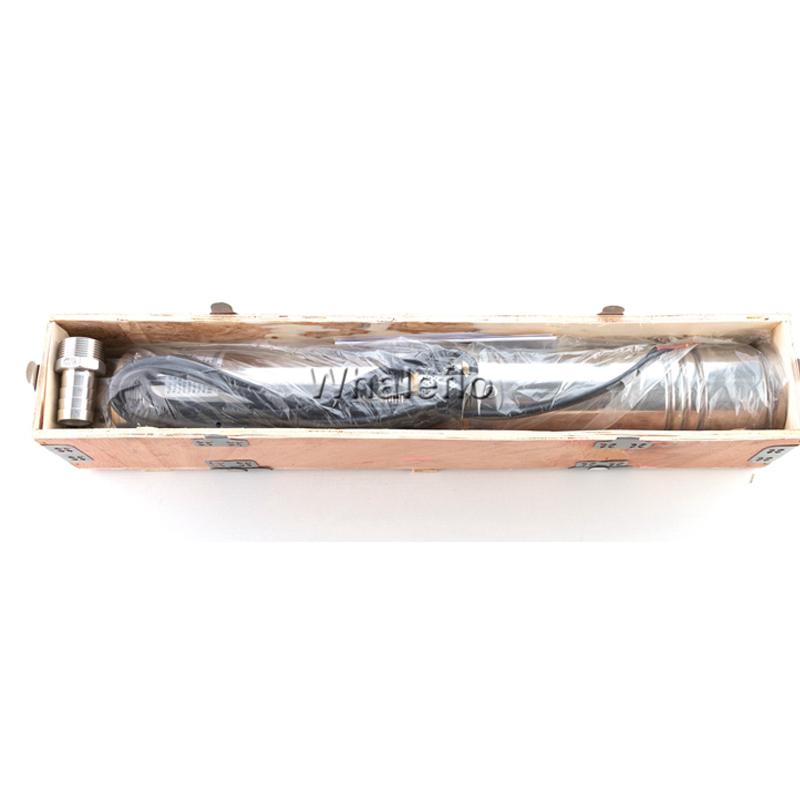

* Package: wooden case size:54.5*10.5*10.5cm
