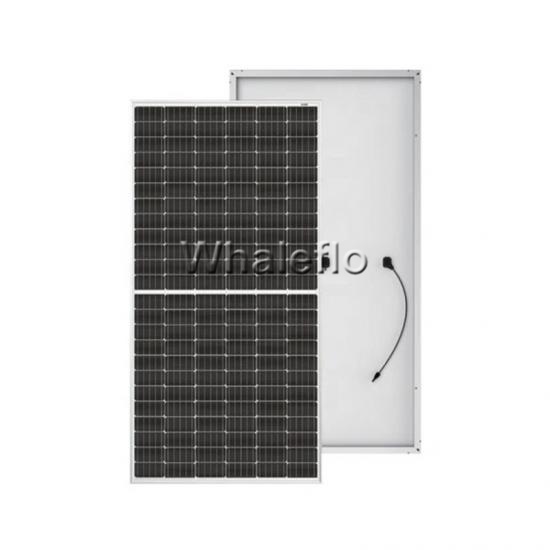

Mono 182mm Half-Cut Cells Solar Panels - 144 Cells 540W
Assembled with multi-busbar PERC cells, the half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk

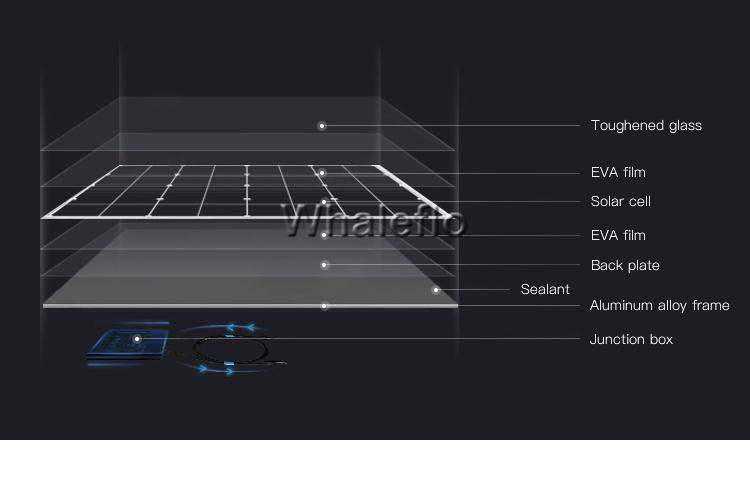

Our solar panel series modules consist of mono-crystalline high efficient silicon cells.which are individually characterized and electronically matched before interconnection and laminated with toughened glass,EVA&Back sheet of high quality.After assembled with anodized aluminum alloy frame, cable and junction box with MC4 connectors,solar folding modules can be carried everywhere easily and work for a long period At the same time.they can withstand the storm.strong wind and hail impact.etc.

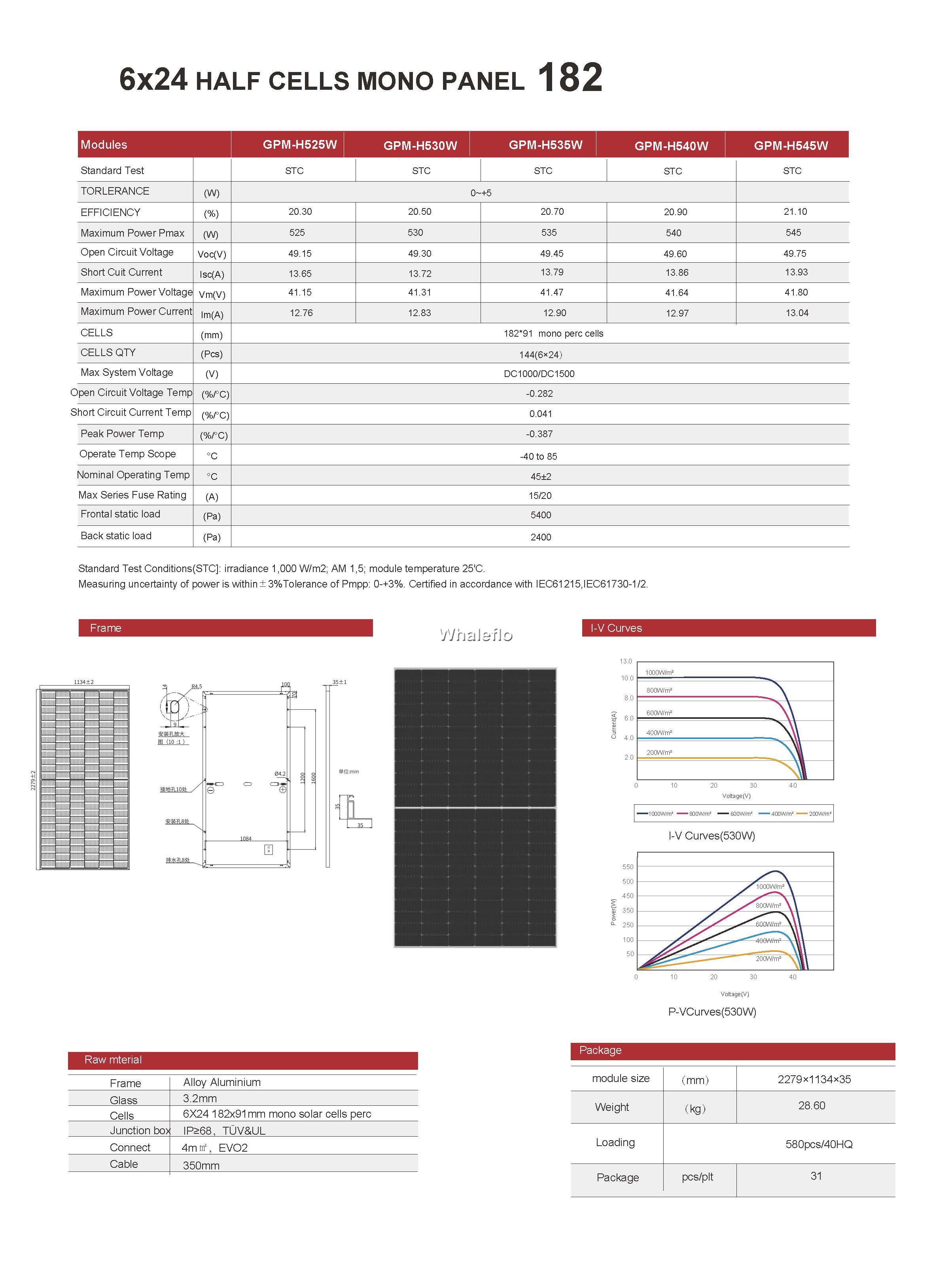

Technical data
· Model Number:Half-cut cells module 540W
· Material:Monocrystalline Silicon
· Max. Power:540Wp
· Size:2279*1134*35mm
· Module Efficiency:20%-21%
· Junction Box:≥IP68 waterproof
· Color:black and silver
· Solar Cell:Grade A solar cell
· EVA:Anti-aging & high visosity EVA °ree of crosslinking above 85%
· Glass:3.2mm High transmission rate and low iron tempered glass
· Back Sheet:high frame resistant & Double-sided fluorine TPT

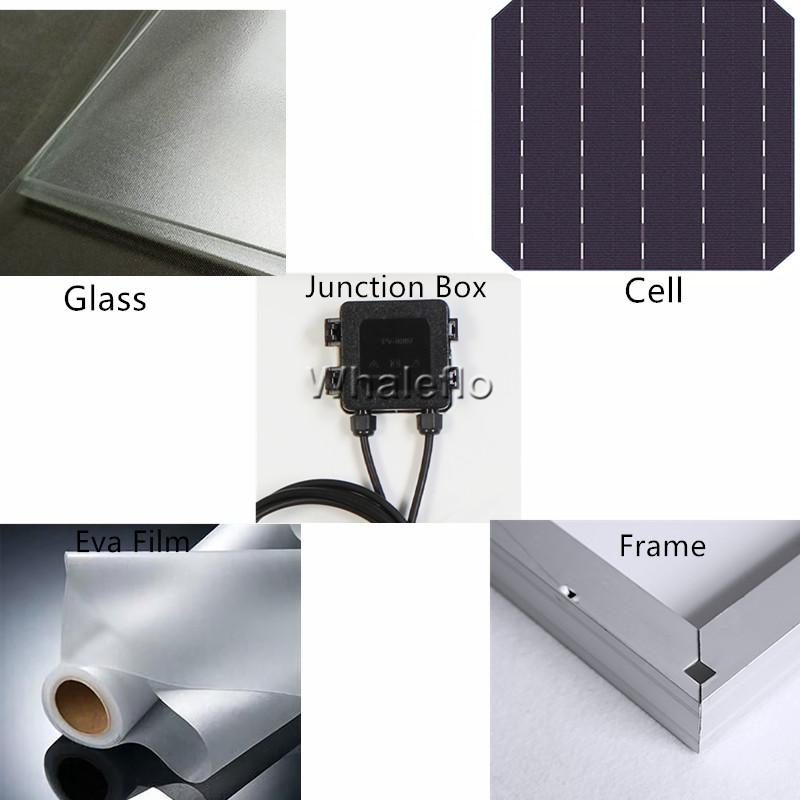

Products details
Glass
Antireflective glass
Translucency of normal luminance is increased by 2%
Module efficiency is increased by 2%
Self-cleaning function
Service life is as long as 25 years (30 years optional)
Solar Cell
High Efficiency PV Cells
Appearance Consistency
Color sorting ensure consistent appearance on each module
Anti-PID
Junction Box
Conventional standalone ediction and engineering custom edition
Quality diode ensures module running safety
IP67 protection level
Heat dissipation
Long service life
EVA Film
Light transimittance more than 92%
UV resistance against ageing
Frame
Conventional frame
Silver or black frames are optional
Boost bearing capability and prolong service life
Serrated-clip design tensile strength
Seal-lip designglue injection

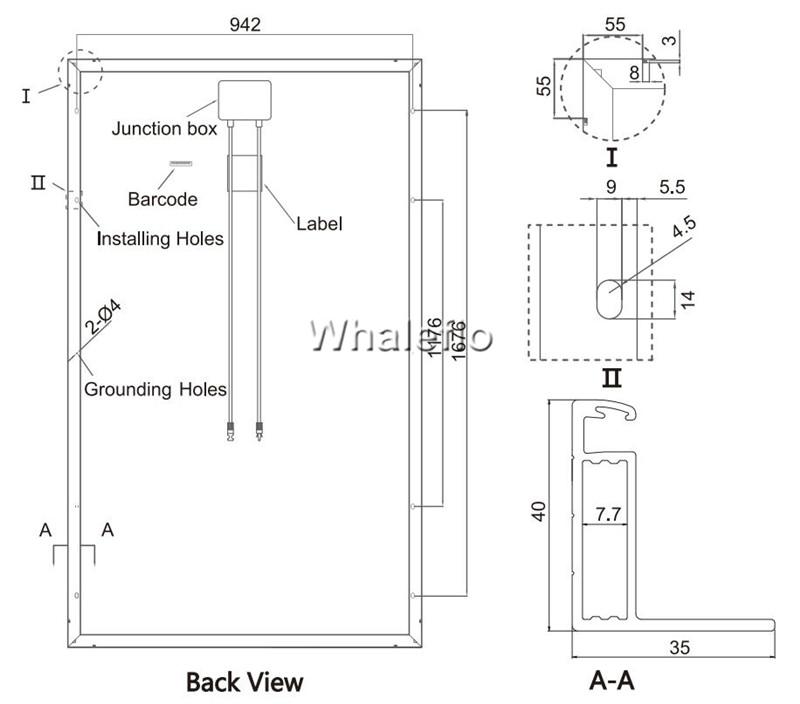

Mono-crystalline PV Product Dimensions
Application
(a)Solar water heating
(b) Solar heating of buildings
(c) Solar distillation
(d) Solar pumping
(e) Solar drying of agricultural and animal products
(f) Solar cooking
(g) Solar electric power generation
(h) Solar thermal power production
(i) Solar green houses.
