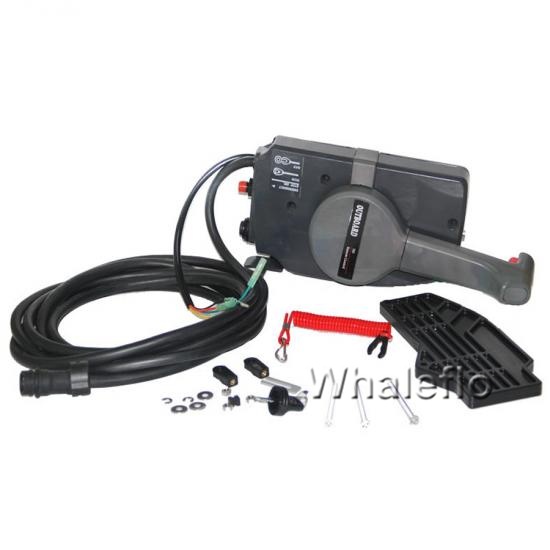

Outboard Engine 703 Yamaha Remote control box 703-48230 7pin push pull
OEM Yamaha 703 remote control box
EM YAMAHA REMOTE CONTROL BOX 703-4823 series
Item Description:
-Power trim/tilt switch
-Lockable neutral position
-Safety lanyard
-Easy to use fast idle lever for quick warm-up
-Key switch for security
-Forward/reverse lever
-Oil and overheat warning (selected models)
-Two keys,safety lanyard and mounting fittings are all included

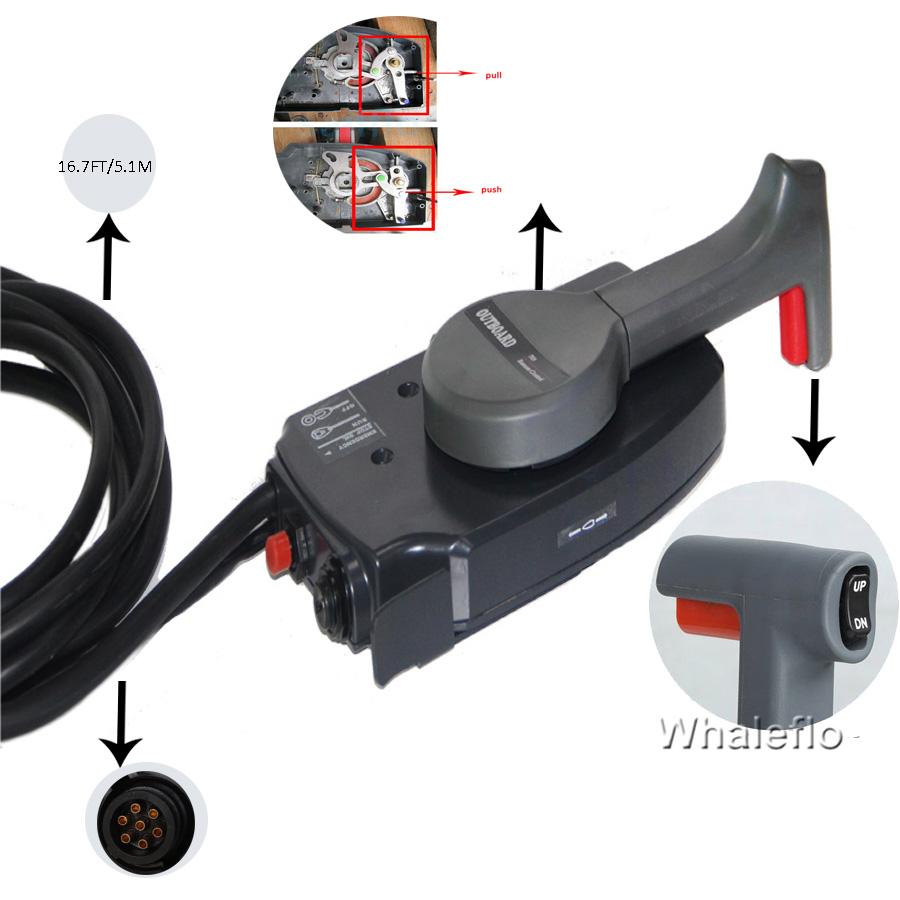

-Push to open throttle action
-7 Pin wire harness (16.4ft)
| Model | Standard wiring: | Description | Engine Suit | ||||||
| 703-48205-16-P | 16Ft | 10 Pins push to open | All electric start 30-200hp 4 stroke, 40hp and above 2 strokes. | ||||||
| 703-48272-12-00 | 16Ft | 10 Pins pull to open | |||||||
| 688-8258A-10-00 | 6.5-10Ft | Main Wiring harness extension mbly: | |||||||
| 703-48230-14-P | 16Ft | 7 Pins push to open | All electric start 30-200hp 4 stroke, 40hp and above 2 strokes. | ||||||
| 703-48230-12-00 | 16Ft | 7 Pins pull to open | |||||||
| 703-48207-21 | 16Ft | 10 Pins push to open new style | All electric start 30-200hp 4 stroke, 40hp and above 2 strokes. | ||||||
| 703-48207-11 | 16Ft | 10 Pins pull to open new style | |||||||
| 703-48230-14-20 | No | Push to open | |||||||
| 703-48230-12-20 | No |
Pull to open |
|||||||
Replace
This 7 pin remote control box replaces Yamaha 703-48230-14-00 703-48203-15 703-48203-17 703-48203-15
ApplicationThis 7 pin remote control box fits these Honda outboard motors:
2001 25MSHZ3 REMOTE CONTROL ASSY 1
2001 25MSHZ3 REMOTE CONTROL BOX
2001 30ELHZ REMOTE CONTROL ASSY 1
2001 30ELHZ REMOTE CONTROL BOX
2001 30ELRZ REMOTE CONTROL ASSY 1
2001 30ELRZ REMOTE CONTROL BOX
2001 30MLHZ REMOTE CONTROL ASSY 1
2001 30MLHZ REMOTE CONTROL BOX
2001 30MSHZ REMOTE CONTROL ASSY 1
2001 30MSHZ REMOTE CONTROL BOX
