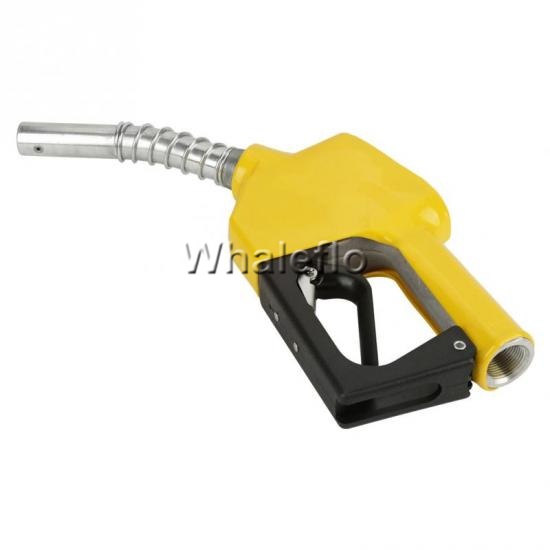

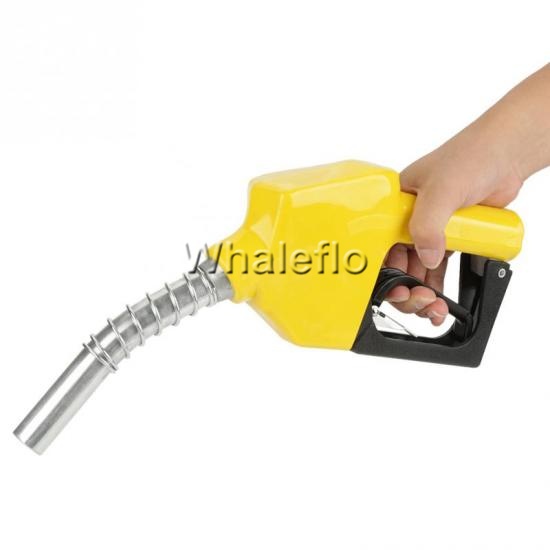

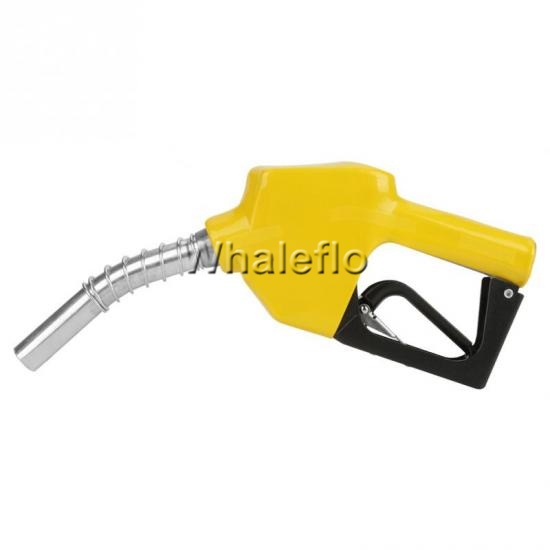

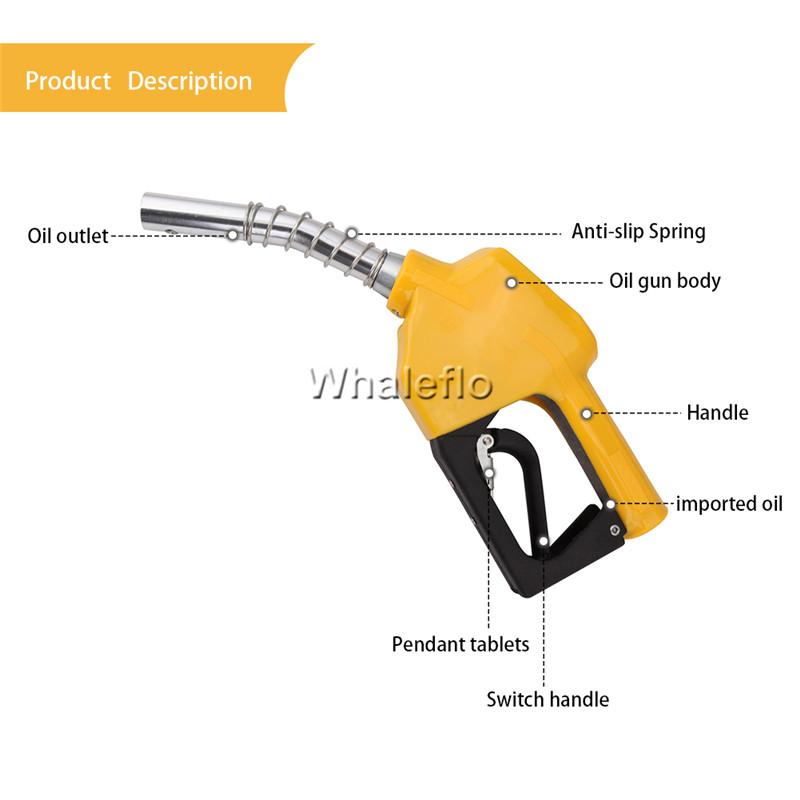

Whaleflo 19mm Diesel Oil Fuel Auto Delivery Nozzle Manufacturer

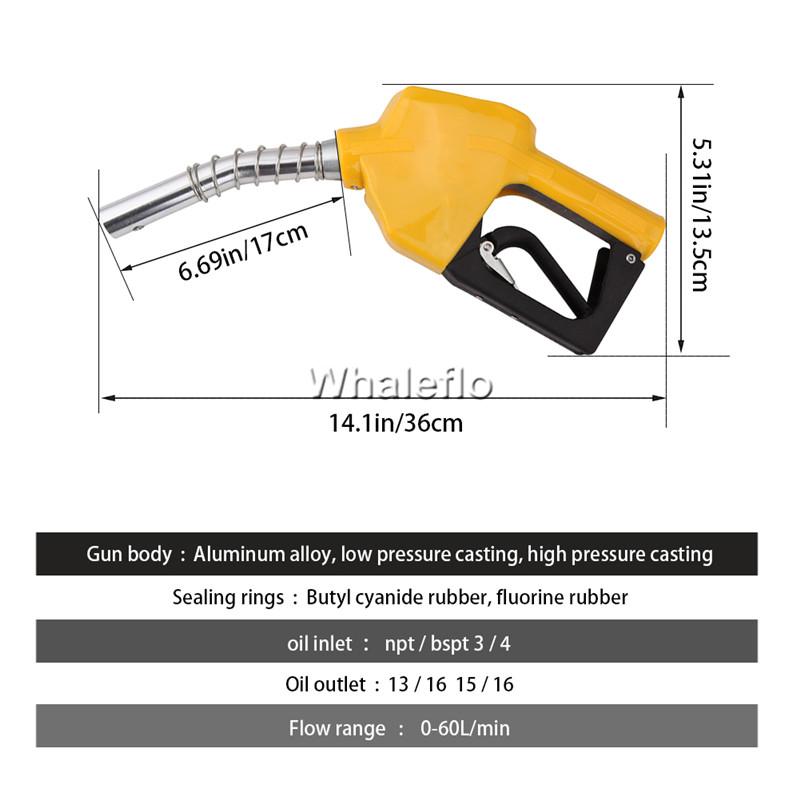

Specification:
Oil inlet: NPT3/4", BSPT3/4".
Oil outlet: 19mm
Flux range: 0-60L/min
Nominal pressure: 0.18MPa.
Self sealing time: 0.1s (max).
Material:aluminum
Seals:Buna-N, biton
Main stem seals:viton cased oil seal / graphite with Teflon
Main stem:stainless steel
Features:

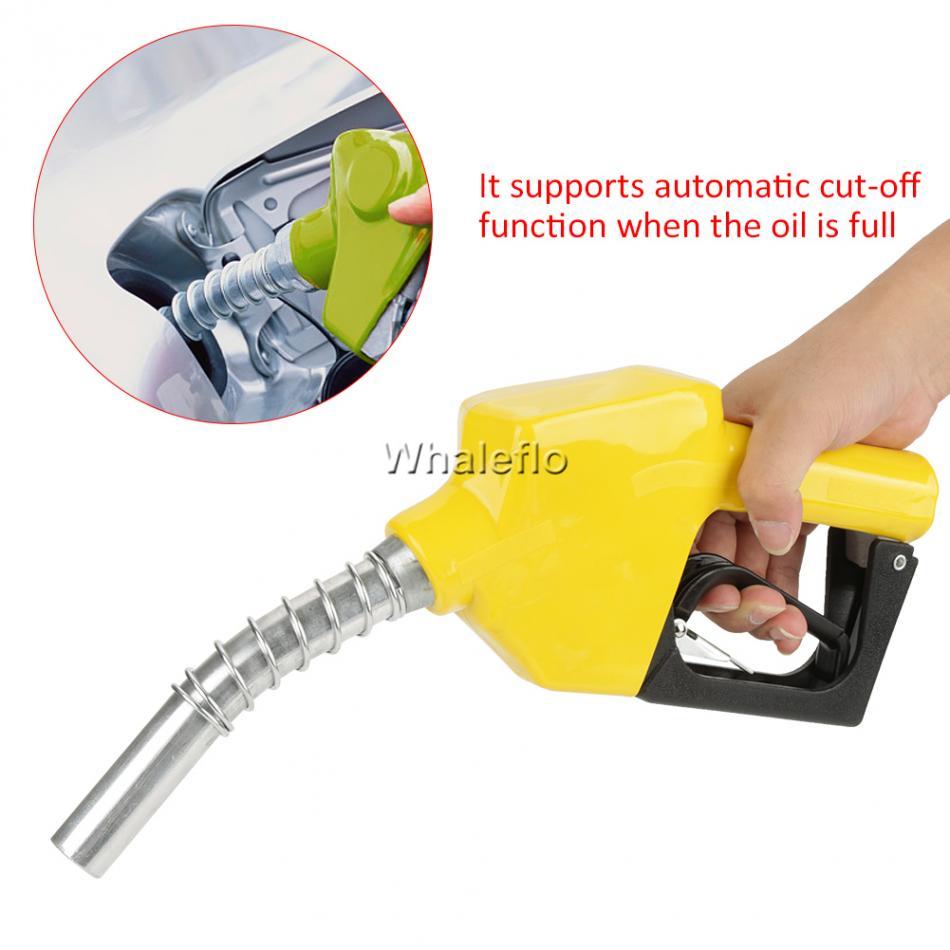

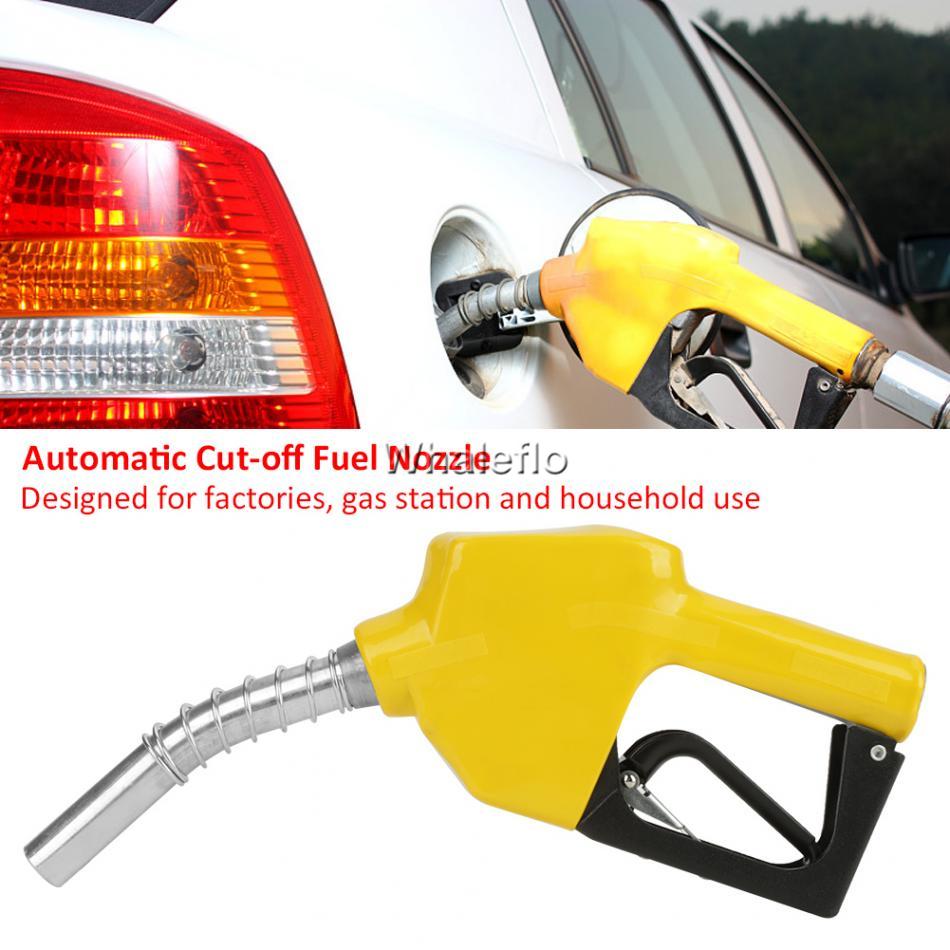

Automatic nozzles for diesel, kerosene and all kinds of gasoline service.
Easily replaced spout simply removes the screw
Spout kits available
Low-profile aluminum body: Light weight, easier to handle, provides an attractive, image-enhancing appearance
Vacuum design: Back-sealing design
Selective casting process of body
Sand casting technique or high-pressure casting
Technique. High-pressure casting technique can reduce diesel foaming and static electricity
Hold-open rack is available for full service applications
One-hand control means easy setting to flow rate for customer's convenience
Full hand insulator protects both nozzle and vehicle, and insulates user's hands
Available colors: Color chart on inside back cover
Selective splash guard
100% factory tested
| Model | 11A-19mm | 11A-24mm | 11A-32MM |
| Flow | 0-60Liter/min |
0-60Liter/min |
0-120Liter/min |
| inlet size | NPT3/4", BSPT3/4" | NPT3/4", BSPT3/4" | NPT1",BSPT 1" |
| outlet size | 19mm | 24mm | 32MM |
| Application liquid |
Diesel, gasoline, kerosene, methanol |
Diesel, gasoline, kerosene, methanol |
Diesel, gasoline, kerosene, methanol |
| Material |
Aluminum alloy |
Aluminum alloy |
|
