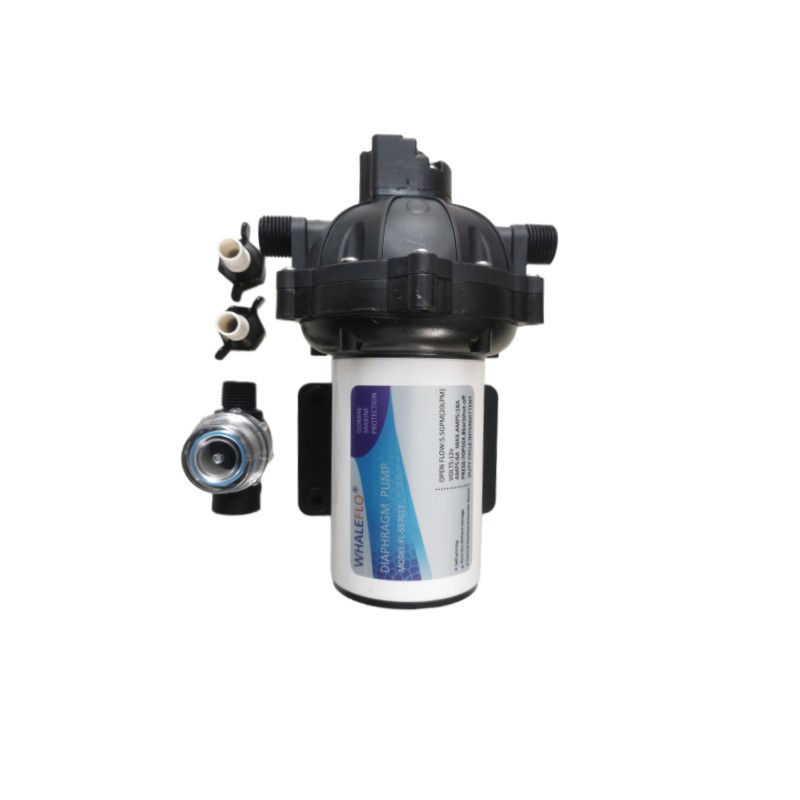

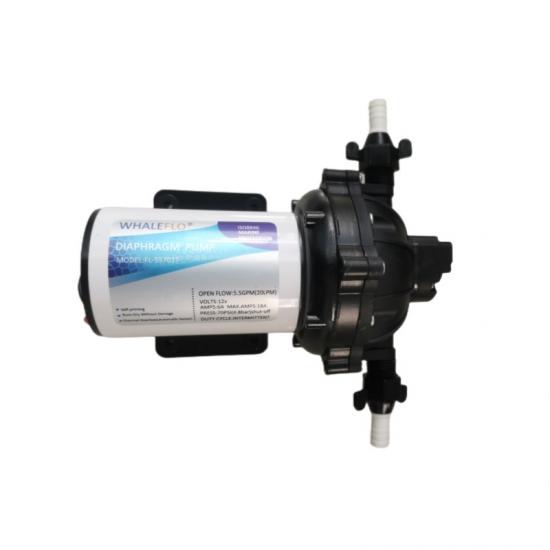

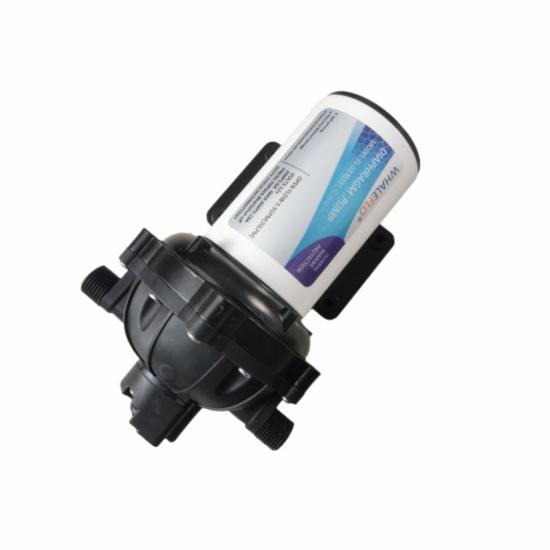

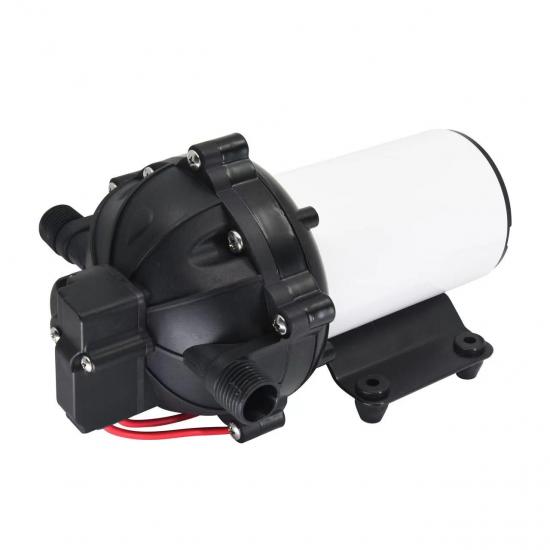

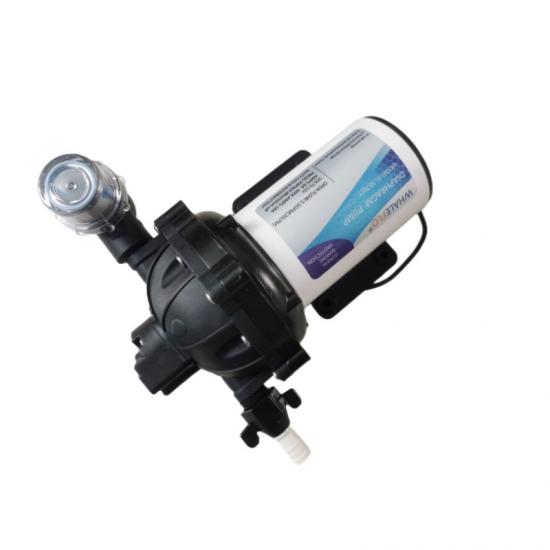

Whaleflo New Design 12V 24V 5.0GPM 70PSI On Demand Pressure Self Priming Marine Washdown Pump
12V DC Washdown Pump
Specification
Model:WEL-55701T
Open Flow:20LPM/5.50GPM
Volt:12V DC/24V is avilable
Amps:8.0a Max.Amps:18A
Pressure:70PSI(4.8Bar)shut-off
Motor: DC permanent magnet motor;
Eccentric: 11.6LPM with No. 2 eccentric; 15.1LPM with No. 3 eccentric; conventional 20.8LPM with No. 4 eccentric
Switch: Pressure controller switch. Working principle: The controller sets a certain pressure value, the working medium directly acts on the metal diaphragm, and the controller is disconnected through the deformation of the metal diaphragm.
Input voltage: DC12V/DC24V
Pressure cut-off range: 58-70PSI Pressure start range: 18-25PSI
Optional flow range: 11.6LPM, 15LPM, 17LPM, 20.8LPM
Supporting feet: Iron plate feet.
Rated power: 180W .MAX
Water pump connection: 1/2” 14MNPT.
Working mode: Intermittent work.
Cooling method: natural cooling.
Relevant certification: CE ; ROHS.
Features include:
Completely sealed motor.
Self-priming height up to 1.2m.
Maximum inlet pressure: max. 30PSI (2.1Bar).
Fluid temperature: MAX.140°F (℉) 60°C (℃)
Using pressure controller switch, 1, accurate pressure control, stable performance
2、Good sealing performance of the switch, waterproof, dustproof and accessible to seawater
3, low starting pressure, can avoid frequent pump start, burn the pump
4、Good heat dissipation, the switch is in direct contact with the working medium, the flowing working medium can play a cooling role to avoid the switch from heating up and burning out.
5 Long life, the normal switch start/stop life is 60,000 to 80,000 times, the controller switch can reach more than 100,000 times
| WEL55701 | 12v | 20.8LPM | 70psi/4.8bar | 17.5A |
| WEL55702 | 24V | 20.8LPM | 70psi/4.8bar | 10.0A |
Whaleflo Pump application
Suitable for cleaning boats, fish tanks, anchor wells, boats
Ocean, yacht, boat and RV, camper, caravan flushing application
Suitable for use with fresh and salt water
