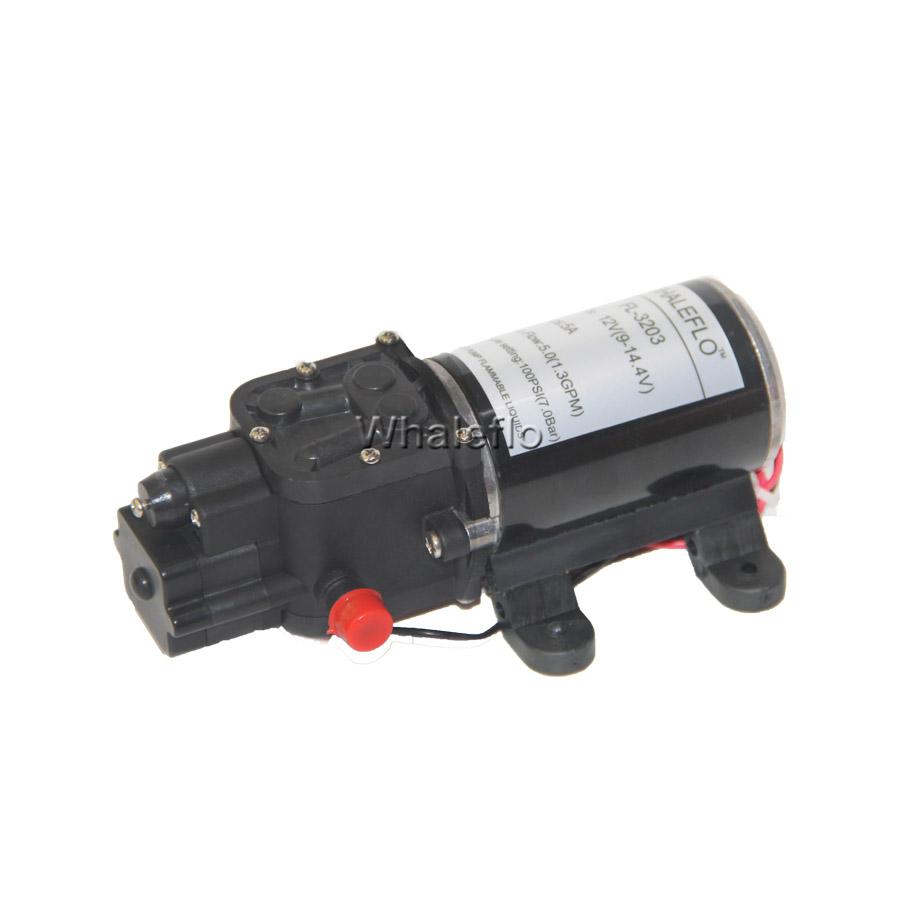

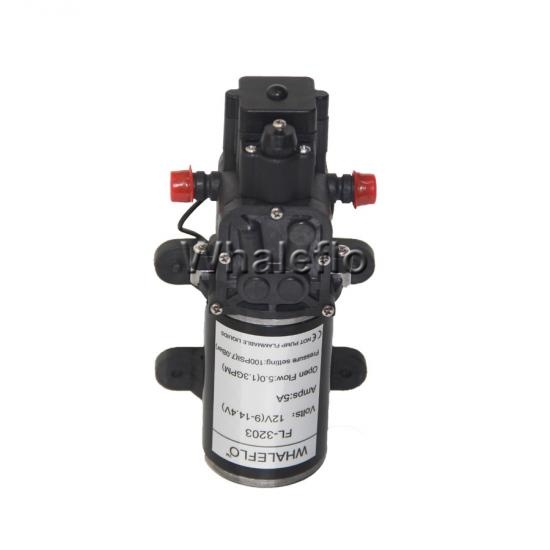

12V 6LPM Small Electric High Pressure Car Washing Pump
Product Description
1. This diaphragm pressure pump is ideal for any area that requires water delivery. Ideal for caravans, boats, RVs and camping.
2. Easy to operate and self-priming.
3.Suitable for camping, camping, boating, lakes, showers and other purposes
4. Compact and lightweight, easy to install.
5. CE certification/Rohs Report - with 1 year warranty.
6. If you have a gas water heater, we strongly recommend that you purchase this pump!
7. There are arrows on the pump that represent the direction of the water flow. the right side of the pump port is the water outlet and the left side is the water inlet.
Features
Adjustable pressure switch for OEM,Max pressure can be 110psi.
Thead or Hose connections with multiple fitting allow connection to any outlet.
Motors sounds no lounder than your room fan running.
Rubber Feet for noise reduction from vibration.
Technical Date
Pump design:2 Chambwer Diaphragm
Port size:3/8"(9.5mm) hose barb,1/2"(12.5mm）BSPT Male Thread 12.5mm
Voltage:12V/24V
Check Valuve:EPDM or Viton
Liquid Temp:140°F（60°C）Maximun
Self-Priming:4.8feet(1.5M)suction
| Item number | Volt | Max Flow | Max Pressure Psi/bar | Amps(a) | N.W/G.W |
| FL-3202 | 12v dc | 5.1lpm(1.34gpm) | 80 | 4.8 | 1.12/1.22 |
| FL-3402 | 24v dc | 5.1lpm(1.34gpm) | 80 | 2.8 |
1.12/1.22 |
| FL-3203 | 12v dc | 5.1lpm(1.34gpm) | 100 | 5.0 |
1.12/1.22 |
| FL-3403 | 24v dc | 5.1lpm(1.34gpm) | 100 | 3.0 |
1.12/1.22 |
| FL-3206 | 12v dc | 6.0lpm(1.58gpm) | 60 | 6.0 |
1.12/1.22 |
