Self-priming 12V Oil Scavenge diesel transfer gear fuel pump 3.2GPM for marine
Gear Pump technical data

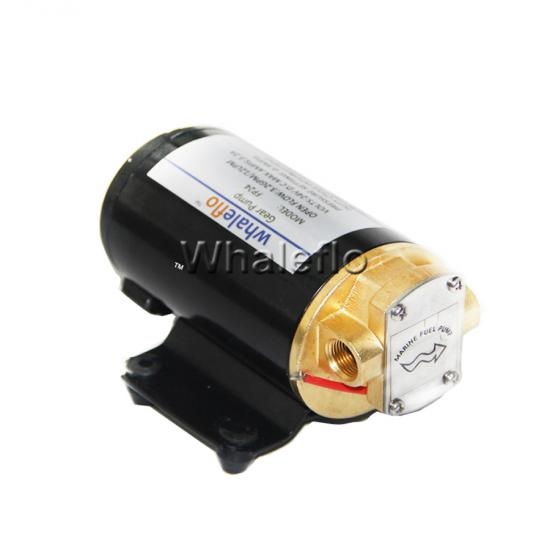

12V Gear Pump
3.2GPH (12LPM)bilge pump with 2 year warranty
3/8'' female,1/2'' barbed fitting
12V & 24V with 5 feet head

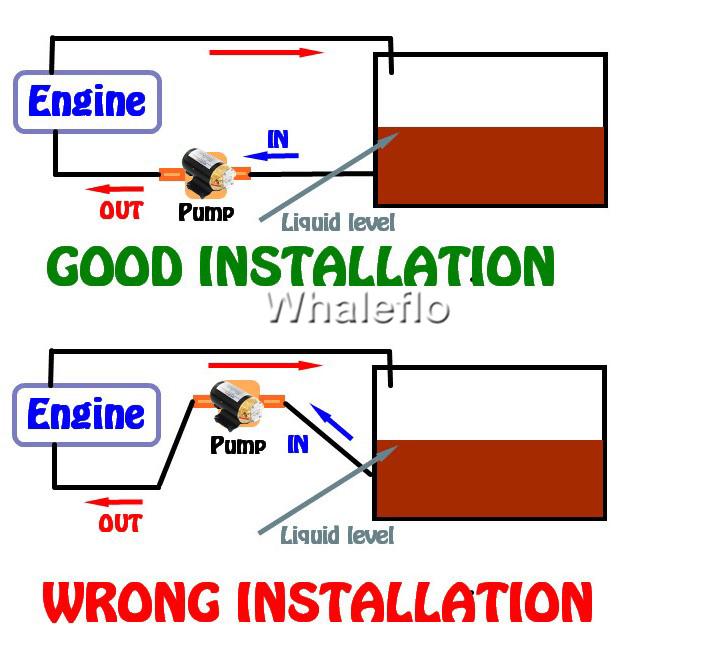

DO NOT RUN DRY
Working intermittent

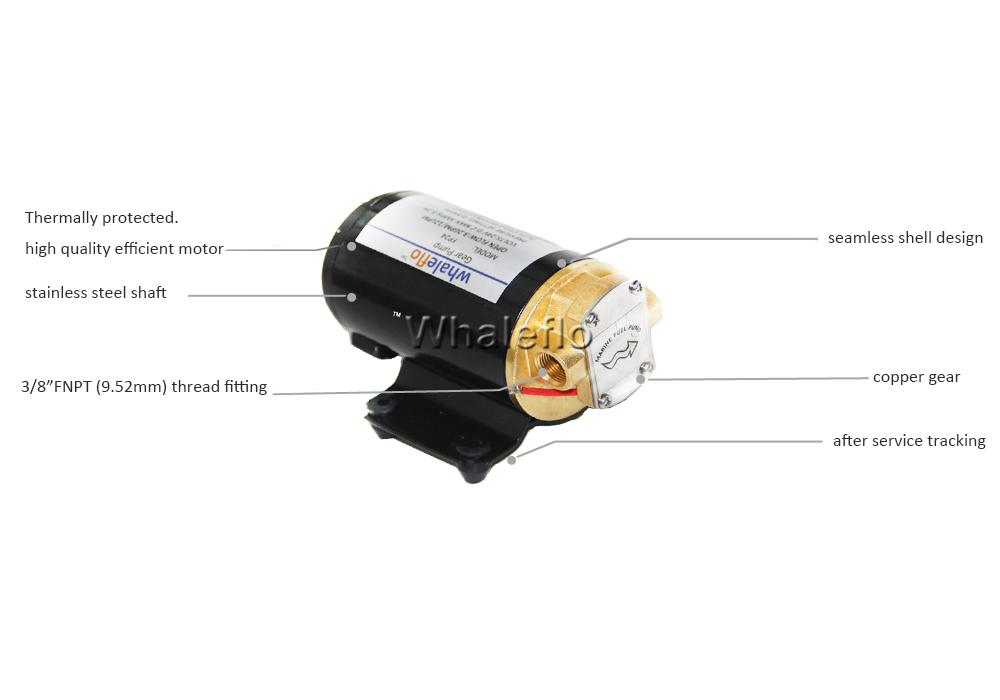

Pump Advantage
Self-priming ability with corrosion resistance mounts pump body.
Stainless deal basing on fluoroelastomer lip seal motor
All bronze shaft
Whaleflo 12V gear pump application
marine application, caravans/RV, automotive, car, tuning, boat oil transfer, yacht, draining of engine sumps and agriculture applications， Designed for continous use，Shipboard systems，Power transmissions systems，Conveyor systems，Generator systems，compressors，CNC machinery，Forming machinery，Lubricant Cooling Systems，Differential Transmission Oil Cooler
Remark Detail,
Allowed liquids，
FRESH WATER,SALT WATER,ENGINE OIL (max temperature 90°C)
LUBRICANTS,AND NON-CORROSIVE VISCOUS LIQUIDS, max,viscousity 85 cst,DIESEL FUEL
NOT Allowed liquids
PETROL (GASOLINE),FLAMMABLE LIQUIDS with PM < 55°C,FOODSTUFF LIQUIDS,CORROSIVE CHEMICAL,SOLVENTS
Technical data & drawing
| Model | Volt | Flow rate | Max Lift | Amps(A) | Max Draw(A) | Packing size(mm) | N.W/G.W(kgs) | |
| FP-12 | 12Vdc | 14LPM | 3M | 6A | 10A | 215*135*110 | 2.48/2.68 | |
| FP-24 | 24Vdc | 14PLM | 3M | 4A | 6A | 215*135*110 | 2.45/2.68 | |
| Key | Description | Quantity |
| 1 |
Screw 1 |
1 |
| 2 |
Gear Cover |
1 |
| 3 |
seal |
1 |
| 4 |
Gear |
2 |
| 5 |
Gear Fixed Shaft |
1 |
| 6 |
Gear Retainer |
1 |
| 7 |
Quick Attach |
2 |
| 8 |
Pump Head |
1 |
| 9 |
Oil Seal |
1 |
| 10 |
Motor |
1 |
| 11 |
Motor Base |
1 |
| 12 |
Rubber Foot |
4 |
| 13 |
Screw 2 |
2 |
