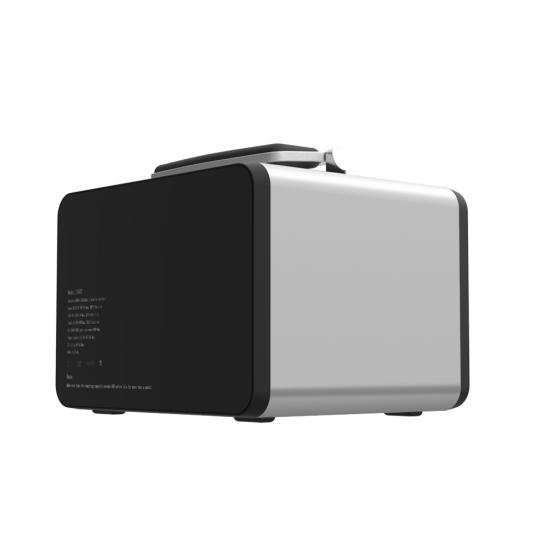

14.8V 500W Portable Power Station Lithium-ion Outdoor 12V RV Camping Solar Charging Integrated Battery Power Supply UA500
outdoor energency power supply specification:
14.8V 500.24Wh
Inverter: 500W
A grade Li-ion18650-2600, 4S13P

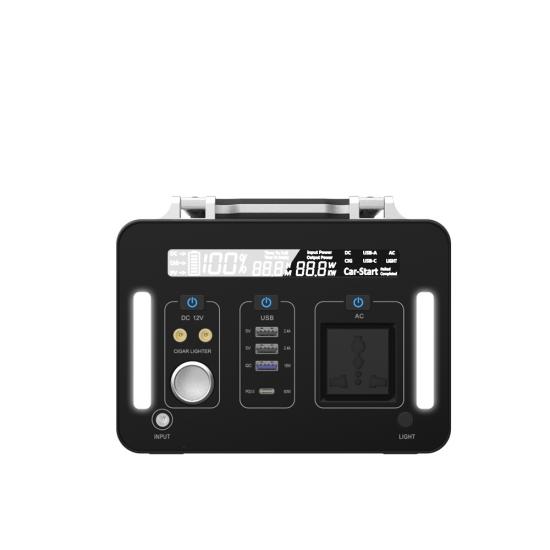

Output: Type C, USB, AC, DC.
Input: DC, Type C, Solar panel, Grid.
Dimension: 200*176*146mm
Weight: 5.9KG
LED Lighting: 4 models.
20GP：1003 pcs
40GP：2667 pcs
40HQ：2968 pcs
Socket: Universal, US,CN, EN, AU
The product can power most products below AC500W, PD3.0 is compatible with all major fast charging protocols, and the power is up to 60W. The car cigarette lighter complies with the standard safety regulations, and can power car equipment.
| Model | UA299 | UA500 | UA1000 |
| Built-in Battery |
299.52Wh (83200mAh /3.7V) |
500Wh (135200mAh/3.7V） |
1000Wh (280800mAh/3.7V) |
| Rated output power | 300W | 500W | 1000W |
| Product Size(mm) | 200*142*146mm | 200*176*146mm | 200*294*146mm |
| Product Weight(kg) | 3.8KG | 5.9KG | 9.9KG |
| Charging Time | 4.2H | 6H |
12H |
| DC Input Charging | AC TO DC（19~24V/5A）Adapter |
|---|---|
| Solar Panel Input | 18~23V/5A Max |
| CAR Input Charging | 12~15V/8A Max |
| USB-C | PD3.0 5-20V 60W Max |
| Output waveform | Pure sine wave |
| Output rated voltage | 100V(95 ~ 115V) / 220V(215 ~ 225V) |
| Output rated frequency | 50Hz/60Hz±3HZ |
| DC Output |
2xDC output 13V±5%V/5A(max12A±10%) (DC5521) 1xCigarette Lighter:13V±5%V/10A(max12A±10%) |
| USB Output |
1 x USB QC3.0; 2 x USB 5V2.4A 1 x USB-C 5~20V/3A(PD3.0) |
| Inverter efficiency (70% load) | >90% |
| Bulb Type | 5W LED Long bright, SOS, burst flash7 |
| Display | LCD Display |
| Cooling method | Aluminum chassis heat dissipation and natural cooling (without fan design) |
| Operation temperature |
Charging: 0℃~45℃ Discharge: -10℃~45℃ |
| Multi-Protections |
Short-circuit protection Over-current protection Over-voltage protection Low-voltage protection Over-load Protection Over-temperature protection |
