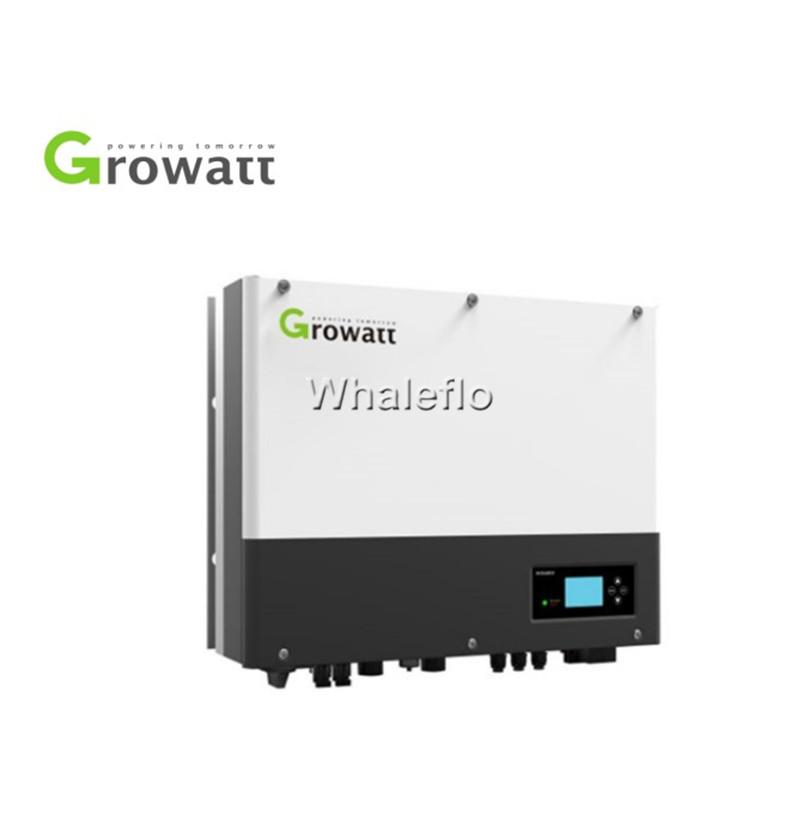

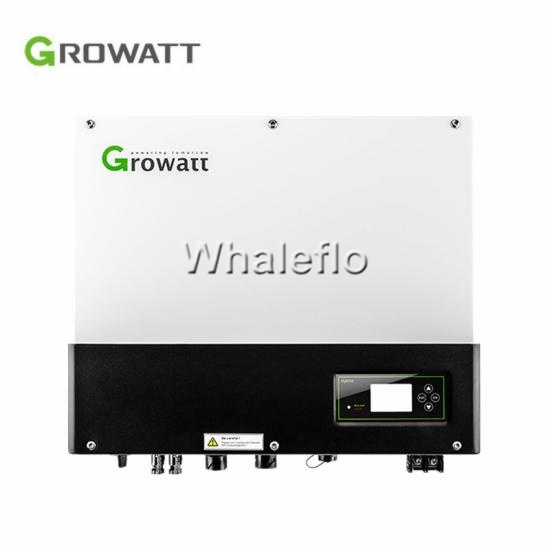

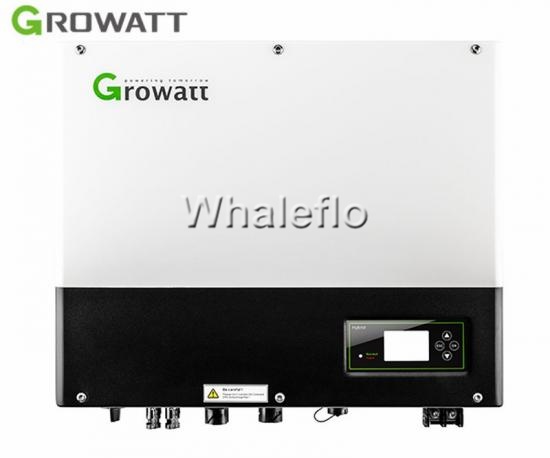

Growatt Direct single-phase Hybrid Inverter SPH5000 3kW-6kW Hybrid 2 MPPTs Low Voltage Battery

ideal for new installation and retrofit exist solar system

  • Product Origin:

    China

  • Item NO.:

    SPH5000

  • Shipping Port:

    Xiamen,Shanghai,Qingdao,Ningbo,Shenzhen,Guangzhou Port

  • Lead Time:

    15-40working days

  • Payment:

    T/T,Paypal,Western Union Transfer

  • MOQ:

    50pcs
Inquiry now

Categories

Hot Products

Products Description

Growatt Direct single-phase Hybrid Inverter SPH5000 3kW-6kW Hybrid 2 MPPTs Low Voltage Battery

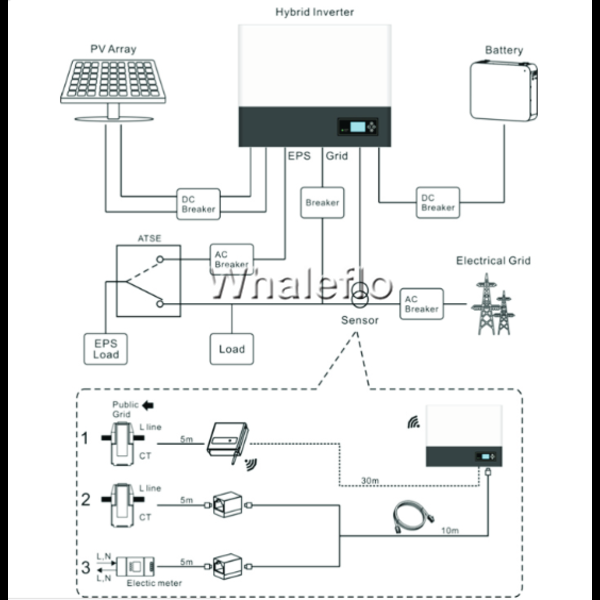

Single phase hybrid inverter ideal for new installation and retrofit exist solar system. Stunning IP65 protection level,

more durable and flexible for installation, multiple programmable working modes, decide by yourself
how to realize self-sufficiency and increase system self-consumption. And the EPS output can even

provide backup supply during grid absence.

USER-FRIENDLY
Compact design
Local graphical LCD and 4 buttons
Support export control

FLEXIBLE
Wide PV voltage range
Dual MPP trackers
Programmable working modes

SAFE&RELIABLE
Smart battery management
Online smart service
IP65 & natural cooling

Support backup function


Datasheet
SPH3000
SPH3600
SPH4000
SPH4600
SPH5000
SPH6000
DC input data
Max. PV input power
6600W
6600W
6600W
8000W
8000W
8000W
Max. PV input voltage
550V
Nominal voltage
360V
Start-up voltage
150V
MPP voltage range
150-550V
Max. input current of tracker A/B
12A/12A
Number of MPP trackers / strings
per MPP tracker
2/1
AC output data
Rated output power
3000W
3680W
4000W
4600W
4999W
6000W
Max. AC apparent power
3000VA
3680VA
4000VA
4600VA
5000VA
6000VA
Max outpout current
16A
16A
22A
22A
22A
27A
Output voltage/range
230V
Grid frequency/range
50/60±5Hz
Power factor at rated power
1
Displacement power factor
0.8leading-0.8lagging
THDi
<3%
Grid connection type
L+N+E
Output AC (Back-up)
Max. output voltage
230Vac
Max. output power
3000W
Nominal grid
frequency
50Hz/60Hz
Back-up switch time
<0.5s
Battery data
Battery voltage range
42-59V
Max charging voltage
58V
Max charging/discharging current
66A
Max charging/discharging power
3000W
Battery type
Li-on/ lead-acid
Depth of discharge
80%DOD/50%DOD
Capacity of battery
50-2000AH
Efficiency
Max. efficiency
97.50%
97.50%
97.50%
97.60%
97.60%
97.70%
European efficiency
97.00%
97.00%
97.00%
97.10%
97.10%
97.10%
Mppt efficiency
99.90%




Tags : single-phase Hybrid Inverter growatt sph5000 5kw hybrid inverter low voltage battery inverter sph5000 hybrid inverter 2mppts inverter
