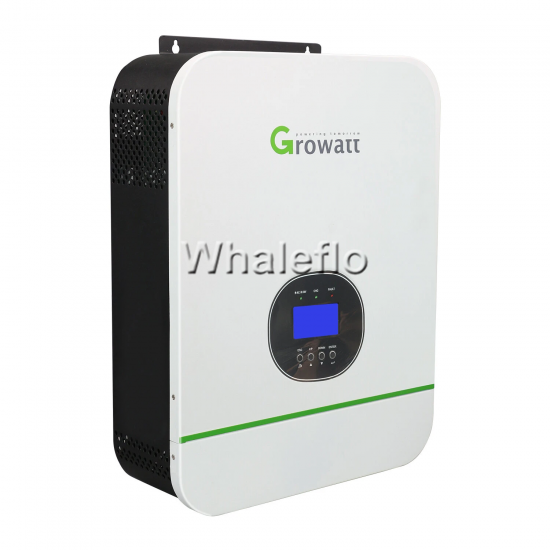

Off-Grid Storage Inverters GROWATT SPF 3000TL LVM Pure Sine Wave Output Inverter For 120VAC Power Supply System
This is a multifunctional off-grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off-grid backup power and self-consumption applications. The transformerless design provides reliable power conversion in a compact size.

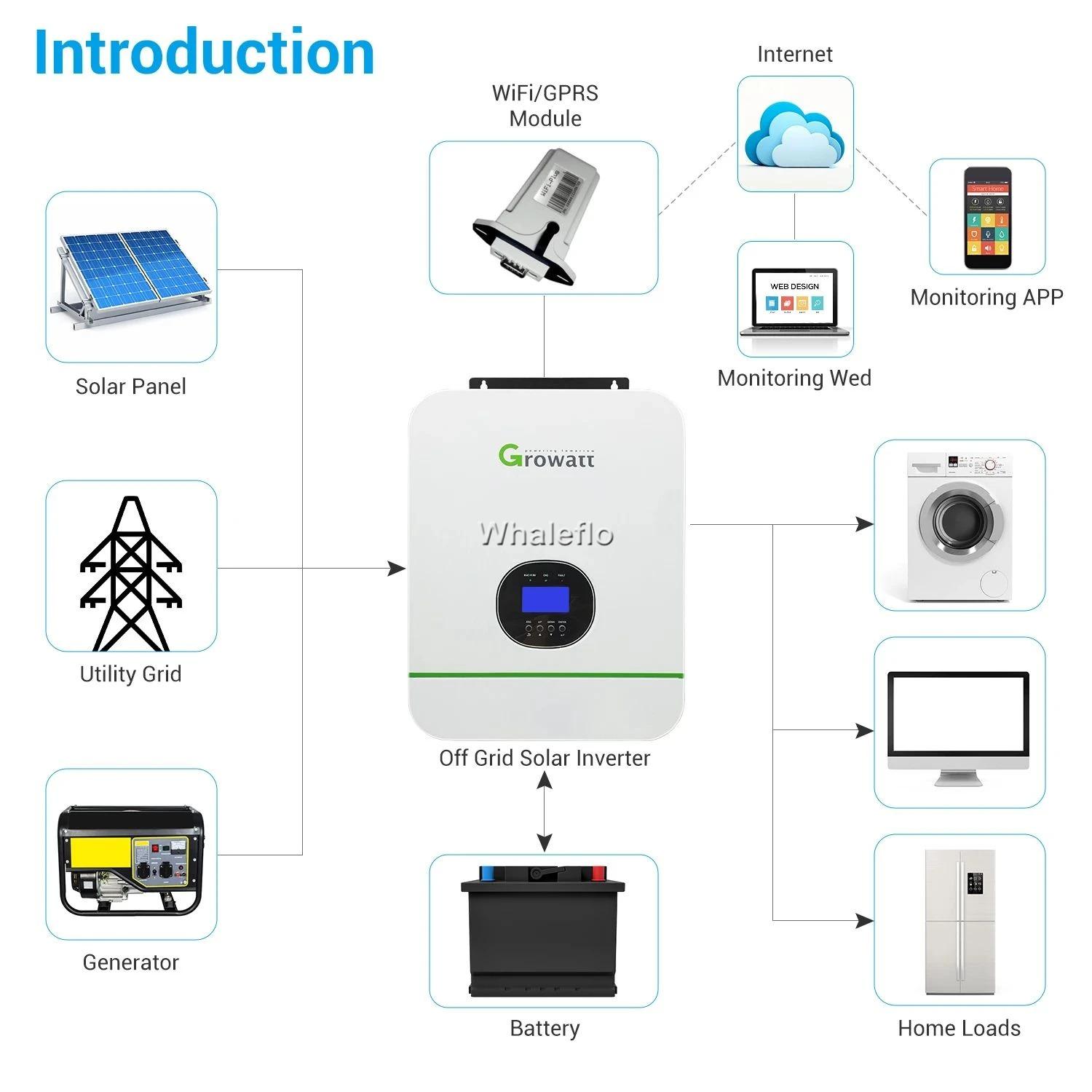

The whole system also needs other devices to achieve complete running such as PV modules, generators, or utility grids. Please consult with your system integrator for other possible system architectures depending on your requirements, The WiFi 1 GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Features:
-24V/48V battery system(optional)
-Pure sine wave output 3KW
-Inbuilt MPPT 80A
-High-frequency inverter with small size and lightweight
-Overload, short circuit and deep discharge protection
-Compatible to mains voltage or generator power

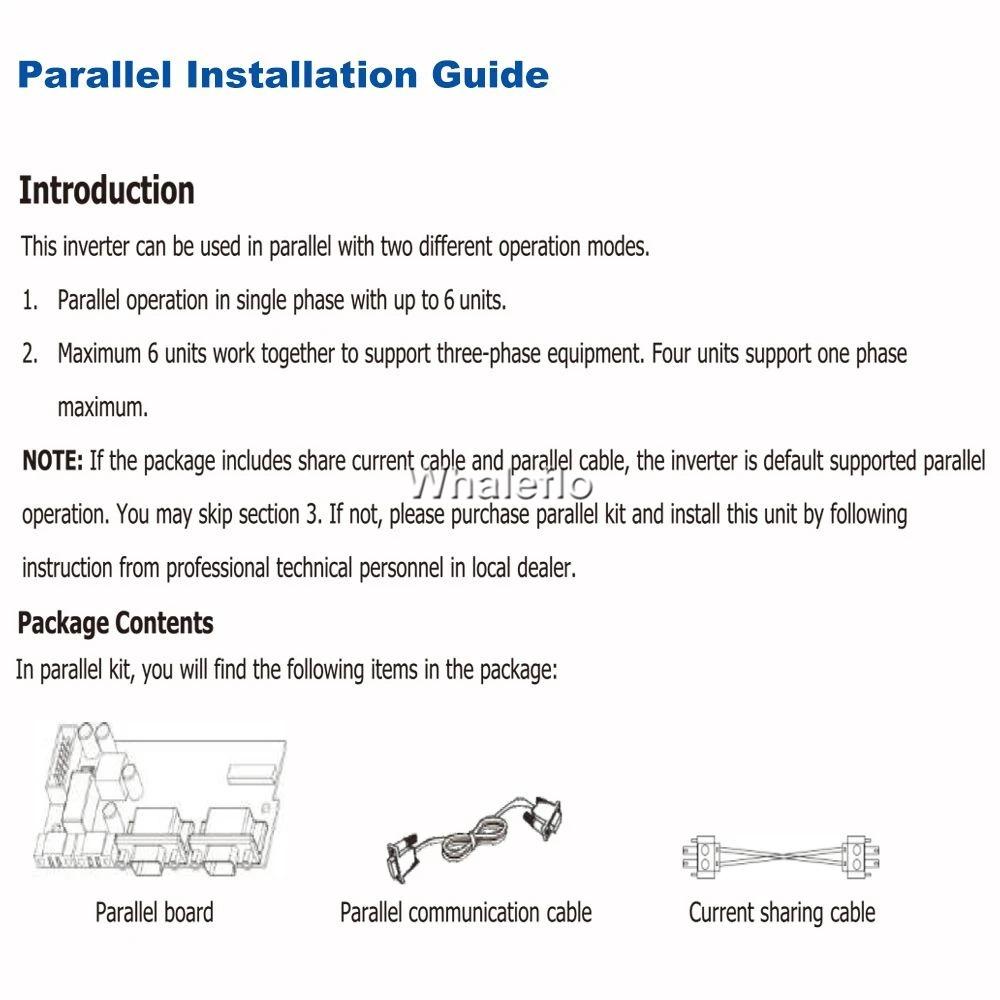

-Parallel operation up to 6 unit
-WIFI/ GPRS remote monitoring
|
Application: | Perfect For Off-grid , Backup Power And Self-consumption Applications. | Battery Voltage: | 24v Dc |
---|---|---|---|
Battery Type: | Lead-acid | INVERTER OUTPUT: | 3000VA/ 3000W |
Parallel Capability: | Yes, 6 Units Maximum | AC Voltage Regulation: | 120VAC ± 5% |
Battery Mode): | 50/60Hz | Surge Power: | 6000VA |
Efficiency (Peak): | 93% | Waveform: | Pure Sine Wave |
Transfer Time: | 10ms Typical, 20ms Max | Max. Recommended PV Power: | 2250W |
MPPT Range @ Operating Voltage: | 30VDC ~ 115VDC | Maximum PV Array Open Circuit Voltage: | 145v DC |
Number Of Independent MPP Trackers/ Strings Per MPP Tracker: | 1/1 | Maximum Solar Charge Current: | 80A |
Maximum Efficiency: | 97% | AC CHARGE CURRENT: | 60A |
AC Input Voltage: | 120VAC | Selectable Voltage Range: | 95-140 VAC (For Personal Computers) ; 65-140 VAC (For Home Appliances) |
Frequency Range: | 50Hz/60Hz (Auto Sensing) | Protection Degree: | IP20 |
Dimension (W/H/D): | 350/455/130mm | Net Weight (kgs): | 11kg |
OPERATING ENVIRONMENT: | Humidity 5% To 95% Relative Humidity(Non-condensing) | Altitude: | <2000m |
Operating Temperature: | 0°C - 55°C | Storage Temperature: | -15°C - 60°C |
