3.0 GPM 12V 3.1Bar Diaphragm Marine RV On-Demand Pressure Water Pump
12V DC Marine RV Fresh Water Pump
Specification
Model:WEL33-12-30
Open12V DC
Max.Amps:8A
Press Setting:45PSI/3.1Bar
Package Includes:
- 1 x WEL33-12-30 Model Water Pressure Diaphragm Pump
- 1 x Installation Instructions - 2 x 1/2" Barbed Hose Adaptors
- 1 x 50 Mesh Strainer/Filter
| Whaleflo Washdown Pump | |
| Type | 3Chamber diaphragm pump, self priming |
| Control Type | Pressure switch & By pass control |
| Max Recommended Temperature | 60° C（140° F） |
| Priming Capabilities | 6 feet (1.8 m) suction lift |
| Re-start Pressure |
Shut-off Pressure 45 PSI : 41 PSI ±5 PSI (±0.3 bar) |
| Inlet/Outlet Ports | QUICK ATTACH |
| Weight | 4.3 lbs (2.0 kg) |
| MOTOR | |
| Leads | 16 AWG, 13" (33 cm) long with 2-Pin connector / Leads |
| Duty Cycle | Intermittent |
| Max.Amp Draw | 4A |
| Head |
30M |

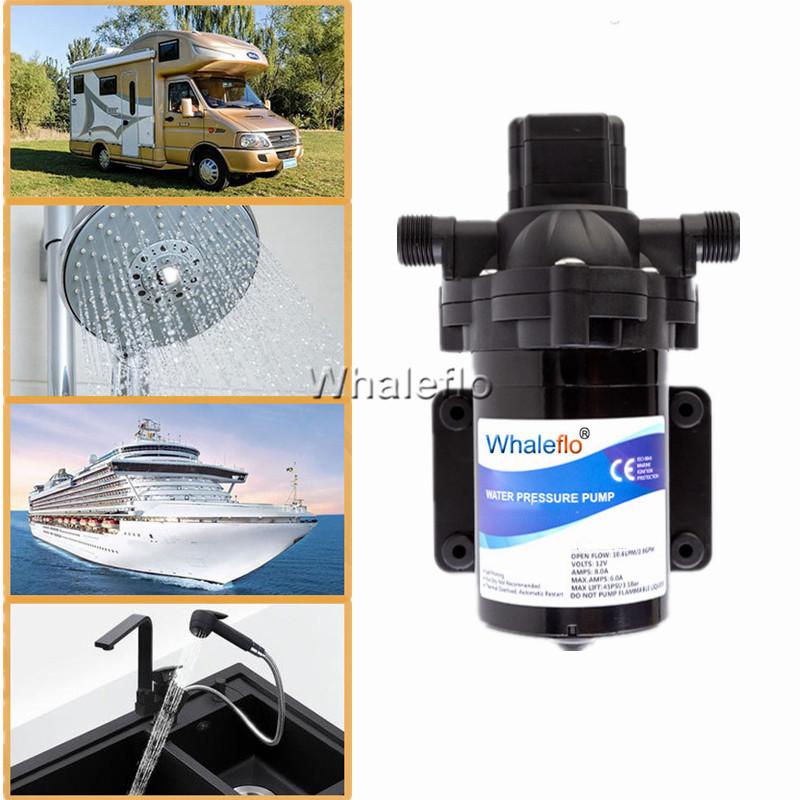

Whaleflo Pump application
Typical Applications
Agriculture/Yacht / RV/Caravan pressurized water system
* Agricultural Spraying
* General Industrial
* Automotive
* Marine/RV

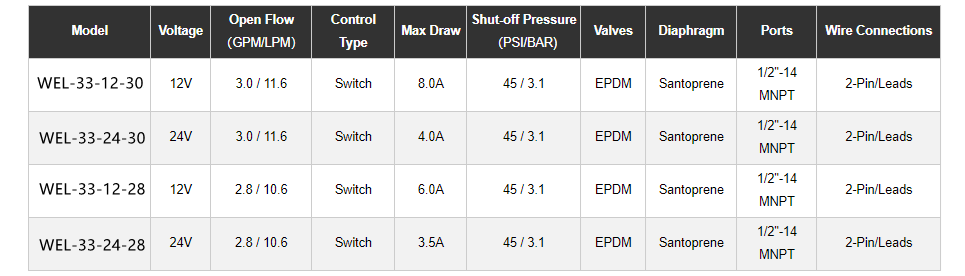

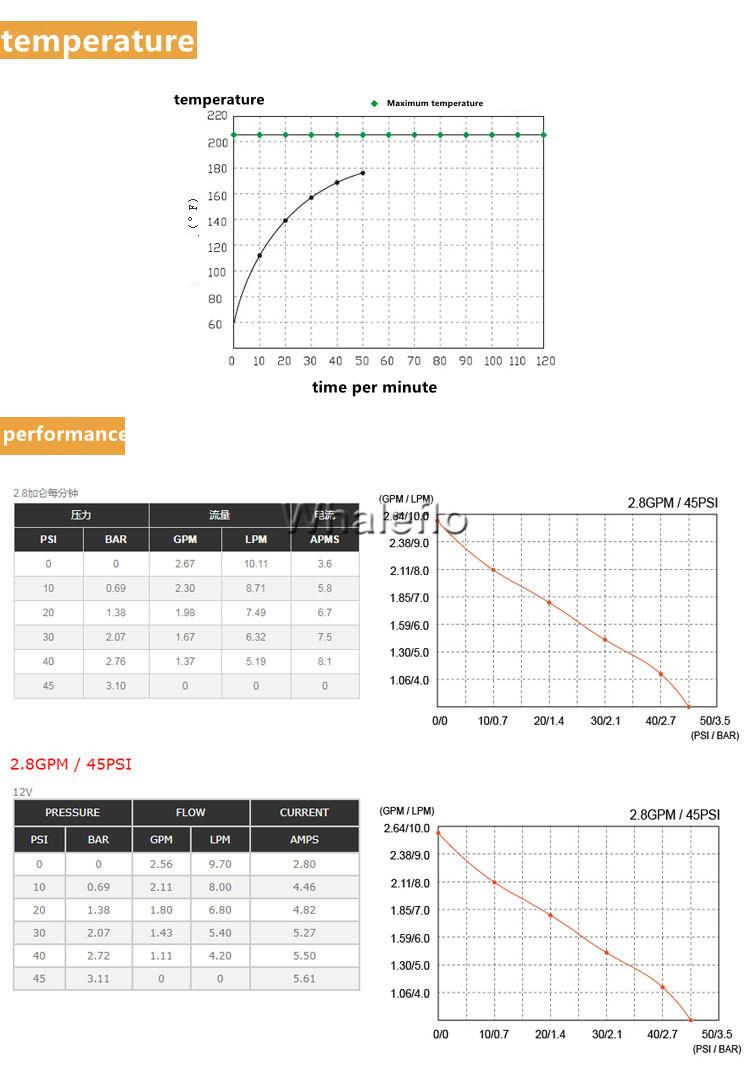

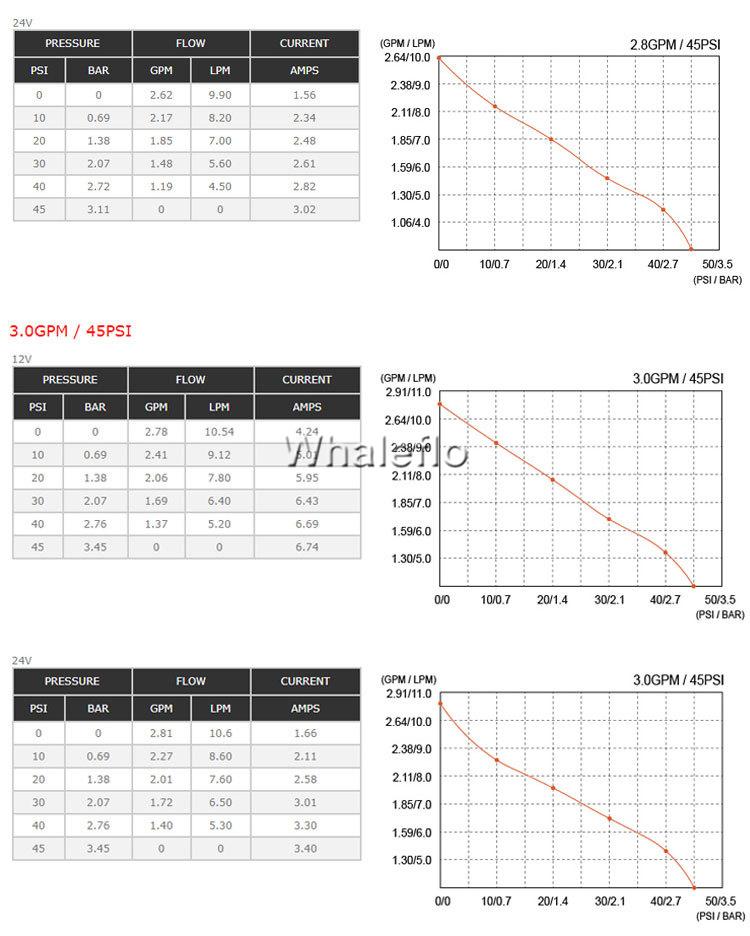

Technical data
