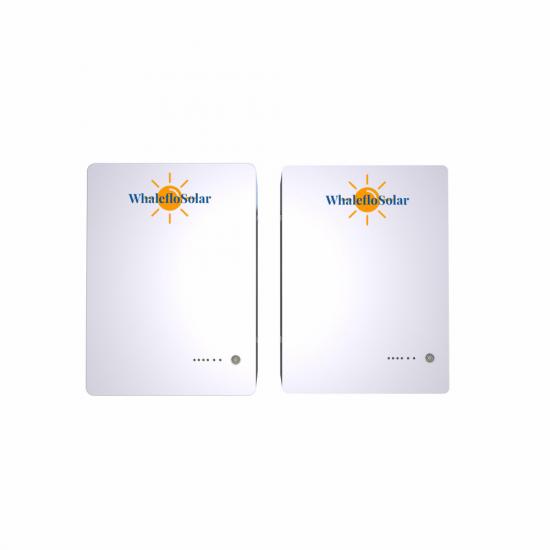

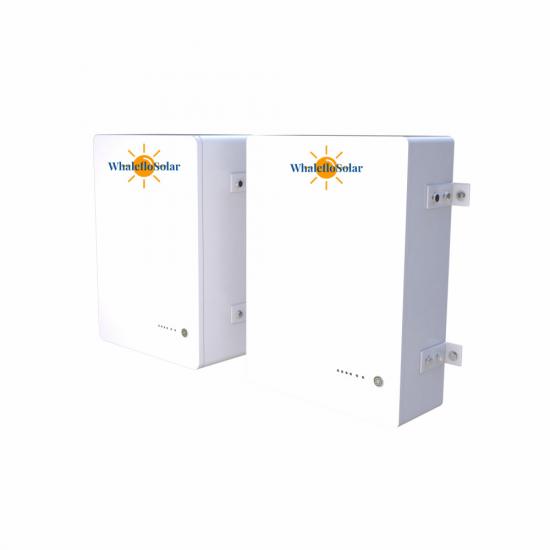

Lithium Ion Battery Factory 48v 86Ah 200Ah 4.4kwh 6.1kwh LifePO4 Power Wall Lithium Battery Supplier
Lifepo 86a/48v Description:
Battery Type: Lithium Ion, LiFePO4
Battery Capacity:4.4KWH/6.1KWH
Voltage:48V/51.2V
Application:Solar Energy Storage System
Cycle life:6000 Times
Warranty:5YEARS
Size:540*393*198
Features: Long Cycle Life
Shipping: Sea
TECHNICAL PARAMETER:
LDHEB-4400/6100 is a lithium battery energy storage system with an operating voltage range of between 49V~56.8V, it is used for household energy storage
applications, in cooperation with low voltage inverters, to achieve home energy storage
purpose.
LDHEB-4400/6100 has a built-in B M S (Battery Management System) which
can manage and monitor cell information, including voltage, current and temperature. In addition, the BMS can balances battery charging to extend its lifespan.BMS has protections including over-discharge, overcharge, over-current, high /
low temperature, etc. The system can automatically manage the charging status,
discharge state, and balanced state. Multiple batteries can be connected in parallel to expand
storage capacity to meet larger capacity and continuous power support
time, LDHEB-4400/6100 supports up to 16 parallel operations.
|
Datasheet
|
LDHEB-4400
|
LDHEB-6100
|
|
Dimensions (H x W x D)
(mm / ")
|
540 * 393 * 161mm 21.25 * 15.5 * 6.34’’
|
540*393 * 198mm
21.25 * 15.5 * 7.80’’
|
|
Weight (Kgs)
|
48 | 60.2 |
|
Operating Temperature
|
0 to 45℃ / 0 to 113℉
|
0 to 45℃ / 0 to 113℉
|
| IP Protection | IP20 | IP20 |
|
Storage Temperature
|
-20 to 45℃ / -68 to 113℉
|
-20 to 45℃ / -68 to 113℉
|
|
Cycle Life (80% DoD @25℃)
|
≥5000
|
≥5000
|
|
Operating Life (Years)
|
10
|
10
|
|
Communication Port
|
RS232 / RS485 / CAN
|
RS232 / RS485 / CAN
|
|
Communication Mode
|
WIFI/BLUETOOTH
|
WIFI/BLUETOOTH
|
|
Operating Altitude (m)
|
＜3000
|
＜3000
|
|
Humidity Conditions (%)
|
5% to 95%
|
5% to 95%
|
|
Warranty (Years)
|
5 Years
|
5 Years
|
|
Installation
|
Ground Mounted / Wall-Hanging
|
Ground Mounted / Wall-Hanging
|
|
Specifification
|
|
|
|
Nominal Energy Capacity
(Wh)
|
4400
|
6100
|
|
Nominal Voltage (V)
|
51.2 | 51.2 |
|
Operating Voltage Range
|
40-58.4 | 40-58.4 |
|
Continuous Charging
Current (A)
|
80 | 80 |
|
Continuous Discharging
Current (A)
|
80 | 80 |
|
Depth Of Discharge (%)
|
80 | 80 |
|
Battery Cell Material
|
Lithium (LiFePO4)
|
Lithium (LiFePO4)
|
|
Certifification
|
UN38.3 CE-EMC CE-LVD MSD ROHS
|
UN38.3 CE-EMC CE-LVD MSD ROHS
|
Application
Smart
Intelligently select and use energy from grid / solar / battery storage
Efficient
Real-time tracking of power generation consumption to optimize energy utilization
Reliable
Multiple protections by BMS to ensure system safe and stable
