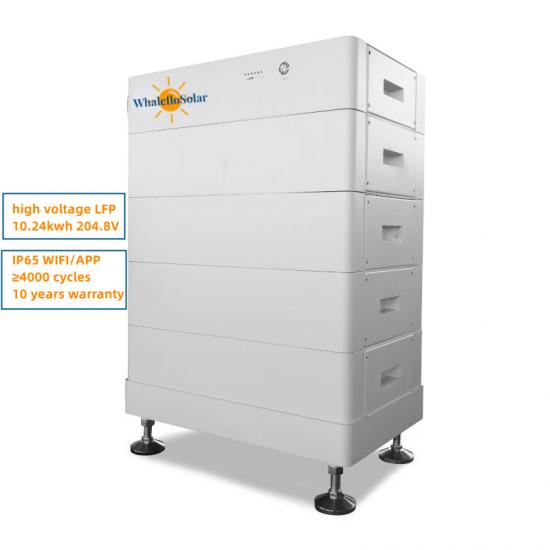

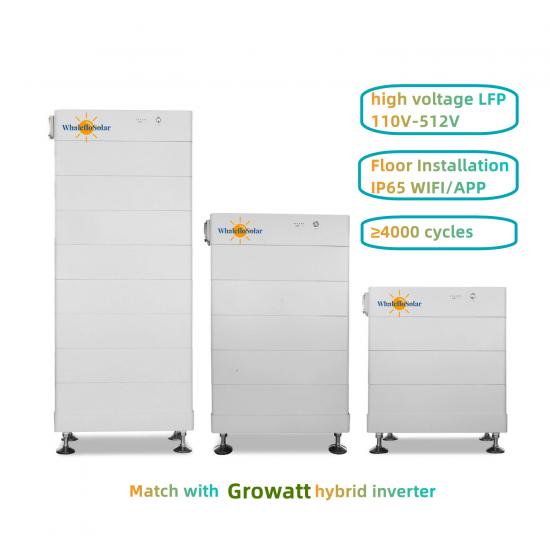

OEM 10.2KWH High Voltage Lithium ion Battery Storage for Growatt Deye Hybrid Inverter
High Voltage LFP Storage Battery Specification
ELEBOX- HV 5.1K-25.6K High voltage Lithium Battery
- Sufficient capacity
- Long life cycle > 6000 cycle @ 90%DOD
- Support multi-machine in series to increase capacity Max 10
- Intelligent communication RS232/RS485/CAN
- Customizable communication protocol: Growatt,Solis, Goodwe,Victron, INVT etc.
- REPT cell
- 5+5 years warranty
- High voltage energy storage lithium battery
- CE IEC62619 MSDS RoHS UN38.3
|
Datesheet
|
ELEBOX-HV 5.1
|
|
Battery Module
|
ELEBOX-HV-2.56 (2.56kWh, 51.2V, 34kg, 600/355/145)
|
|
Number of Modules
|
4 |
|
Energy Capability
|
10.2KWh
|
|
Nominal Voltage
|
204.8V
|
|
Dimension mm (H/W/D)
|
600/355/442
|
|
Weight
|
177.5kgs
|
|
Battery Type
|
Cobalt free Lithium Iron Phosphate (LFP)
|
|
Standard Charge/Discharge Current
|
25A @ 0.5C
|
|
Max Charge/Discharge Current
|
50A @ 1C
|
|
IP Protection
|
IP65
|
|
Installation
|
Wall-mounted or Floor Installation
|
|
Operation Temperature
|
0 °C to 45°C
|
|
DOD
|
90%
|
|
Cycle Life
|
>6000
|
|
Warranty
|
10 Years
|
|
Communication Port
|
CAN/RS485
|
|
Communication Mode
|
WIFI
|
|
Certification
|
CE, IEC62619, MSDS, ROHS, UN38.3
|
| HS code |
8507600090 |
