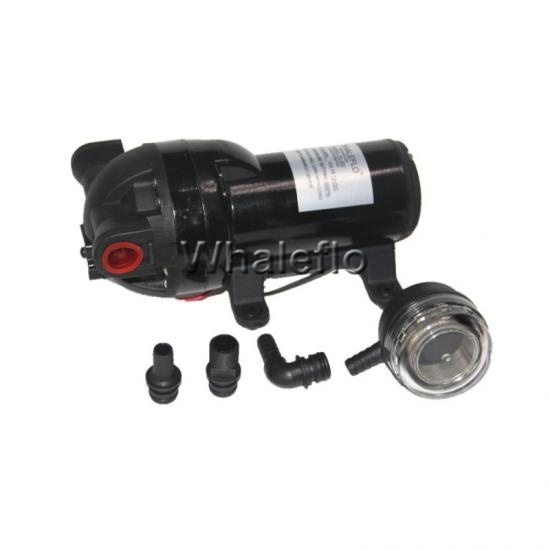

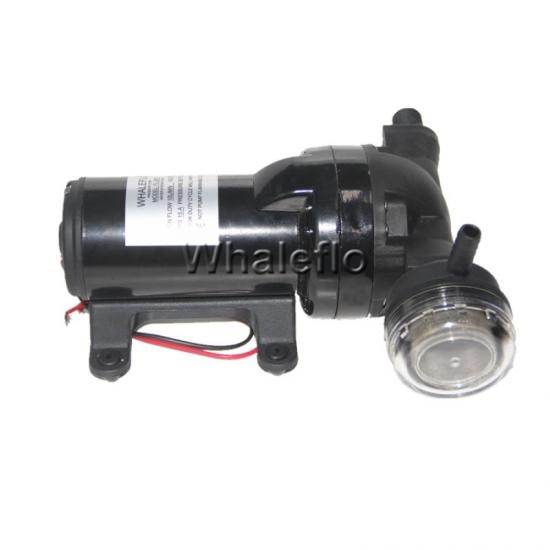

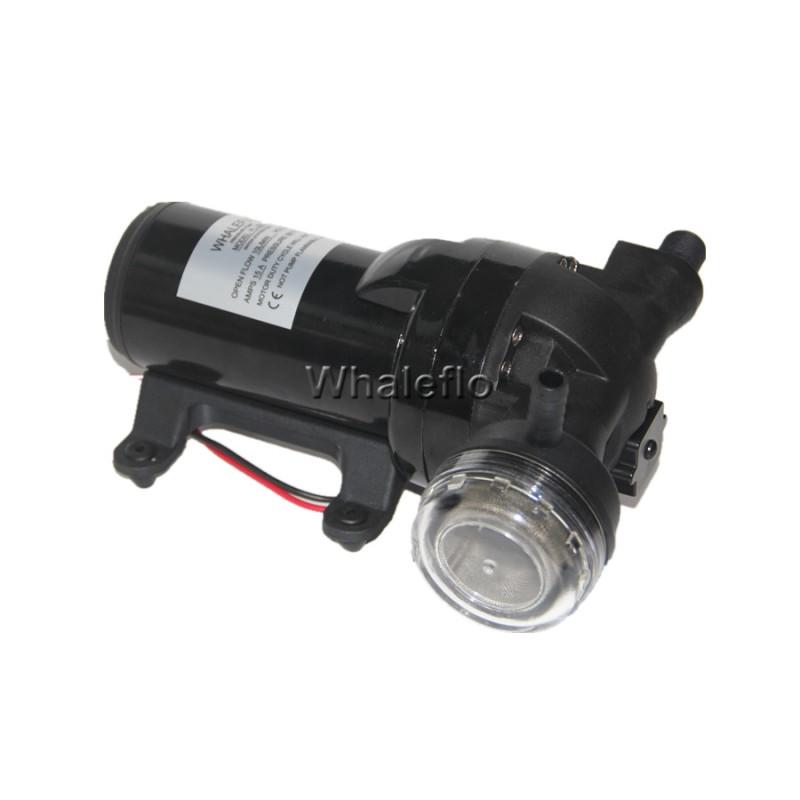

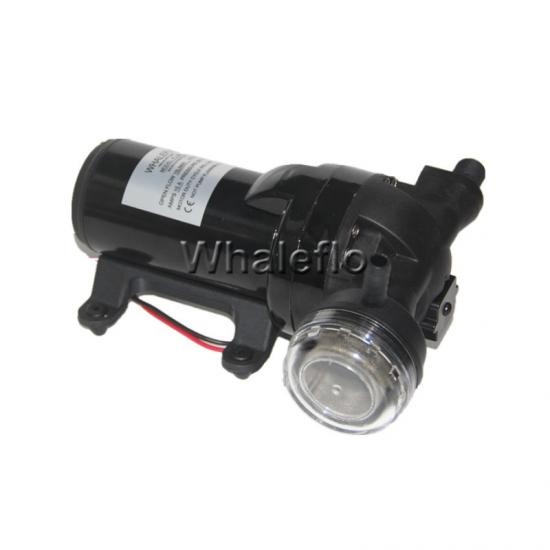

DC 12V 10LPM 200PSI Diaphragm Agriculture Irrigation DC Water Pump
Whaleflo FL 5 Chamber High Volume Diaphragm Pumps
Adjustable pressure switch from 50psi-200psi for OEM needed
Built-in thermal protector
Quick attach connections,fittings easy to connect with any outlet.
Rubber feet for noise reduction from vibration
Whaleflo Pump Application
caravan,RV,marine, garden,camping,boat, outdoor,agriculture irrigation
|
Pump Design |
5 chamber Daiphragm |
|
Port size |
3/4''(19mm) Quick attach |
|
Connector |
1pc 3/4" Male Thread ,1pc 1/2'' hose barb , 1pc 1/2" hose barb filter |
|
Voltage |
12V, 24V |
|
Check value |
EPDM or VITON |
|
Liquid temp |
140F(60C) maximum |
|
Seld-priming |
8 feet （ 2M）suction Lift |
| Model number | Volt | Max Flow LPM(GPM) | Max Pressure Psi(Bar) | Amps(A) | Packing Size(mm) | N.W/G.W |
| FL-55 | 12v dc | 20(5.2) | 55(3.8) | 16.0 | 240*135*138mm | 3.2/3.5kgs |
|
FL-200 |
12v dc | 10(2.6) | 200(13.8) | 15.0 | 210*125*105mm | 3.2/3.5kgs |
| FL-200B | 24v dc | 10(2.6) | 200(13.8) | 7.5 |
210*125*105mm |
3.2/3.5kgs |
