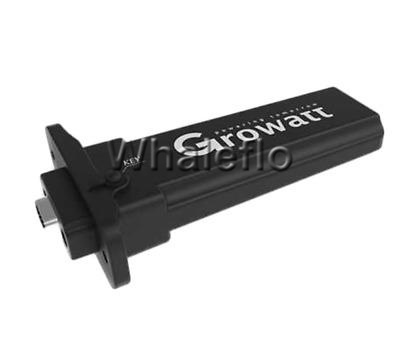

Growatt ShineWifi-S
Cable free,easy installation
Communication distance up to 50MBuilt-in memory for up to one month of date
Online monitoring and maintenance
1. How to choose Growatt wifi module?
WIFI-S suitable for the series of inverters: S, MTL-S, TL3-S, SPH
WIFI-X suitable for the series of inverters: X, KTL3-X, MAX
WIFI-F suitable for the series of inverters: SPF
( List out on the picture for reference.)
2. Different meaning of Growatt Wifi Indicator light
Flashing Red: The initial state of the configuration.
* Solid Blue: Datalogger is launching hotspot, waiting to use AP mode method.
* Flashing Blue: Datalogger has been connected to the router.
* Solid Green: Failed connection, network not 2.4ghz./
Wrong Wifi name/ password or in AP mode./
The wifi signal is too weak.
* Flashing Green: Datalogger is connected to the router, but the router has no internet.
