EVE Factory Direct Lithium Iron Phosphate Battery 3.2v 280ah Lifepo4 Power Energy Storage Battery for Solar Photovoltaic
Lifepo4 Battery Cells Description
LiFePO4 Cells have excellent safety and cycle life performance advantages and are the most critical technical index of power batteries.
Lifepo4 Battery Pack Feature
Long cycle life 6000times
Nominal Voltage:3.2V
Nominal capacity:280Ah
Working voltage:2.5V~3.65V
AC impedance resistance(1khz):≤0.25mΩ
Max. pulse charge / discharge current: 2C (30S)
Dimension: 207(H)*72(T)*173.7(W)mm
Weight: 5.42±0.3kg

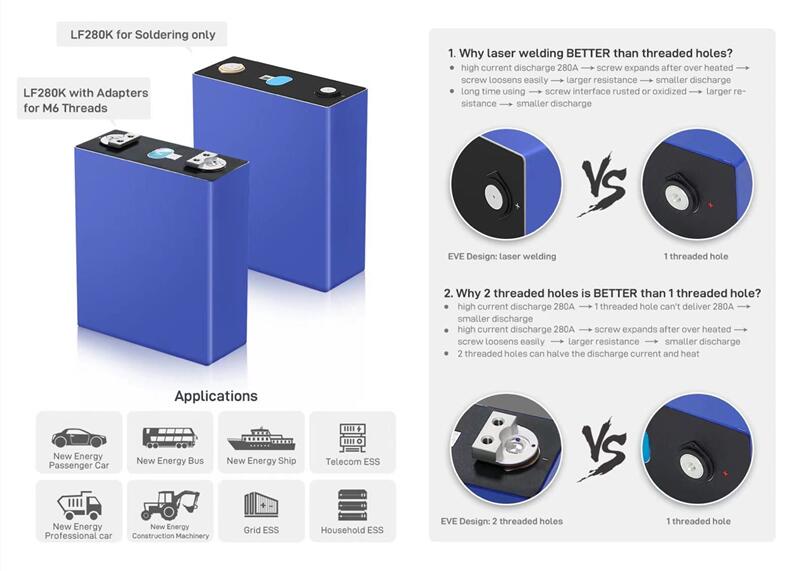

1.Why laswer welding BETTER than threaded holes?
- high current discharge 280A→screw expands after overheated→screw loosens easily→larger resistance-smaller discharge
- longtime using→screw interface rusted or oxidized→larger resistance→smaller discharge
- high current discharge 280A →1 threaded hole can't delivery 280A-→smaller discharge
- high current discharge 280A→screw expands after over heated→screw loosens easily-larger resistance→smaller discharge
- 2 threaded holes can halve the discharge current and heat
Technical Date of EVE LiFePO4 Batteries Cell
| Model | Nominal Voltage(V) | Nominal Capacity(Ah) | AC Impedance（mΩ） | Weight(g) | Height(mm) | Wide(mm) | thickness(mm) |
| LF32 | 3.20 | 32 | 1.5 | 725±50 | 94.3±0.5 | 148.3±0.5 | 26.7±0.5 |
| LF50F |
3.20 |
50 | 2.0 | 1050±100 | 129.8±0.5 |
148.3±0.5 |
26.7±1.0 |
| LF90K |
3.20 |
90 | 0.5 |
1994±50 |
200.5±0.5 |
130.3±0.3 |
36.7±0.5 |
| LF100MA |
3.20 |
100 | 0.5 |
1920±100 |
118.5±0.5 |
160.0±0.8 |
50.1±0.5 |
| LF100LA |
3.20 |
100 | 0.5 |
1985±100 |
118.5±0.5 |
160.0±0.8 | 50.1±0.5 |
| LF105 |
3.20 |
105 |
0.32±0.05 |
1980±100 |
200.5±0.5 |
130.3±0.5 |
36.35±0.5 |
| LF160 |
3.20 |
160 |
0.21±0.05 |
3000±100 |
153.5±0.5 |
173.9±0.5 |
53.85±0.5 |
| LF173 |
3.20 |
173 | 0.25±0.05 |
3190±96 |
207.2±0.5 |
173.9±0.5 |
41.06±0.5 |
| LF230 |
3.20 |
230 |
0.2±0.05 |
4140±124 |
207.0±0.5 |
173.9±0.5 |
53.85±0.5 |
| LF280K |
3.20 |
280 | 0.25 |
5420±300 |
207.5±0.5 |
173.7±0.5 |
72.0±1.0 |
| LF304 | 3.20 | 304 | 0.16±0.05 |
5450±164 |
207.2±0.5 |
173.5±0.5 |
71.7±0.8 |
3.2v Lifepo4 Lithium Battery Application
New Energy Passenger Car/New Energy Bus/New Energy Ship/Telecom ESS/New Eenergy Professional Car/New Energy Construction Machinery/Grid ESS/Household ESS ETC.
3.2V LiFePO4 Battery Packing
Attentions
For safety usage, please be careful on below：
Warning!
1. Do not immerse the battery in water and keep it dry when not using；
2. Do not strike, throw or subject the battery near a fire or in extremely hot conditions；
3. Charge with specified charge according to charging requirement；
4. Do not reverse the positive (+) and negative (-) terminals；
5. Do not put the battery into a fire or apply direct heat to it；
6. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals；
7. Do not ship or store the battery metal objects, such as necklaces, hairpins, etc；
8. Do not knock, throw, tread, bend, etc；
9. Do not directly solder the battery terminals；
10. Do not pierce the battery casing with a nail or other sharp object.
