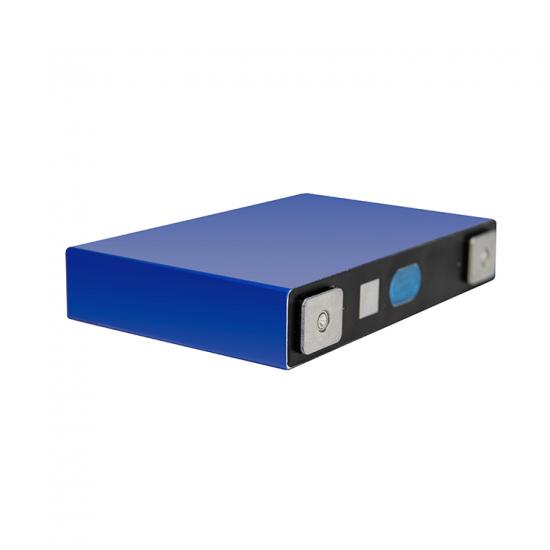

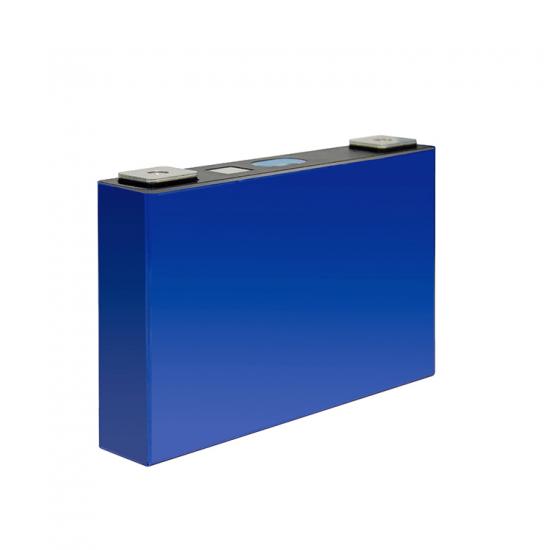

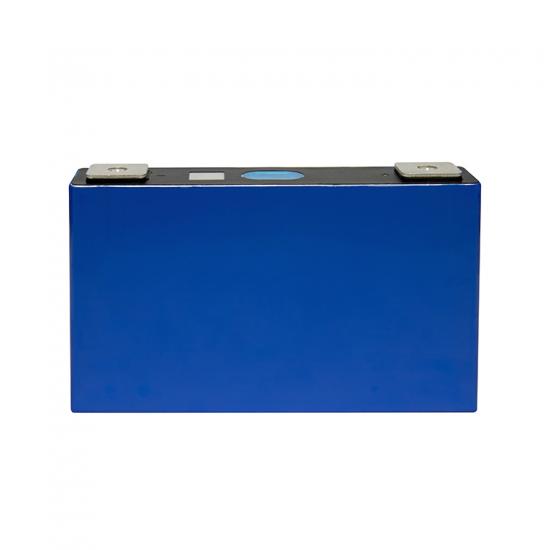

EVE Lithium Iron Phosphate Battery Cell 3.2V 32Ah Energy Storage Power
Lifepo4 Battery Cells Description
iFePO4 Cells have excellent safety and cycle life performance advantages and are the most critical technical index of power batteries.
Lifepo4 BatteryPack Feature
Long cycle life
Nominal Voltage:3.2V
Nominal capacity:50Ah
Working voltage:2.5V~3.65V
AC impedance resistance(1khz):≤1.5mΩ
Max. pulse charge / discharge current:1.2C/2C (30S)
Dimension: 94.3(H)*148.3(T)*26.7(W)mm
Weight: 0.725±0.3kg
Technical Date of EVE LiFePO4 Batteries Cell
| Model | Nominal Voltage(V) | Nominal Capacity(Ah) | AC Impedance（mΩ） | Weight(g) | Height(mm) | Wide(mm) | thickness(mm) |
| LF32 | 3.20 | 32 | 1.5 | 725±50 | 94.3±0.5 | 148.3±0.5 | 26.7±0.5 |
| LF50F |
3.20 |
50 | 2.0 | 1050±100 | 129.8±0.5 |
148.3±0.5 |
26.7±1.0 |
| LF90K |
3.20 |
90 | 0.5 |
1994±50 |
200.5±0.5 |
130.3±0.3 |
36.7±0.5 |
| LF100MA |
3.20 |
100 | 0.5 |
1920±100 |
118.5±0.5 |
160.0±0.8 |
50.1±0.5 |
| LF100LA |
3.20 |
100 | 0.5 |
1985±100 |
118.5±0.5 |
160.0±0.8 | 50.1±0.5 |
| LF105 |
3.20 |
105 |
0.32±0.05 |
1980±100 |
200.5±0.5 |
130.3±0.5 |
36.35±0.5 |
| LF160 |
3.20 |
160 |
0.21±0.05 |
3000±100 |
153.5±0.5 |
173.9±0.5 |
53.85±0.5 |
| LF173 |
3.20 |
173 | 0.25±0.05 |
3190±96 |
207.2±0.5 |
173.9±0.5 |
41.06±0.5 |
| LF230 |
3.20 |
230 |
0.2±0.05 |
4140±124 |
207.0±0.5 |
173.9±0.5 |
53.85±0.5 |
| LF280K |
3.20 |
280 | 0.25 |
5420±300 |
207.5±0.5 |
173.7±0.5 |
72.0±1.0 |
| LF304 | 3.20 | 304 | 0.16±0.05 |
5450±164 |
207.2±0.5 |
173.5±0.5 |
71.7±0.8 |
3.2V LiFePO4 Battery Packing
Attentions
For safety usage, please be careful on below：
Warning!
1. Do not immerse the battery in water and keep it dry when not using；
2. Do not strike, throw or subject the battery near a fire or in extremely hot conditions；
3. Charge with specified charge according to charging requirement；
4. Do not reverse the positive (+) and negative (-) terminals；
5. Do not put the battery into a fire or apply direct heat to it；
6. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals；
7. Do not ship or store the battery metal objects, such as necklaces, hairpins, etc；
8. Do not knock, throw, tread, bend, etc；
9. Do not directly solder the battery terminals；
10. Do not pierce the battery casing with a nail or other sharp object.
