Whaleflo DC 12V 24V Gear Oil Pump

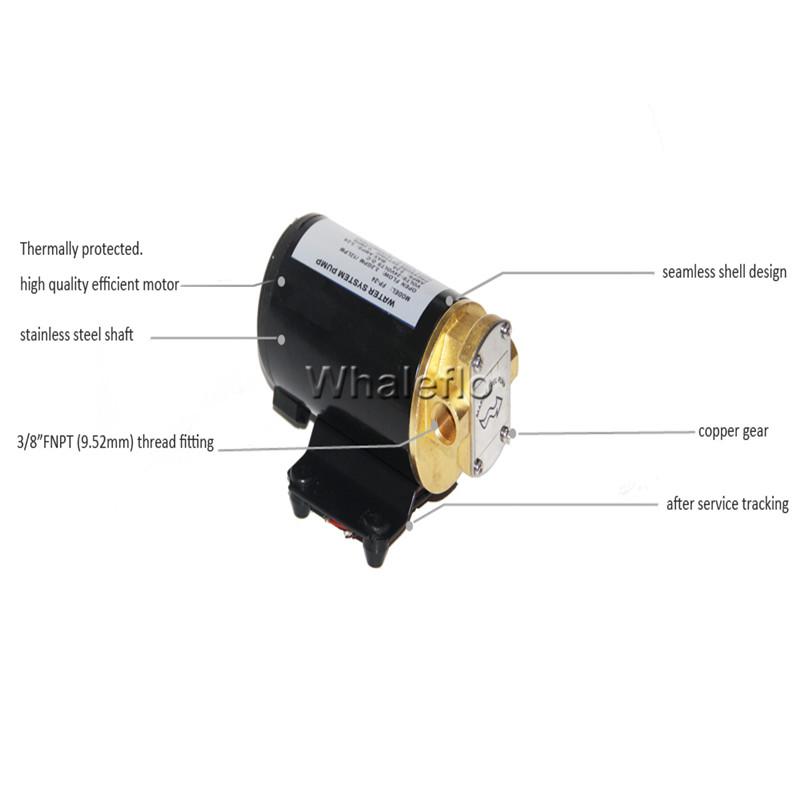

Features include:
- Pump body:copper
- Seal:rubber
- Gear:brass
- Motor:steel&copper
Whaleflo Gear Pump application
The Whaleflo gear pump is an ideal product for oil transfer. The pump is able to
transfer oil with viscosity between 5x10^(-6) and 1.5x10^(-3)m2/s(5-1500 cSt), and
the temperature below 60℃. The pump can not pump corrosive oil and any oil withgrain.
The connection to the engine should be controlled by a 3/8" ball valve to guard against accidental oil leakage.
- Disel
- Lubricant,
- Viscous Liquids
- Water
| Item No. | Volt | Amps(a) | Max Aamps | Max Lift(m) | Packing Size(mm) | N.W/G.W |
| FP-12 | 12V | 6.0A | 10.0A | 1.0 | 215*135*110 | 2.5/2.6 |
| FP-24 | 24V | 4.0A | 6.0A | 1.0 | 215*135*110 | 2.5/2.6 |
