Whaleflo DC 12V 24V 220W 40LPM Diesel Oil Transfer Pump Manufacturer
Products Details:
Voltage: 12V / 24V DC
Power: 300W
Head: 15m
Suction: 5m
Flow:40L / min
no load speed : 3600 r / min
speed range:2750 r / min
Discharge diameter: 25mm
Access diameter: 25mm
Uses: Mechanical fuel
Drive mode: electric
Packing size:26.5*18*19.5cm
Net Weight:3.8kgs
1pc/box,6pcs into a carton,carton size:56*27.5*41cm
Features
Transmission medium: diesel, kerosene, water
The DC oil pump has been tested and passed through a strict performance test for temperature
resistance and antihock with a high quality protection rating of IP55.Car batteries may be used to power the pump for fast and convenient fuel pumping.
This pump is designed for all kinds of machinery, tractor and farm equipment.

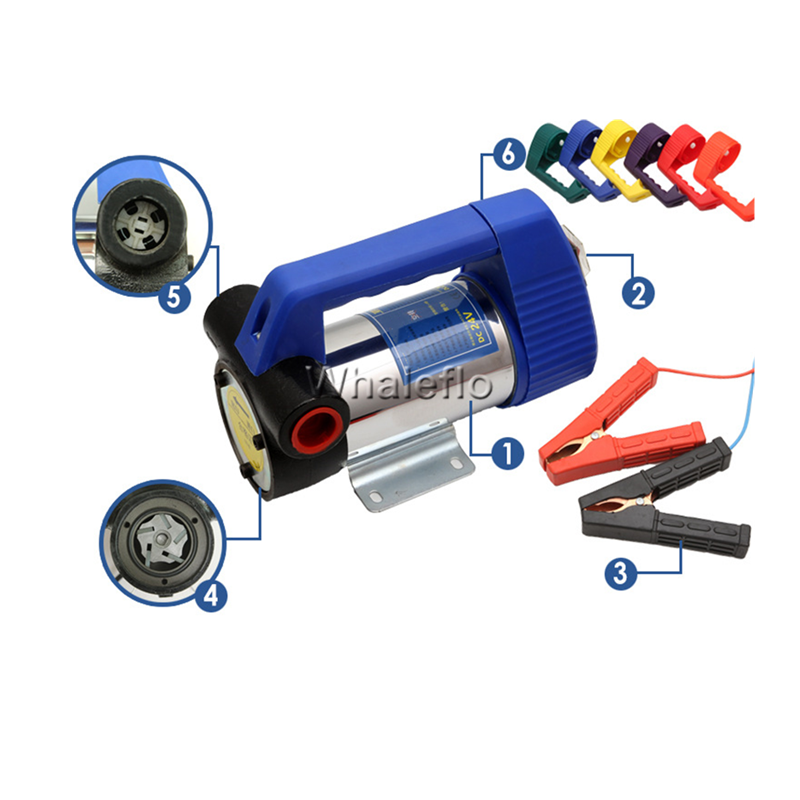

1.304 stainless steel
2.thick switch
3.large battery clip
4.alloy impeller
5.built-in relief valve
6.available in four color
Specification:It is an ideal portable pump for diesel and kerosene etc.
Our oil pump is through the strict aseismatic anti-scar performance tests.
IP standard is IP55, with inner by-pass valve,with excellent quality. It works
With various battery and has the feature of self-priming function.
Pump is only working with diesel oil and oil with similar specs. It's strictly
Prohibited for gasoline and low flash point mediums.
Pump casing and impeller is made of cast iron.
Note: Not suitable for low-ignition fuel (such as gasoline, liquefied petroleum gas, alcohol, etc.) transmission.
Whaleflo Diesel Oil Transfer Pump Troubleshotting
|
Trouble |
Reasons |
Treatments |
|
No initial oil output |
1.Polarity reversed(+/-) |
1.Correctly attach polarity to power source+/- |
|
2.Leak in suction line |
2.Ensure the suction hose is securely fastened and there are no leaks |
|
|
3.Pump not primed |
3.Prime the pump by adding oil to near the pump inlet |
|
|
Little oil flow |
1.Low voltage supply |
1.Increase the supply voltage to proper levels |
|
2.Excessive suction height or head |
2.Reduce suction height or head |
|
|
3.Obstruction in the filter strainer |
3.Clear foreign objects, clean filter strainer |
|
|
4.Vanes worn or gear broken |
4.Replace the vanes or gear |
