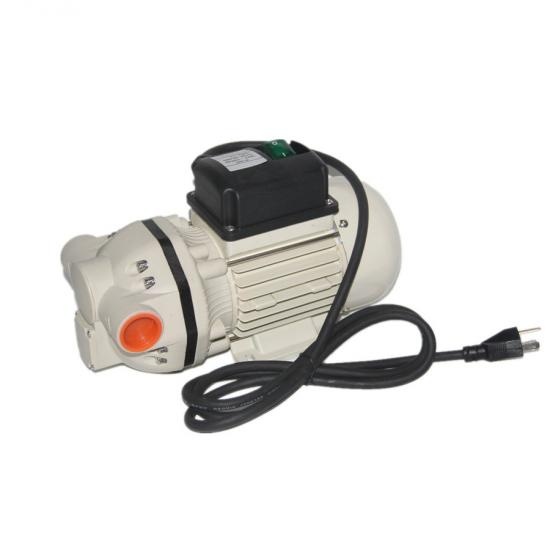

Whaleflo AC 220V Urea Transfer 50L/min Diaphragm Pump Price
Whaleflo AC Adblue Urea Pumps and Accessories are Suitable for Use Other Liquids From The Urea Manufacturing Process. They are diaphragm pumps with a by-pass Which is designed to dispense products called Ad Blue, AUS32 or water, and also widely used in chemical equipment, agriculture (lawn and garden), carpet cleaning, floor/ground cleaning, and water treatment equipment.

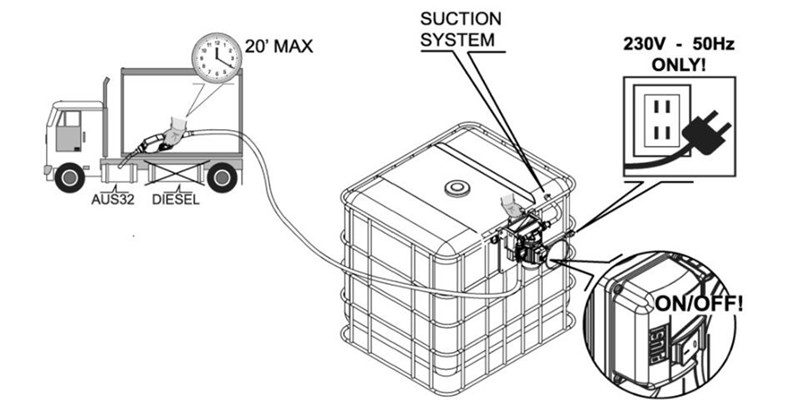

Suitable for IBC transmission systems, permanent magnet pumps work continuously.
Specification
Model Number: HV-50M
Body Materials: Aluminum
Voltage:AC 230V
Current: 2.0A
Pressure off: 40PSI
Frequency: 50/60Hz
Flow(Liters/Min):50L
Power: Electric
Pressure Switch: Build in
Speed: 2900rpm
Liquid of Transfer: AdBlue, AUS 32, Water etc.
IP55 Protection, CE
Features&Highlights
Whaleflo Diaphragm Adblue Pump material: aluminum alloy, durable, corrosion resistant, high quality
Permanent magnets and continuous load: maintain a good motor to maintain a stable temperature of the 2m wire plug of the pump body
Whaleflo Self-priming water pump: can be located above the water tank and dry in a short time (up to 20 minutes) without damage
Easy to operate: on/off switch, built-in pressure switch for automatic start or stop when the faucet is opened and closed
Application:
Whaleflo ac urea pump suitable for applications where liquids are transferred from one location to another, such as AdBlue, AUS32 or water etc, spraying, recycling, irrigation and distribution
Note:They must not pump gasoline, chemicals, high viscosity liquids, solvents, etc.
|
Item Code |
Volt | Flow Rate(L/min) | Pressure (PSI) | Amps(A) | Speed(rpm) |
| HV-40S | 115V AC | 40 | 25 | 4.2 | 3400 |
| HV-40M | 230VAC | 40 | 25 | 1.8 | 2900 |
| HV-50S | 115V AC | 50 | 25 | 4.5 | 3400 |
| HV-50M | 230V AC | 50 | 25 | 2.0 | 2900 |
