On Grid Smart Micro Inverters WVC 300W

Convert DC Generated by the Panel into Alternating Current
  • Brand:

    Whaleflo
  • Item NO.:

    WVC-300
  • Shipping Port:

    Xiamen,Shanghai,Qingdao,Ningbo,Shenzhen,Guangzhou Port
  • Color:

    Silver
  • Lead Time:

    7-30 working days
  • Payment:

    T/T,Paypal,Western Union Transfer

Hot Products

Products Description

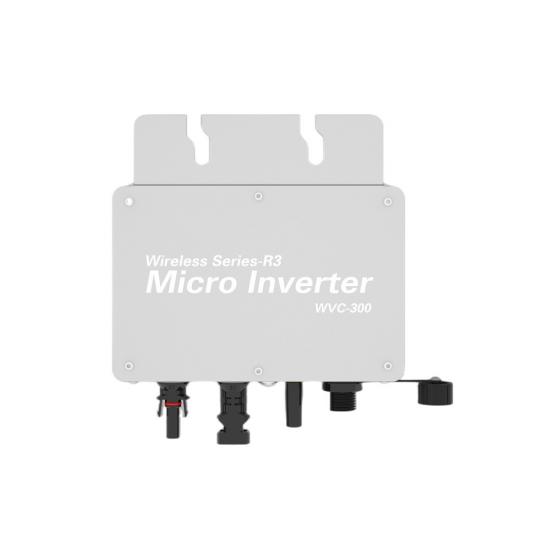

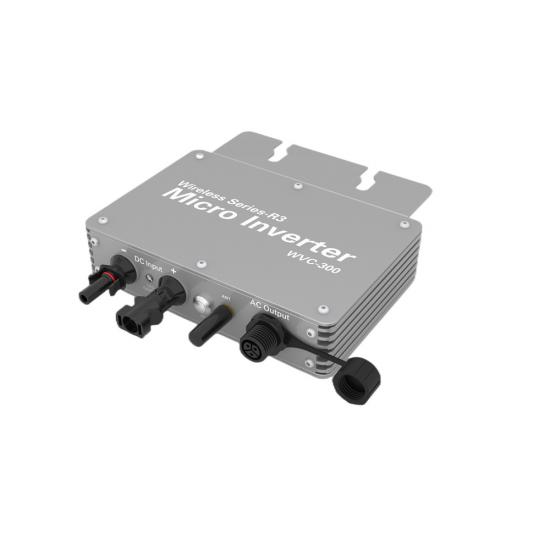

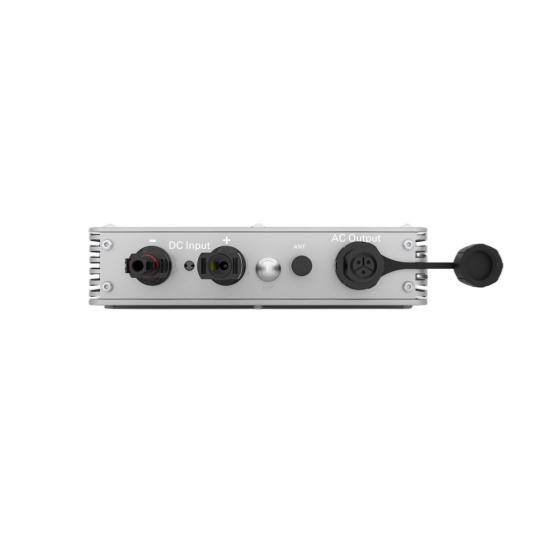

On Grid Smart Micro Inverters WVC 300W

Product Introduction

Whaleflo WVC-300W grid-tied inverter 300W

Grid-tie Inverter System.
A solar micro-inverter is a device used in photovoltaics that converts direct current (DC) generated by a single solar module to alternating current (AC). Microinverters contrast with conventional string and central solar inverters, which are connected to multiple solar modules or panels of the PV system.

Microinverters have several advantages over conventional inverters.
1. Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not disproportionately reduce the output of the entire array.
2. Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3. Simplicity in system design, lower amperage wires, simplified stock management and added safety are other factors introduced with the microinverter solution.

WVC -300W (wifi)

Inverter

WVC-300W (wifi) whaleflo Grid tie power inverter 300W using IP65 waterproof streamline design, Can effectively prevent rainwater on the surface erosion, Built-in high-performance Maximum Power Point Tracking(MPPT) Functions, Better able to track changes in the solar luminosity and control the different output power, Effectively capture and collect sunlight. AC electric power transmission using reverse transmission technology, Is one of our patented technology, The Microinverter output power can provide load priority use, Extra electricity to the grid, Efficient use of the inverter to the power emitted, Electricity transmission rate of up to 99%.

On grid WVC-600 single phase and three phase 12/24V to 110/220V grid tie power inverter

Solar Photovoltaic Power Generation System Sine Wave WVC-600 Micro Inverter 600W Grid Tied Inverters
Product Parameters
Product Parameters

High-performance maximum power point tracking (MPPT)
Reverse power transmission
Intelligent monitoring management
Input /output is fully isolated to protect the electrical safety
Multiple parallel stacking
Digital control system
Simplify maintenance (user serviceable)
Operation and maintenance costs low
Flexible installation

Model

WVC-300

Maximum input power

1×375Watt

Output voltage mode

120/230V Auto Switch

PV Open circuit voltage

33-60Voc

Operating voltage range

22-60V

Starting voltage range

22-60V

short-circuit current

15A

Maximum working current

13.7A

Output parameters

@120V

@230V

Maximum Output Power

310watt

310watt

Rated output power

300watt

300watt

Output current

2.5A

1.3A

AC voltage range

85-160VAC

180-280VAC

Number of branch connections.

15pcs(single)

25pcs(single)

AC frequency range

48-51/58-61Hz

Power factor

>95%

Output efficiency

Static MPPT efficiency

99.5%

Max output efficiency

95%

Loss of power at night

<0.5w

Total current harmonics

<5%

Appearance and technical features

Size(L×W×H)mm

165×176×38

Net amount

0.82kg

Waterproof grade

IP65

Temperature range

-20°C to +50°C

Heat dissipation mode

Self-cooling

Communication mode

Wifi

Power transmission mode

Reverse transmission, Load priority

Monitoring system

Mobile phone APPBrowser

Electromagnetic compatibility

EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1

Power grid

EN61000-3-2 EN62109.UL STD.1741

Power grid detection

DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A

certificate

Industrial DesignPatent For Invention,CE

each packing(245*202*60mm)1.28kg Box(15pcs)450*395*345mm /19.5kg
