Whaleflo Factory Grid Tie Solar Inverters 600W WVC-600 Micro Inverter for Home

Connect with PV Panel on Grid Tie Wireless Micro Inverter Wvc- 600 for Solar Panel Mini Solar System
  • Brand:

    Whaleflo
  • Item NO.:

    WVC-600
  • Shipping Port:

    Xiamen,Shanghai,Qingdao,Ningbo,Shenzhen,Guangzhou Port
  • Color:

    Silver
  • Lead Time:

    7-30 working days
  • Payment:

    T/T,Paypal,Western Union Transfer

Hot Products

Products Description

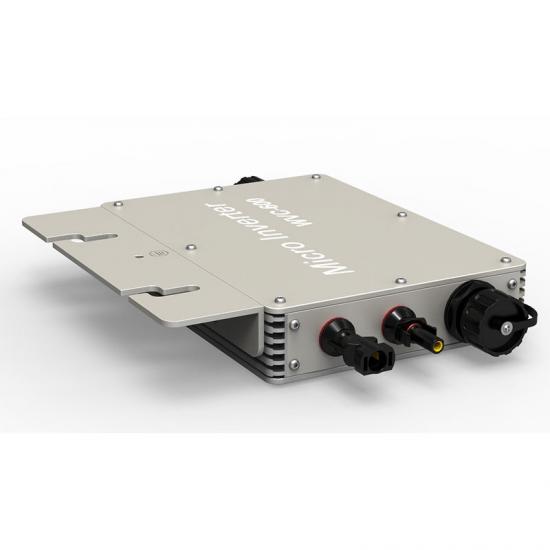

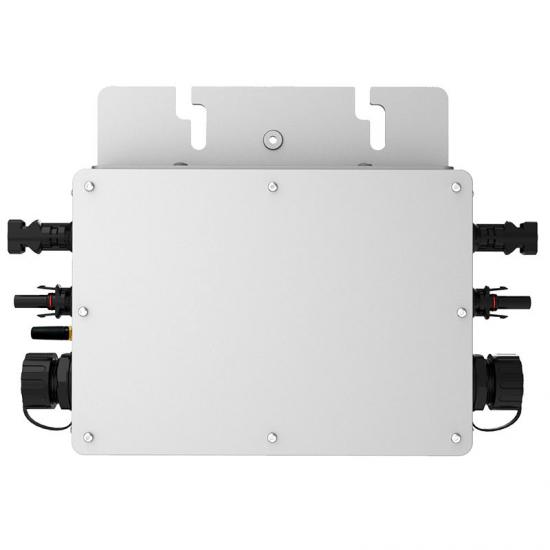

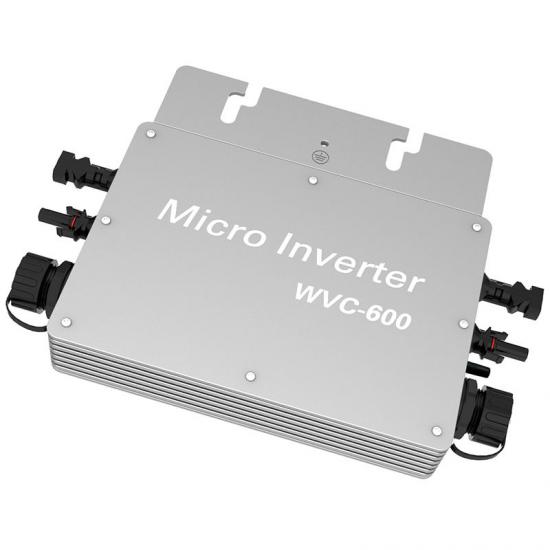

Whaleflo Factory Grid Tie  Solar Inverters 600W WVC-600 Micro Inverter for Home

Product Introduction


Whaleflo WVC-600W grid-tied inverter 600W

Grid-tie Inverter System.
A solar micro-inverter is a device used in photovoltaics that converts direct current (DC) generated by a single solar module to alternating current (AC). Microinverters contrast with conventional string and central solar inverters, which are connected to multiple solar modules or panels of the PV system.

Microinverters have several advantages over conventional inverters.
1. Small amounts of shading, debris or snow lines on any one solar module, or even a complete module failure, do not disproportionately reduce the output of the entire array.
2. Each microinverter harvests optimum power by performing maximum power point tracking for its connected module.
3. Simplicity in system design, lower amperage wires, simplified stock management and added safety are other factors introduced with the microinverter solution.

Micro grid-connected inverter

WVC SERIES communication type intelligence
Maximum power point tracking
Reverse power transmission
I/O, fully isolated
No installation,no maintenance
Adaptive voltage/frequency
Internal high-precision meter
App monitoring system
Forward full-bridge topology



On grid WVC-600 single phase and three phase 12/24V to 110/220V grid tie power inverter
Solar Photovoltaic Power Generation System Sine Wave WVC-600 Micro Inverter 600W Grid Tied Inverters
Product Parameters
Product Parameters

High-performance maximum power point tracking (MPPT)

Reverse power transmission

Intelligent monitoring management

Input /output is fully isolated to protect the electrical safety

Multiple parallel stacking

Digital control system

Simplify maintenance (user serviceable)

Operation and maintenance costs low

Flexible installation

Use the wireless 433MHz communication mode

Model

WVC-600

Maximum input power

2×350Watt

Output voltage mode

120/230V Auto Switch

PV Open circuit voltage

30-60Voc

Operating voltage range

22-60V

Starting voltage range

22-60V

short-circuit current

30A

Maximum working current

24A

Output parameters

@120V

@230V

Maximum Output Power

600watt

600watt

Rated output power

580watt

580watt

Output current

5A

2.6A

AC voltage range

80-160VAC

180-280VAC

Number of branch connections.

6 units

12 units

AC frequency range

47.5-52/57.5-62Hz

Power factor

>95%

Output efficiency

Static MPPT efficiency

99.5%

Max output efficiency

95%

Loss of power at night

<0.5w

Total current harmonics

<5%

Appearance and technical features

Size(L×W×H)mm

283×200×41.6

Net amount

1.56kg

Waterproof grade

IP65

Temperature range

-40°C to +65°C

Heat dissipation mode

Self-cooling

Communication mode

433MHz

Power transmission mode

Reverse transmission, Load priority

Monitoring system

Mobile phone APPBrowser

Electromagnetic compatibility

EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1

Power grid

EN61000-3-2 EN62109.UL STD.1741

Power grid detection

DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A

certificate

Industrial DesignPatent For Invention,CE


 On grid WVC-600 single phase and three phase 12/24V to 110/220V grid tie power inverter
Solar Photovoltaic Power Generation System Sine Wave WVC-600 Micro Inverter 600W Grid Tied InvertersSolar Photovoltaic Power Generation System Sine Wave WVC-600 Micro Inverter 600W Grid Tied Inverters
