Whaleflo 4KW Power Frequency Direct Drive Solar Photovoltaic Water Pump 2T/H 320M Head
Whaleflo offer practical, professional and affordable solar powered water pump system to residential, commercial and industrial application. Whaleflo solar water pump system mainly consists of solar panels, the specialized pump inverter, cable, battery and water pump etc.
Product Advantage
Higher energy efficiency on lift & flow rate 15% than others, special Imported fresh POM material impeller. 20,000 hours life for DC brushless motor continuous working & pump not just clean water. Working environmental extremes Continuous working 10 h/day; Life: 5 years.
Adopt Japanese MITSUBISHI IGBT module, three-phase direct drive variable frequency energy-saving MPPT tracking solar photovoltaic water pump, which is used for high-lift household water intake and small-area agricultural irrigation.
Model:4SP2/60-4
Power:4kW
MPPT Volt:540Volt
Open Volt:750V
Max Lift:420Meters
Rated Lift:320Meters
Rated Flow:2T/H
Weight:38kg
pump dia:96mm,height:2146mm
Product Benefit
* Wide working voltage.
* Built-in MPPT controller which can make the best use of solar energy.
* Over-voltage protection / Under-voltage protection: The pump will stop working automatically when the voltage is too high or too low; Then it will detect the voltage every 10 minutes, and it will start to work automatically when the voltage is between the working voltage range of the pump.
* The pump can be directly connected to solar panels without controller in sunshine.
Note: Do not operate for long time when there is no water in the pump. We will not offer warranty if the pump was damage for the reason of water shortage.

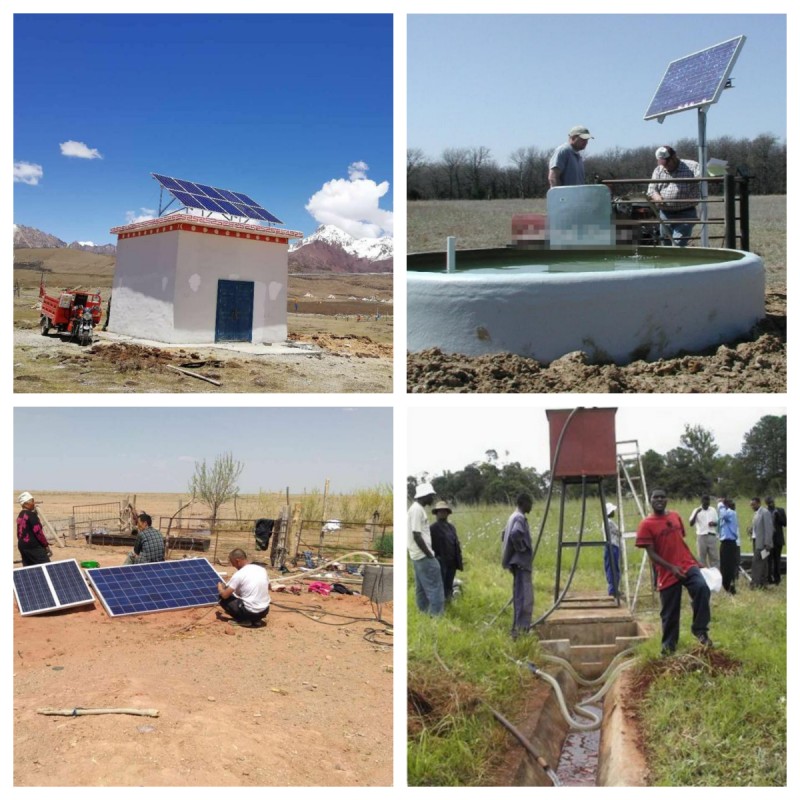

Application
1. Tank/Cistern filling
2. Village or family water supply
3. Water supply for farm
4. Garden/courtyard irrigation systems
5. Livestock watering
6. Swimming pool filling
7. Fountains
8. Water supply for bivouac or camping car
9. Solar water circulating system
10. Renewable energy projects

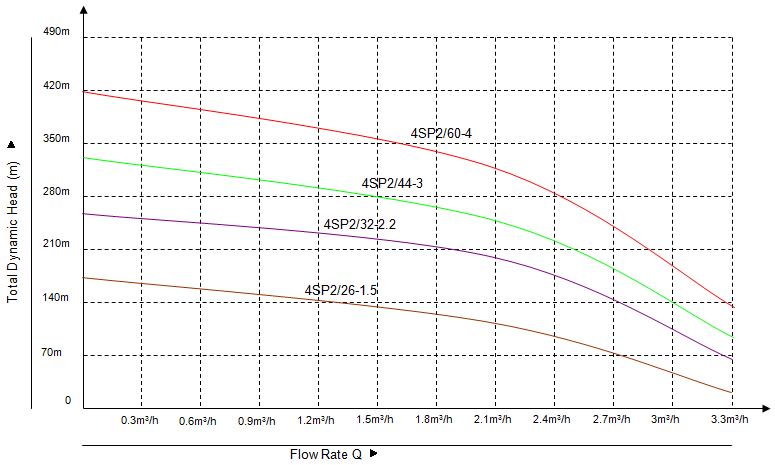

2T/h water flow series solar pump
|
model |
power |
MPPT voltage |
open-circuit voltage |
Rated head |
Max head |
Rated flow |
Water inlet |
Water outlet |
IP grade |
|
KW |
V |
V |
m |
m |
T/H |
mm |
Inch |
||
|
4SP2/26-1.5 |
1.5 |
540V |
750V |
120 |
159 |
2 |
100 |
1.25/1.5 |
IP68 |
|
4SP2/32-2.2 |
2.2 |
540V |
750V |
190 |
252 |
2 |
100 |
1.25/1.5 |
IP68 |
|
4SP2/44-3 |
3 |
540V |
750V |
250 |
332 |
2 |
100 |
1.25/1.5 |
IP68 |
|
4SP2/60-4 |
4 |
540V |
750V |
320 |
420 |
2 |
100 |
1.25/1.5 |
IP68 |
4T/h water flow series solar pump
|
model |
power |
MPPT voltage |
open-circuit voltage |
Rated head |
Max head |
Rated flow |
Water inlet |
Water outlet |
IP grade |
|
KW |
V |
V |
m |
m |
T/H |
mm |
Inch |
||
|
4SP4/18-1.5 |
1.5 |
540V |
750V |
90 |
110 |
4 |
100 |
1.5/2 |
IP68 |
|
4SP4/22-2.2 |
2.2 |
540V |
750V |
110 |
151 |
4 |
100 |
1.5/2 |
IP68 |
|
4SP4/32-3 |
3 |
540V |
750V |
150 |
206 |
4 |
100 |
1.5/2 |
IP68 |
|
4SP4/48-4 |
4 |
540V |
750V |
200 |
268 |
4 |
100 |
1.5/2 |
IP68 |
|
4SP4/52-5.5 |
5.5 |
540V |
750V |
250 |
337 |
4 |
100 |
1.5/2 |
IP68 |
6T/h water flow series solar pump
|
model |
power |
MPPT voltage |
open-circuit voltage |
Rated head |
Max head |
Rated flow |
Water inlet |
Water outlet |
IP grade |
|
KW |
V |
V |
m |
m |
T/H |
mm |
Inch |
||
|
4SP6/15-1.5 |
1.5 |
540V |
750V |
59 |
88 |
6 |
100 |
1.5/2 |
IP68 |
|
4SP6/22-2.2 |
2.2 |
540V |
750V |
84 |
126 |
6 |
100 |
1.5/2 |
IP68 |
|
4SP6/30-3 |
3 |
540V |
750V |
118 |
164 |
6 |
100 |
1.5/2 |
IP68 |
|
4SP6/38-4 |
4 |
540V |
750V |
152 |
227 |
6 |
100 |
1.5/2 |
IP68 |
|
4SP6/46-5.5 |
5.5 |
540V |
750V |
194 |
290 |
6 |
100 |
1.5/2 |
IP68 |
8T/h water flow series solar pump
|
model |
power |
MPPT voltage |
open-circuit voltage |
Rated head |
Max head |
Rated flow |
Water inlet |
Water outlet |
IP grade |
|
KW |
V |
V |
m |
m |
T/H |
mm |
Inch |
||
|
4SP8/12-1.5 |
1.5 |
540V |
750V |
40 |
64 |
8 |
100 |
1.5/2 |
IP68 |
|
4SP8/15-2.2 |
2.2 |
540V |
750V |
55 |
87 |
8 |
100 |
1.5/2 |
IP68 |
|
4SP8/21-3 |
3 |
540V |
750V |
75 |
116 |
8 |
100 |
1.5/2 |
IP68 |
|
4SP8/30-4 |
4 |
540V |
750V |
105 |
162 |
8 |
100 |
1.5/2 |
IP68 |
|
4SP8/40-5.5 |
5.5 |
540V |
750V |
130 |
209 |
8 |
100 |
1.5/2 |
IP68 |
10T/h water flow series water pump
|
model |
power |
MPPT voltage |
open-circuit voltage |
Rated head |
Max head |
Rated flow |
Water inlet |
Water outlet |
IP grade |
|
KW |
V |
V |
m |
m |
T/H |
mm |
Inch |
||
|
4SP10/10-1.5 |
1.5 |
540V |
750V |
32 |
55 |
10 |
100 |
1.5/2 |
IP68 |
|
4SP10/12-2.2 |
2.2 |
540V |
750V |
50 |
79 |
10 |
100 |
1.5/2 |
IP68 |
|
4SP10/17-3 |
3 |
540V |
750V |
65 |
109 |
10 |
100 |
1.5/2 |
IP68 |
|
4SP10/21-4 |
4 |
540V |
750V |
80 |
139 |
10 |
100 |
1.5/2 |
IP68 |
|
4SP10/25-5.5 |
5.5 |
540V |
750V |
95 |
170 |
10 |
100 |
1.5/2 |
IP68 |
|
4SP10/32-7.5 |
7.5 |
540V |
750V |
120 |
206 |
10 |
100 |
1.5/2 |
IP68 |
12T/h water flow series water pump
|
model |
power |
MPPT voltage |
open-circuit voltage |
Rated head |
Max head |
Rated flow |
Water inlet |
Water outlet |
IP grade |
|
KW |
V |
V |
m |
m |
T/H |
mm |
Inch |
||
|
4SP12/7-1.5 |
1.5 |
540V |
750V |
30 |
52 |
12 |
100 |
1.5/2 |
IP68 |
|
4SP12/11-2.2 |
2.2 |
540V |
750V |
40 |
72 |
12 |
100 |
1.5/2 |
IP68 |
|
4SP12/15-3 |
3 |
540V |
750V |
55 |
91 |
12 |
100 |
1.5/2 |
IP68 |
|
4SP12/19-4 |
4 |
540V |
750V |
65 |
111 |
12 |
100 |
1.5/2 |
IP68 |
|
4SP12/23-5.5 |
5.5 |
540V |
750V |
75 |
130 |
12 |
100 |
1.5/2 |
IP68 |
|
4SP12/28-7.5 |
7.5 |
540V |
750V |
103 |
176 |
12 |
100 |
1.5/2 |
IP68 |

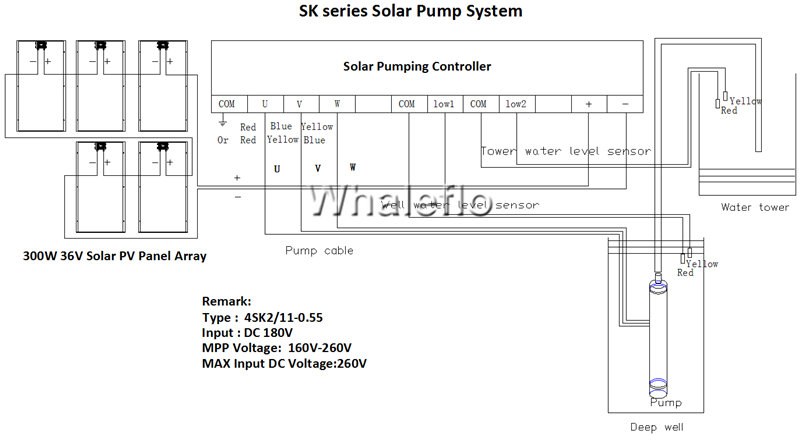

Installation
