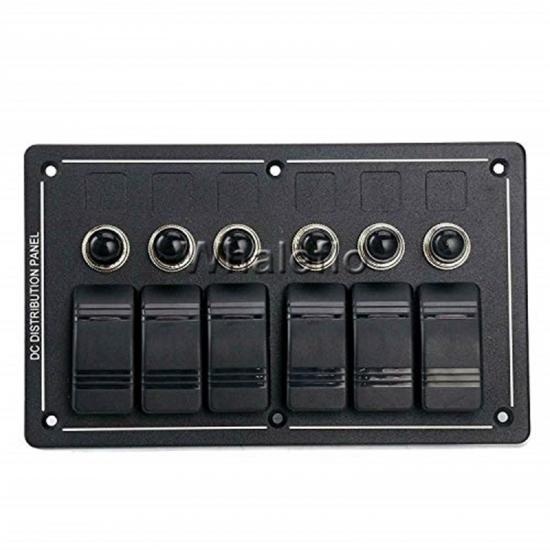

Whaleflo 6 Gang Waterproof Marine Boat Rv Switch Panel Horizontal
Features:
- High quality, made of ABS.
- With rubber seal-cap to keep it water-tight, best for marine.
- Overload protection
- Splash proof, anti-corrosion

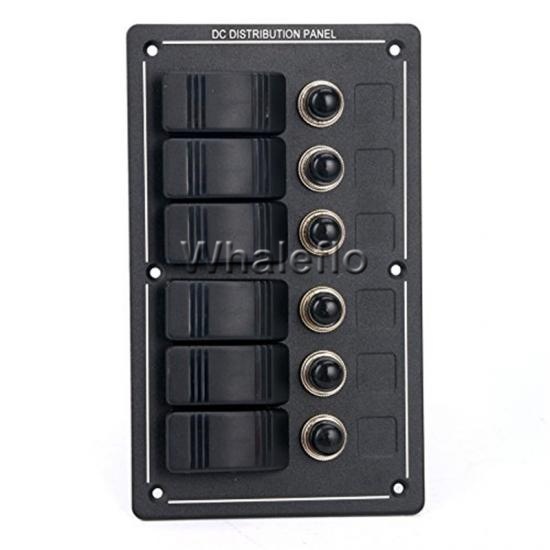

- Easy to install, can be installed horizontally or vertically.
Specifications:
Switch Rating： 12V 20A ／24V 10A DC
Panel Rating ： Maximum Cumulative Amp：45A
Rocker Switch【SPST／ON-OFF】×6
Circuit Breakers：5A×3、10A×2、15A×1
（Fuse Holders：5A×3、10A×2、15A×1）
Stainless Steel Screw ×6
Nitrile Rubber Gasket【2.0mm】 ×1

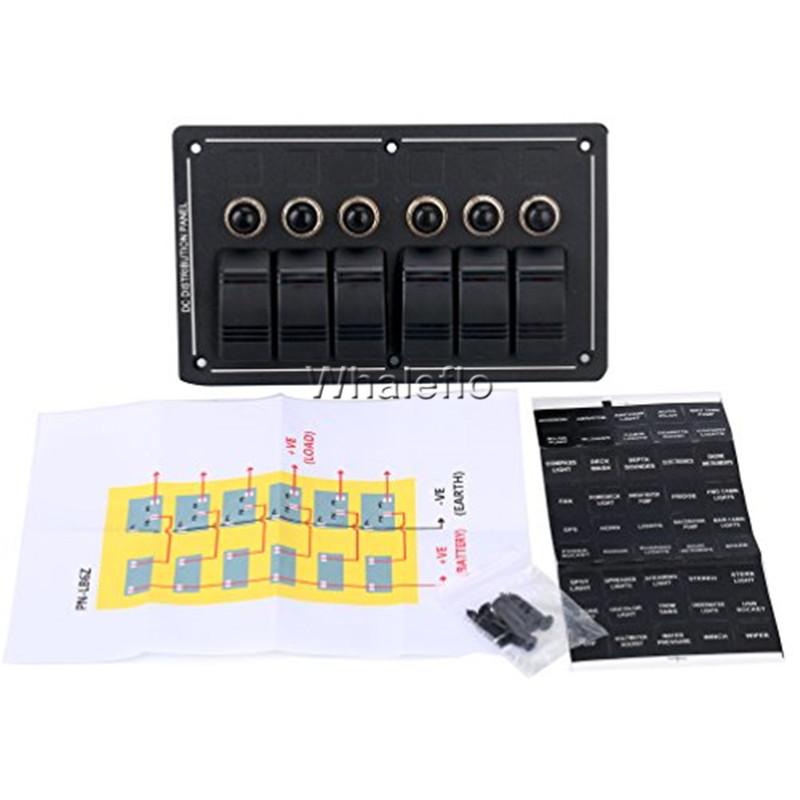

Indication Label ×45
Electrical wiring【 UL／1015】
Size of Panel：130.0mm×100.0mm
Size of Hole： 107.0mm×82.0mm
Certification：CE IP65
