Whaleflo Acid Resistance 220V Magnetic Water Pump
The magnetic pump usescorrosion-resistant, high-strength engineering plastics,steel jade ceramics, which have goodanti-corrosion propertiesand can prevent the transported medium from being contaminated.
The magnetic pump replaces thesealing ringwith a static sealing ring, so that the pump is completely sealed, andthe sealing problem is completely solved.
All copper motor, the magnetic rotating part ismade of ferrite as the main material, the overcurrent part is made of stainless steel, and the most widely used non-leakage magnetic drive centrifugal pump
Whaleflo pump application
Chemical industry, pharmaceutical industry, daily necessities industry, food industry, machinery industry, electronics industry, electroplating industry, photo industry, mining, metal industry, pharmacy, electrical appliance industry, water treatment, pollution control
Whaleflo mag pump technical data
|

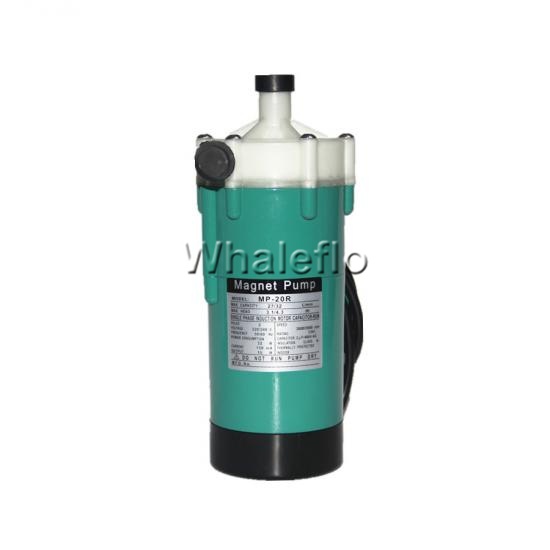

MP-20R Magnetic Drive Pump Technical Specifications
|
|
|
Model:
|
MP-20R
|
|
Tube Interface Inlet:
|
18mm
|
|
Tube Interface Outlet:
|
18mm
|
|
Max. Capacity;
|
27L/min(50Hz); 32L/min(60Hz)
|
|
Max.Head:
|
3.4M(50Hz); 4.3M(60Hz)
|
|
Standard Capacity:
|
17L/min(50Hz); 22L/min(60Hz)
|
|
Standard Head:
|
2m
|
|
Specific Gravity:
|
<1.3
|
|
Medium Temperature:
|
0℃-100℃
|

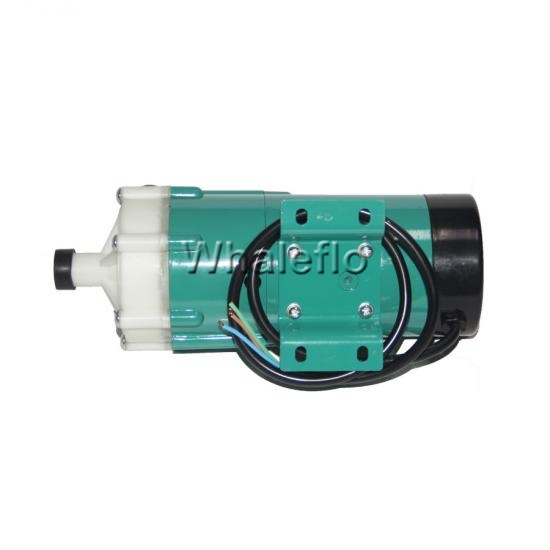

Whaleflomag pump parts
Whaleflo mag working curve
APPLICATION FOR WHALEFLO MAGNETIC PUMP:
1.Chemical industrial sodium carbonate (hydrochloric acid, hydrofluoric acid, secondary chemicals production); The production offluoride and chemical fertilizers; Circulation of reaction liquid in gas absorption tower; Oil refining (sulfuric acid); Recovery andregeneration system of waste acid; Transportation of strong acids between chemical plants and vehides.
2.Shine chemicals for pharmaceutical industy, semiconductor (EL), pesticide, medicine, water treatment chemicals production
3.Electroplating industry circulation-filtering various plating solution.
4.Instant photography photo industry system; X-ay films, black and white, color, three dimensional picture of sun.
5.Electrical appliance industry, electrolytic capacitor production (erosion of aluminum film); Batteries and battery manufacturingprocess of transporting electrolyte;
6.Circuit board etching; High purity chemical liquid semiconductor manufacturing process.
7.Metal industrial alumina film processing equipment; Wire drawing, degreasing and picking steel rlling;
8.Vehicle degreasing and pickling treatment before painting; Titanium oxide, the production of rare earth elements, etc.
9.Mining metal melting (transportation and circulation of electrolyte); Washing of liquid waste.
10.The production ofod industry and glucose acid (hydrochloric acid); Extractionof edible oil (ulfric acid);Canned fruit industry
11.Medical artificial kidney, heart and lung, utrasonic cleaning machine, and various medical equipment.
12.Water cleaning ion exchange resins; Pure water production equipment; Seawater desalination equipment.
13.Pollution contro of sewage treatment chemicals is added to the liquid cylinder; Collecting and transporting waste liquid;
14.Waste gas absorption equipment (deodorization device, discharge waste gas desulfurization).
15.Other applications in silver recovery, wafer manufacturing, experimental factory, refrigerator, drink machine,life of boiler, heatexchanger, solar system, bleaching, laser systems and other fields and fountain, fish pond, ornamental fish tank circulation use.
