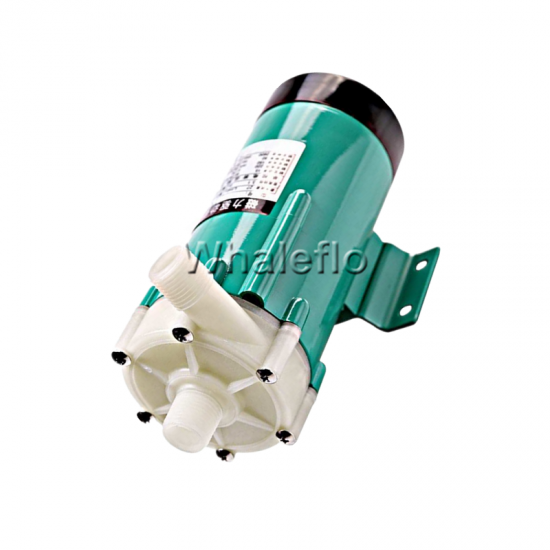

Whaleflo MP-20RM Magnetic Drive Water Pump 1620LPH - Food Grade Industrial Pump

Widely used in chemical industry,water treatment,food industry, brew beer etc.


  • Product Origin:

    Xiamen, China
  • Brand:

    Whaleflo
  • Item NO.:

    MP-20RM
  • Shipping Port:

    Xiamen port,Ningbo port,Shenzhen port, Qingdao port, Ningbo port Etc
  • Lead Time:

    5-25 working days
  • Payment:

    T/T, PAYPAL, WESTERN UNION,MONEY GRAM,L/C AT

Hot Products

Products Description

Whaleflo MP-20RM Magnetic Drive Water Pump 1620LPH - Food Grade Industrial Pump

Specifications:
  • Rated power: 20W
  • Voltage: 220-240V
  • Frequency: 50Hz
  • Delivery height max : 3.1m
  • Capacity max :1620LPH
  • The screw thread interface of Inlet and Outlet : 1/2 inch (16mm)
  • Rating: Continuous
Design for :

  • Magnetic Drive pumps are ideal for salt water aquariums and live fish holding tanks.
  • Circulation of water for healthy pond, create wow factor with a water feature or run a fish or hydroponics without the large electricity bill.
  • Anti-corrosion design, has an excellent performance to endure the corrosion from salt or sea water Liquid and also suitable for food industry.

Feature:

  • Design without axle sleeve, liquid passing through is sealed well without leakage;
  • Extraordinary high lift and large flow;
  • Anti-corrosion design, extensively used for industrial and aquariums- Ideal for salt water;
  • Heavy duty, durable and reliable;
  • In-line use only;
  • Thermal Overload Protection for the motor;
  • True Magnetic-drive pumps are completely sealed and do not have shaft seals to wear out.
  • Only a single casing O-ring is used and prevents the liquid from leaking.
  • It is manufactured using the latest engineering plastics to prevent corrosion.
  • The permanently split capacitor start (PSC) motors are totally enclosed fan cooled ( TEFC).
  • Continuously rated and Class E insulation,
  • Thermal overload protection and suitable for indoor use.
Magnetic drive circulate pump is a full-sealed pump,for motor connecting shaft and impeller are separately equipped with magnetic materials,they attract each other and coupled.It’s unnecessary to fit with traditional shaft seal.The rotation torsion of motor drives impeller to rotate through the attraction between driving magnet and driven magnet.The shortcoming of present customary magnetic drive pump is that rotation is absolutely prohibited under the condition of lacking liquid,otherwise,the machine will be destroyed,resulted in unnecessary troubles for customer.HOP adopts special ceramics as shaft bearing,characterizing strong resistance for abrasion and corrosion.

Magnetic drive circulate pump is generally designed for no shaft seal,completely avoids defects of pollution after corrosion caused by liquid leakage,which exists in traditional mechanical shaft seal pump.It is the optimum liquid transport pump on the industrial equipment.

Whaleflo mag technidal data

Whaleflomag pump parts

Whaleflo mag working curve

mag working curve

APPLICATION FOR WHALEFLO MAGNETIC PUMP:

1.Chemical industrial sodium carbonate (hydrochloric acid, hydrofluoric acid, secondary chemicals production); The production offluoride and chemical fertilizers; Circulation of reaction liquid in gas absorption tower; Oil refining (sulfuric acid); Recovery andregeneration system of waste acid; Transportation of strong acids between chemical plants and vehides.

2.Shine chemicals for pharmaceutical industy, semiconductor (EL), pesticide, medicine, water treatment chemicals production

3.Electroplating industry circulation-filtering various plating solution.

4.Instant photography photo industry system; X-ay films, black and white, color, three dimensional picture of sun.

5.Electrical appliance industry, electrolytic capacitor production (erosion of aluminum film); Batteries and battery manufacturingprocess of transporting electrolyte;

6.Circuit board etching; High purity chemical liquid semiconductor manufacturing process.

7.Metal industrial alumina film processing equipment; Wire drawing, degreasing and picking steel rlling;

8.Vehicle degreasing and pickling treatment before painting; Titanium oxide, the production of rare earth elements, etc.

9.Mining metal melting (transportation and circulation of electrolyte); Washing of liquid waste.

10.The production ofod industry and glucose acid (hydrochloric acid); Extractionof edible oil (ulfric acid);Canned fruit industry

11.Medical artificial kidney, heart and lung, utrasonic cleaning machine, and various medical equipment.

12.Water cleaning ion exchange resins; Pure water production equipment; Seawater desalination equipment.

13.Pollution contro of sewage treatment chemicals is added to the liquid cylinder; Collecting and transporting waste liquid;

14.Waste gas absorption equipment (deodorization device, discharge waste gas desulfurization).

15.Other applications in silver recovery, wafer manufacturing, experimental factory, refrigerator, drink machine,life of boiler, heatexchanger, solar system, bleaching, laser systems and other fields and fountain, fish pond, ornamental fish tank circulation use.
Whaleflo mag drive chemical pump application


Model
Flow 50/60HZ (L/min)
Head 50/60HZ (M)
Power 50/60HZ (W)
Packing Size(CM)
MP-6R
2.8/5
0.8
6
150*80*90
MP-6RZ
3.2/4.5
0.8
6
150*80*90
MP-10RN
5/8
1
6
150*80*90
MP-10RM
5/8
1
6
150*80*90
MP-15R
8/12
1.5
10
205*90*110
MP-15RN
8/12
1.5
10
205*90*110
MP-15RM
8/12
1.5
10
205*90*110
MP-20R
17/22
2
15
215*95*120
MP-20RM
17/22
2
15
215*95*120
MP-20RZ
7/10
4
15
220*90*130
MP-20RZM
7/10
4
15
220*90*130
MP-20RX
30/40
1
15
220*90*130
MP-30R
16/25
2.5
25
260*130*140
MP-30RM
16/25
2.5
25
260*130*140
MP-30RZ
10/14
6
25
245*130*140
MP-30RZM
10/14
6
25
245*130*140
MP-30RX
32/46
2
25
260*130*145
MP-30RXM
32/46
2
25
260*130*145
MP-40R
22/34
4
65
280*130*140
MP-40RM
22/34
4
65
280*130*140
MP-40RZ
10
8
65
250*130*160
MP-40RZM
10
8
65
250*130*160
MP-40RX
47/65
2
65
285*130*145
MP-40RXM
47/65
2
65
285*130*145
