Whaleflo Marine Engine Rotary Steering System YK7-B

Applicable for sterndrives,inboards and other power assisted


  • Product Origin:

    China
  • Brand:

    Whaleflo
  • Item NO.:

    YK7-B
  • Shipping Port:

    Xaimen,Shanghai,Shenzhen,Ningbo
  • Lead Time:

    5-25 working days
  • Payment:

    T/T,Paypal,Western Union Transfer,

Hot Products

Products Description

Whaleflo YK7-B Marine Engine Rotary Steering System

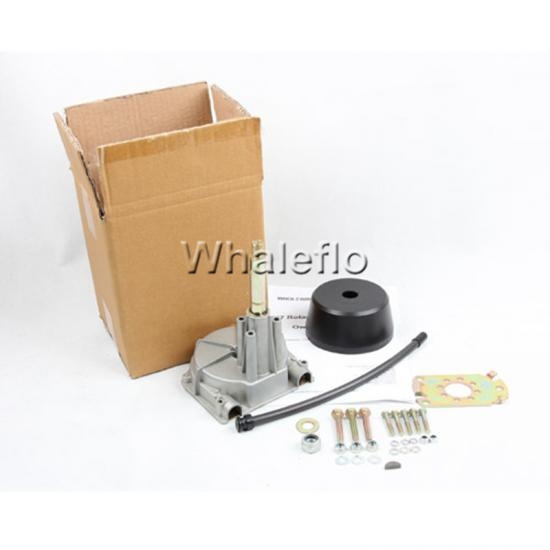

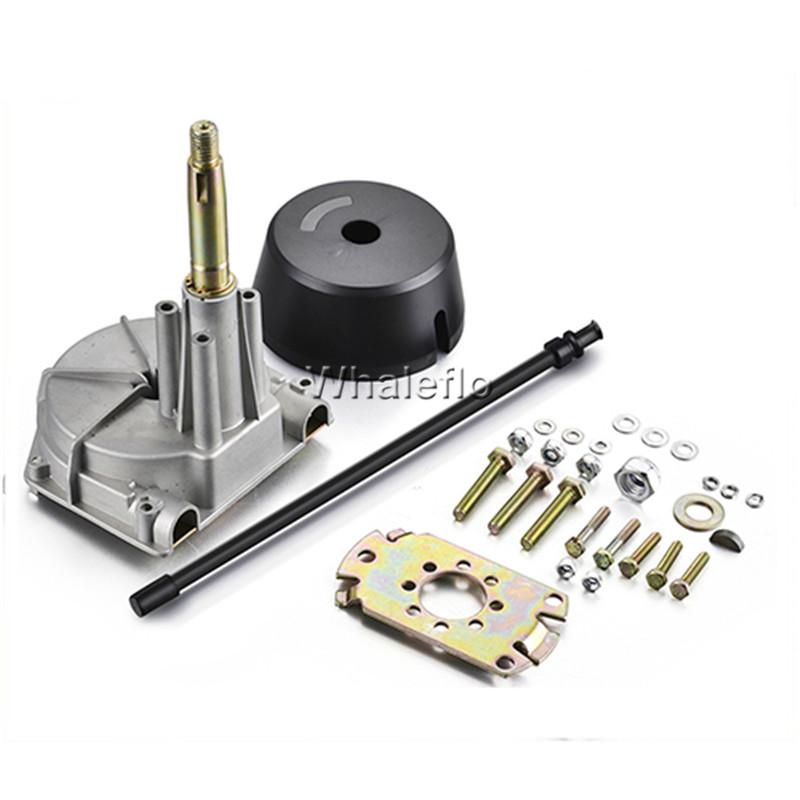

Thread Connect Rotary Steering System Consists of :


*Easy Connect Steering Helm :


          Steering Helm :Part No. : YK7-B


*Steering Cable : Part No :YK7-160-XX(XX is the length of the cable in feet )




*Bezel kits :




        Bezel kits -90 degree : Part No: YK7-K-1

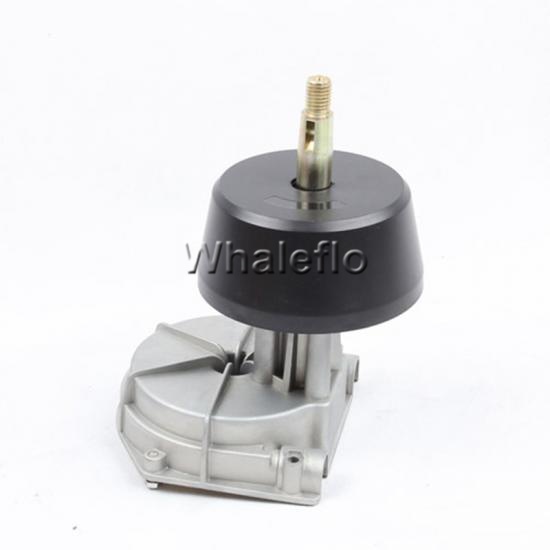

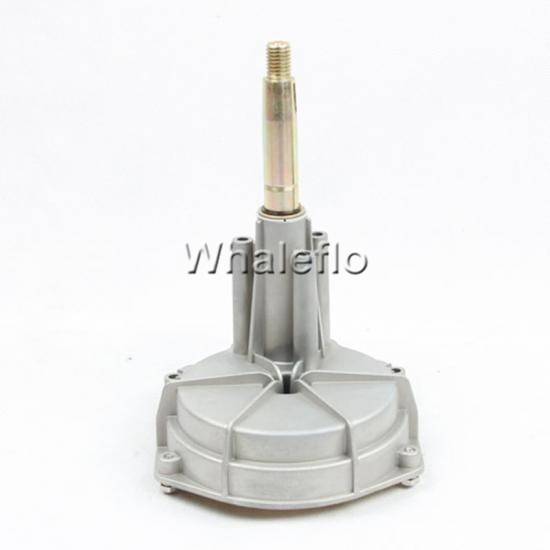

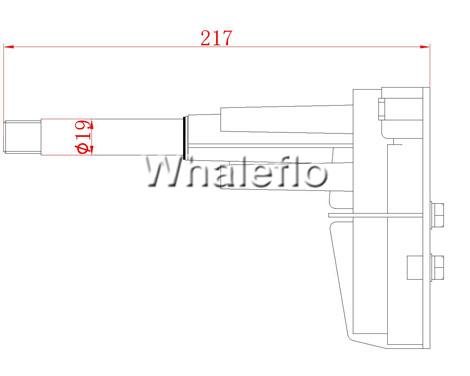

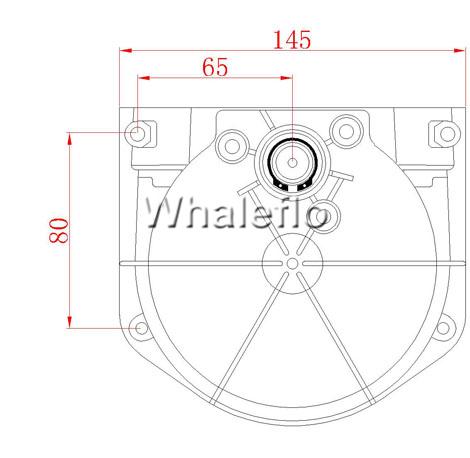

Steering Helm




YK7-B


-Thread connect, easy installation


-Applicable for boat length : 9mtrs for outboard and 10.5mtrs for inboard engine




Construction Details:


          -Helm Cover : High Press Die Cast Zinc Alloy , Shot Blast finishing


            -Shat : Galvanized Steel


-No. of steering Wheel Turns : 3 approx


-Max steering wheel dia. : 16inch(400mm)


-Minimal feedback


-The steering helm is a gearbox arrangement mounted on the dashboard of the boat.




Steering Cable




YK7-160-XX ( XX is the length of the cable in feet )


-Steering cable to be used with YK7 quick connect helm


-Output  ends of 316 stainless steel


-Maximum Stroke : 9inch (225mm)


-Minimum bend radius : 8inch(220mm)


-Maximum working load at tiller end : 5000N


-Cable Outer Diameter : 15.8mm


-Spiral inner cable diameter :8mm




Bezel Kits




Mounted between steering wheel and dash board


YK7-K-1/YK7-K-2


-Bezel kits made from engineering plastic


-Black color


-Related hardware contain nuts and screws

Whaleflo Rotary steering helm

whaleflo rotary steering helmwhaleflo rotary steering helm
