Whaleflo Zinc Alloy Quick Connect Marine Steering System
4 TURNS LOCK TO LOCK ZINC ALLOY (SHOT BLASTING) Can Replace to TELEFLEX SH4910P type
Steering System Consists of :
*Easy Connect Steering Helm :
Steering Helm :Part No. : YK7-A
*Steering Cable : Part No :WEL7-160-XX(XX is the length of the cable in feet )
*Bezel kits :
Bezel kits -90 degree : Part No: YK7-K-1
Bezel kits -20 degree : Part No: YK7-K-2

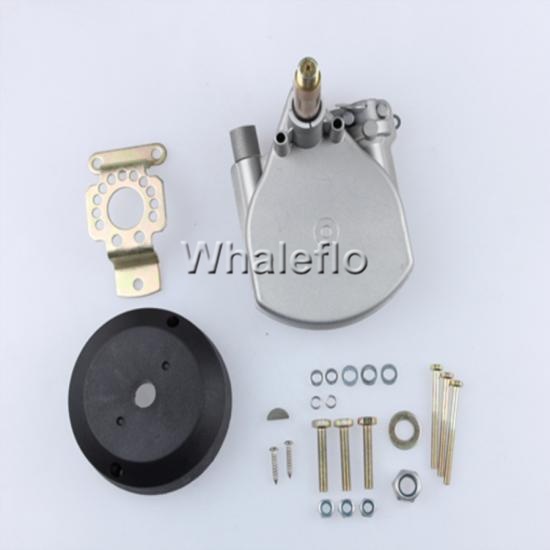

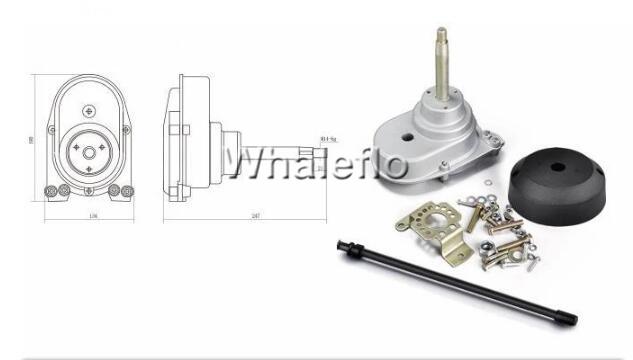

Steering Helm
YK7-A
-No feedback mechanism, avoids helmsman fatigue
-Applicable for boat length : 9mtrs for outboard and 10.5mtrs for inboard engine
Construction Details:
-Helm Cover : High Press Die Cast Zinc Alloy , Shot Blast finishing
-Shat : Galvanized Steel
-No. of steering Wheel Turns : 3 approx
-Max steering wheel dia. : 16inch(400mm)
-Easy connection
-The steering helm is a gearbox arrangement mounted on the dashboard of the boat.
|
Item |
No. of Steering Wheel Turns |
Stroke |
Max Wheel Size |
Max Boat HP |
Material |
Finishing |
|
Steering System |
4.2 Approx |
225mm |
360mm |
125 |
Zinc Alloy |
Shot Blasting |
