Whaleflo Solar Inverter 3000W Factory Price 3kw 24v Pure Sine Wave Solar Hybrid Inverter for Home System
Whaleflo GA series Inverters Features:
Lithium Battery Auto-restart Function.More Convenient for Lithium Battery Charging
Utility Charging Voltage/PV Charging Voltage Adjustable,Match Different Battery Charging Reguirements
Battery Reverse Connection Protection with Fuse Switch,Safer Installation
Support Working without Battery:Reduce Solar System Cost
High Precision of Output Voltage,±5%,Take Care of Your Appliances
Intelligent Power Supply Mode,Intelligent Distribution of Solar Panel/Mains/Battery Power Shares

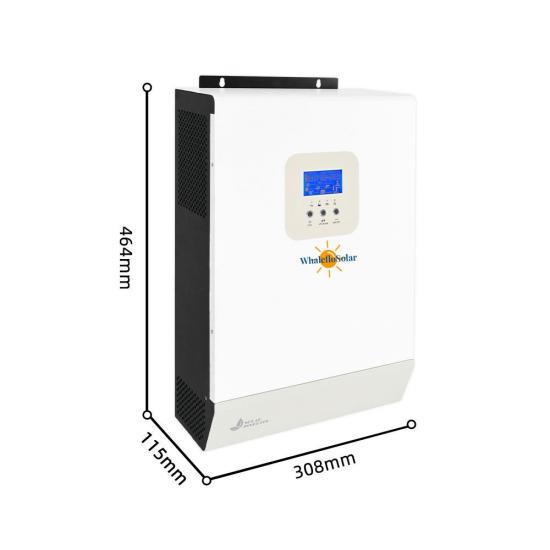

Slim Body,Convenient Installation and Transportation
PF1.0,High Efficiency,Lower Consumption.
Energy Conservation/Environmental Protection/Electricity Saving/Cost Saving
Parallel Function Up to Maximum 9 units:Enlarge More Loads
Communication Option:External WIFI,Supervise at Any Time
|
Model
|
GA3024ML
|
GA3024MH
|
|
|
Input
|
Phase
|
L+N+PE
|
|
|
Nominal Voltage
|
208/220/230/240VAC
|
||
|
Voltage Range
|
154-264VAC±3V（Normal Mode) 185-264VAC±3V（UPS Mode）
|
||
|
Frequency Range
|
50Hz/60Hz(Adaptive)
|
||
|
Output
|
Rated Power
|
3000W
|
3000W
|
|
Output Voltage(AC)
|
208/220/230/240VAC±5%
|
||
|
Output Frequency
|
50/60Hz±0.1%
|
||
|
Waveform
|
Pure sine wave
|
||
|
Transfer Time( Optional)
|
10ms for computer , 20ms for home appliances
|
||
|
Peak power
|
6000VA
|
6000VA
|
|
|
Peak efficiency (battery mode)
|
>94%
|
>94%
|
|
|
Battery
|
Rated voltage
|
24Vdc
|
24Vdc
|
|
Constant voltage charging voltage (Optional)
|
28.2Vdc
|
28.2Vdc
|
|
|
Floating charge voltage (Optional)
|
27Vdc
|
27Vdc
|
|
|
charger
|
PV charging method
|
MPPT
|
MPPT
|
|
PV max input power
|
1500W
|
3500W
|
|
|
MPPT tracking range
|
30~115Vdc
|
120~430Vdc
|
|
|
Max PV input voltage
|
145Vdc
|
450Vdc
|
|
|
Max PV charging current
|
60A
|
60A
|
|
|
Max AC charging current
|
60A
|
60A
|
|
|
Max charging current
|
120A
|
60A
|
|
|

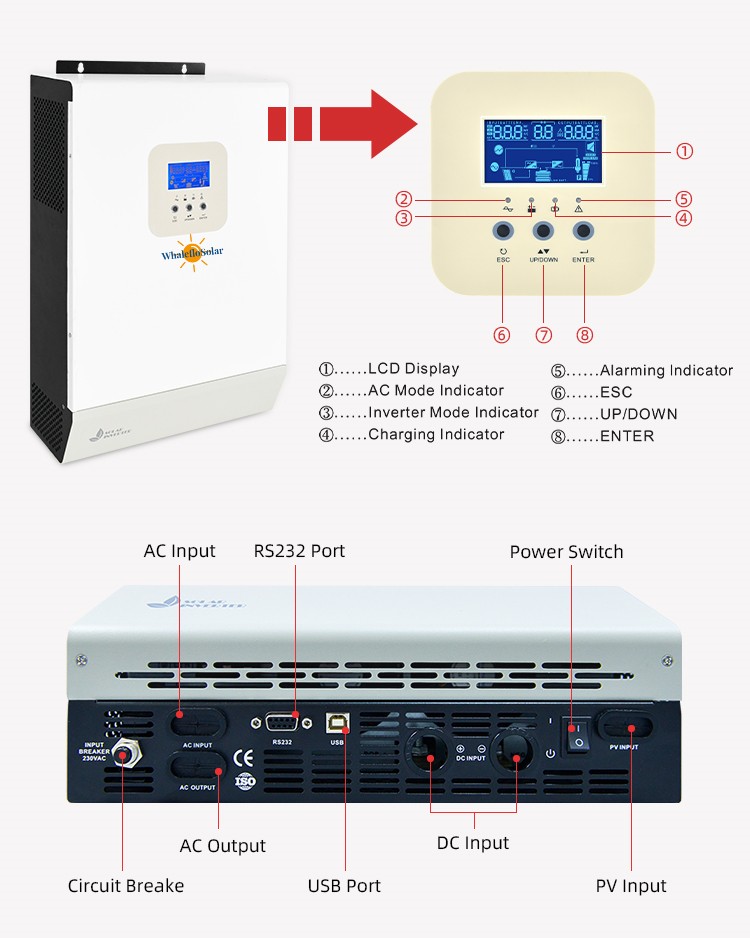

Communication port
|
RS232
|
5PIN/Pitch2.0mm, baud rate 2400
|
|
|
Expansion & configuration port
|
2×5PIN/Pitch2.54mm, lithium battery BMS communication card,
WIFI card, dry contact card, etc.
|
||
