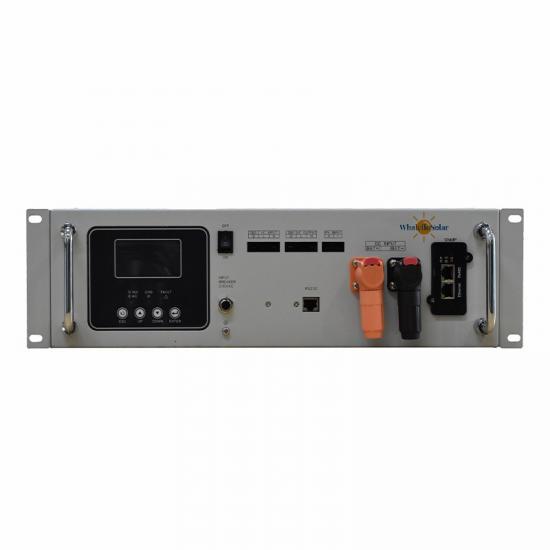

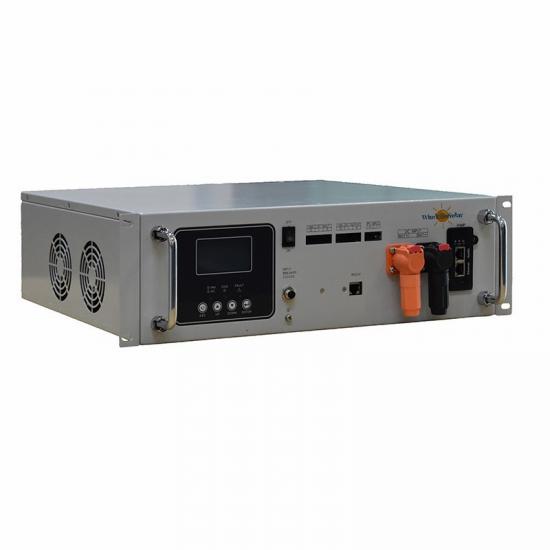

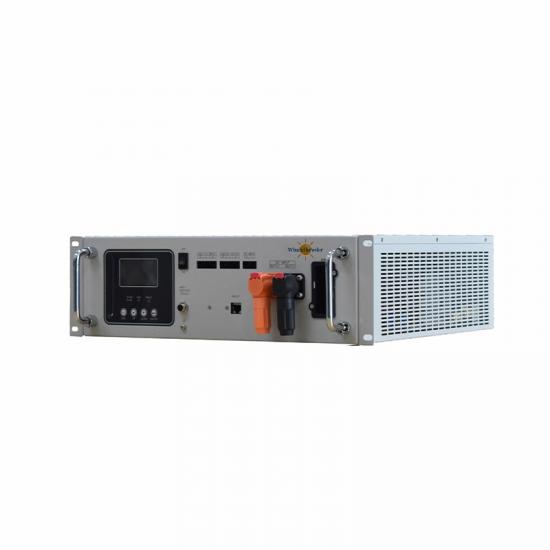

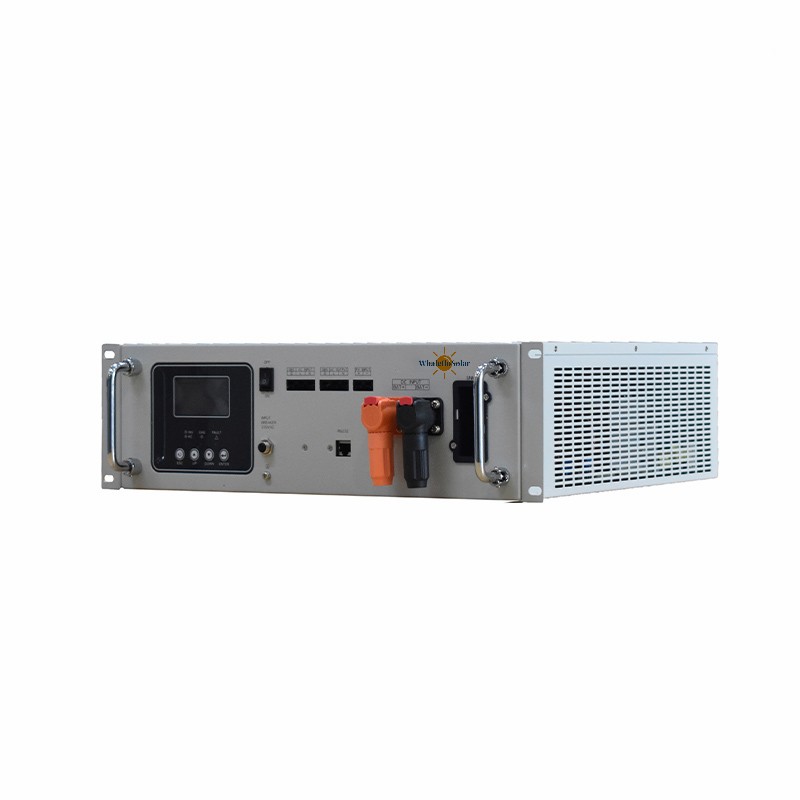

WhalefloSolar 48V DC 5.5kVA 5.5kW Off-Grid Solar Inverter

Description

Introducing the Whaleflo Rack Mount Solar Inverter 5.5kW – a cutting-edge solution that seamlessly integrates with PYLON batteries to redefine your solar power experience. This high-performance inverter is designed to elevate your energy independence with efficiency and versatility.

Key Features:

Robust Power Output:

With a 5.5kW power rating, the Whaleflo Rack Mount Solar Inverter delivers a robust and reliable energy supply for your home or business.

PYLON Battery Compatibility:

Engineered to work seamlessly with PYLON batteries, this inverter optimizes energy storage and consumption, ensuring a smooth and efficient power flow.

Rack Mount Design:

The space-saving rack mount design not only enhances the aesthetics of your solar setup but also allows for convenient installation in various spaces.

Intelligent Energy Management:

Experience advanced energy management with intelligent features such as configurable charging currents and priority settings, giving you control over your power supply.

User-Friendly LCD Display:

Navigate and customize settings effortlessly through the intuitive LCD display, providing real-time information on performance and configurations.

Reliable Protection Mechanisms:

Benefit from overload, over-temperature, and short circuit protection, ensuring the safety of your system and appliances.

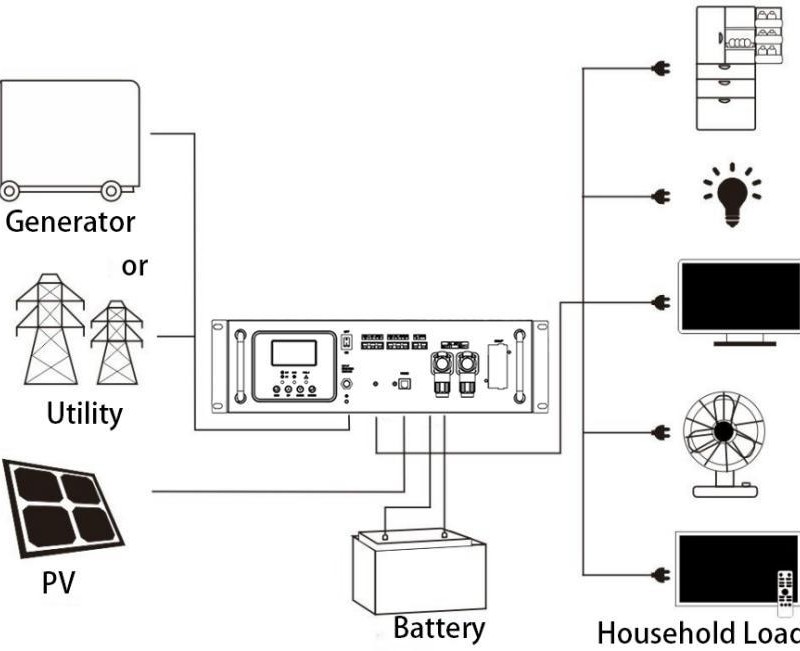

Versatile Input Sources:

The inverter is compatible with both mains and generator inputs, offering flexibility in adapting to different power sources.

Auto Restart Capability:

Enjoy uninterrupted power supply as the inverter automatically restarts when mains power is restored.

Remote Monitoring (Optional):

Stay connected with your energy system through optional remote monitoring capabilities, allowing you to monitor and control your solar inverter from anywhere.

Enhanced Battery Performance:

The smart battery charger design optimizes the performance of your PYLON batteries, maximizing their lifespan and efficiency.

Elevate your solar power setup with the Whaleflo Rack Mount Solar Inverter 5.5kW – a reliable, efficient, and seamlessly compatible solution designed to empower your energy independence. Embrace a new era of sustainable and intelligent energy management with this state-of-the-art solar inverter.

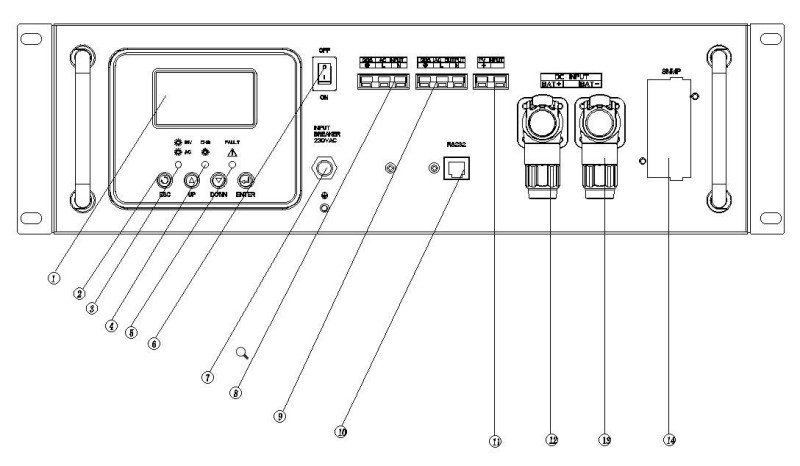

whaleflo rack inverter

1. LCD display

2. Function Keys

3. Status indicator

4. Charging indicator

5. Fault indicator

6. Power ON/OFF switch

7. Breaker

8. Mains input

9. Mains output

10. RS-232 communication port

11. PV input

12. Battery Positive Industrial Connector

13. Battery Negative Industrial Connector

14. SNMP smart card slot

Technical Parameters:

Rated Output Power	3.5KW	5.5KW
Output Voltage Waveform	Pure Sine Wave
Output Voltage Regulation	230Vac±5%
Output Frequency	50Hz
Peak Efficiency	93%
Overload Protection	5s@±150%load; 10s @110%～150%load
Surge Capacity	2* rated power for 5 seconds
Nominal DC Input Voltage	24.0Vdc	48.0Vdc
Cold Start Voltage	23.0Vdc	46.0Vdc
Low DC Warning Voltage load<50% load≥50%	23.0Vdc	46.0Vdc
Low DC Warning Voltage load<50% load≥50%	22.0Vdc	44.0Vdc
Low DC Warning Return Voltage load<50% load≥50%	23.5Vdc	47.0Vdc
Low DC Warning Return Voltage load<50% load≥50%	23.0Vdc	46.0Vdc
Low DC Cut-off Voltage load<50% load≥50%	21.5Vdc	43.0Vdc
Low DC Cut-off Voltage load<50% load≥50%	21.0Vdc	42.0Vdc
High DC Recovery Voltage	32.0Vdc	62.0Vdc
High DC Cut-off Voltage	33.0Vdc	63.0Vdc
No Load Power Consumption	<35W
Safety Certification	CE
Operating Temperature Range	-10℃ to 50℃
Storage temperature	-15℃~60℃
Humidity	5%~95% Relative Humidity (Non-condensing)
Dimension (DWH), mm	300x110×475
Gross weight(kg)	10.5	11.5
