120W 24V 1200LPH Deep Well Submersible Solar Pump with Controller Head 56M

Ideal for household water supply,agricultural irrigation,annimal drinking water supply.
  • Product Origin:

    China
  • Brand:

    Whaleflo
  • Item NO.:

    3TPS1.2-56-24-120
  • Shipping Port:

    Xiamen,Shanghai,Qingdao,Ningbo,Shenzhen,Guangzhou Port
  • Lead Time:

    7-30 working days
  • Payment:

    T/T,Paypal,Western Union Transfer

Hot Products

Products Description

120W 24V 1200LPH Deep Well Submersible Solar Pump with Controller Head 56M



Ideal for household water supply,agricultural irrigation,annimal drinking water supply.garden,pool

Whaleflo SOLAR SCREW PUMPS 12v dc submersible brushless water pump for irrigation MODEL NAME:

3TPS1.2-56-24-120


VOLTAGE: DC24V POWER:120w MAX HEAD:56M OUTLET:0.75INCH







Dc solar water pump advantages

1. Permanent magnet BRUShless DC synchronous motor; Efficiency increase by 15%-20%; Energy saving; Reduce the use of solar panels

2. Copper or stainless steel outlet/connection/cylinder 3. Alloy mechanical seal, long service life, reliable work 4. Motor coil using automatic winding machine centralized line group, improve the efficiency of the wire machine 5. The pump parts are processed with high precision and automatic machine, and the dimension accuracy and smoothness are strictly controlled 6. Intelligent water shortage protection and full water protection

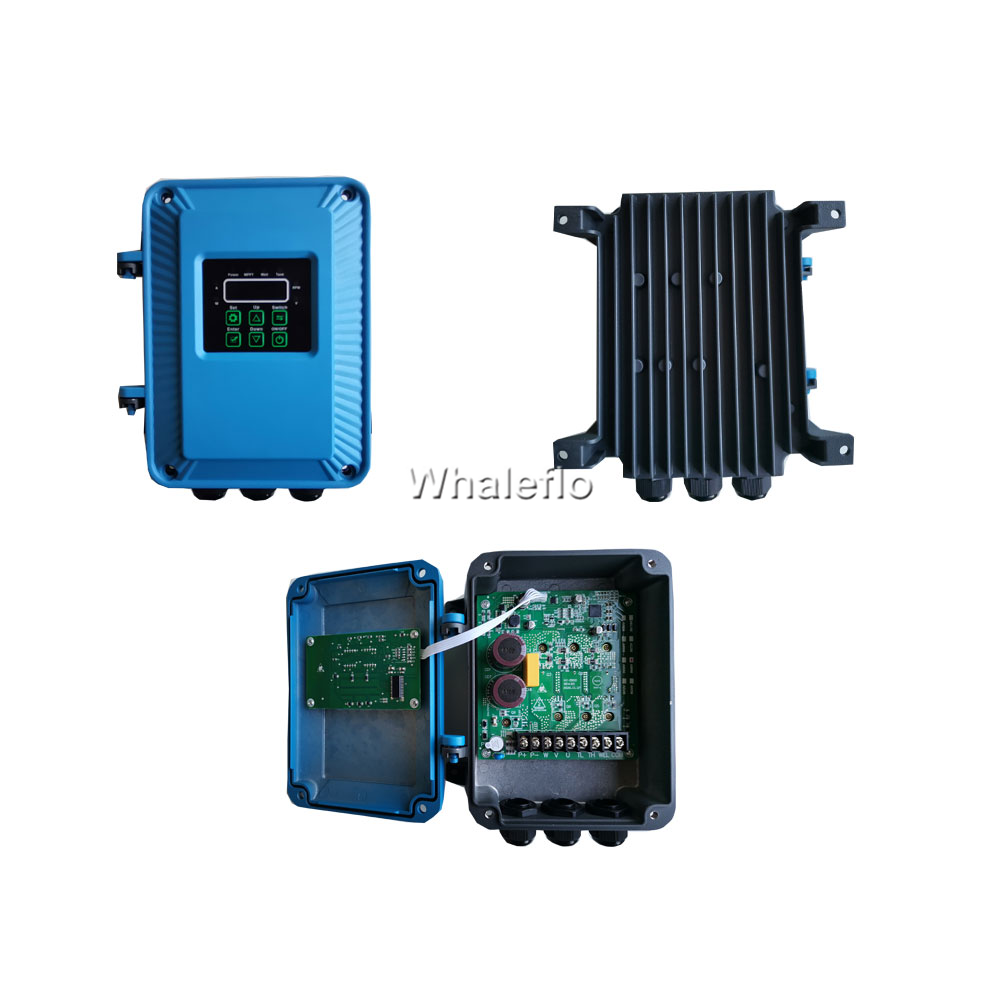

Dc controller:

(1) Waterproof grade: IP65

(2) Ambient temperature: -15ºC -60 ºC

(3) MMPT(Maximum power point tracking) function, the highest solar energy utilization

(4) Automatic charging function: ensure the normal operation of the solar pump while charging the battery; The battery can keep the solar pump working in the absence of sunlight

(5) Digital display of power, voltage, current, speed, and other working conditions and error code


(6) Frequency conversion function: it can automatically operate according to the sunlight power, and also can manually adjust the speed according to the actual demand
(7) Automatic startup and shutdown
(8) Good water sealing, double sealing effect
(9) Soft start: no impulse current, protect the pump motor

(10)High pressure/low pressure/overcurrent/high temperature protection

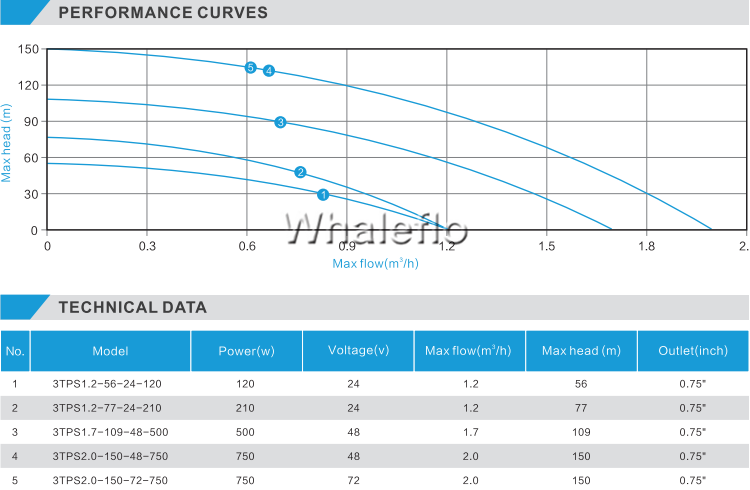

PRODUCT SPECIFICATIONS
Model Number
Power(w)
Voltage(V)
Max Flow(m³/h)
Max Head(m)
Outlet
3TPS1.2-56-24-120
120
24
1.2
56
0.75"
3TPS1.2-77-36-210
210
36
1.2
77
0.75"

3TPS1.7-109-48-500
500
48
1.7
109
0.75"

3TPS2.0-150-48-750
750
48
2.0
150
0.75"

3TPS2.0-150-72-750
750
72
2.0
150
0.75"
WHALEFLO SCREW SOLAR PUMP WITH S/S inlet/outlet

Whaleflo MPPT Controller Features

1. Automatically run when power enough or tank is not full. Automatically off when tank is full.
2. High waterproof grade: IP65, double seal effect in waterproof and leak-proof
2. Soft start technology: No impulse current, longer life for the pump motor.

3. High voltage/Low voltage/Over-current/High temperature protection

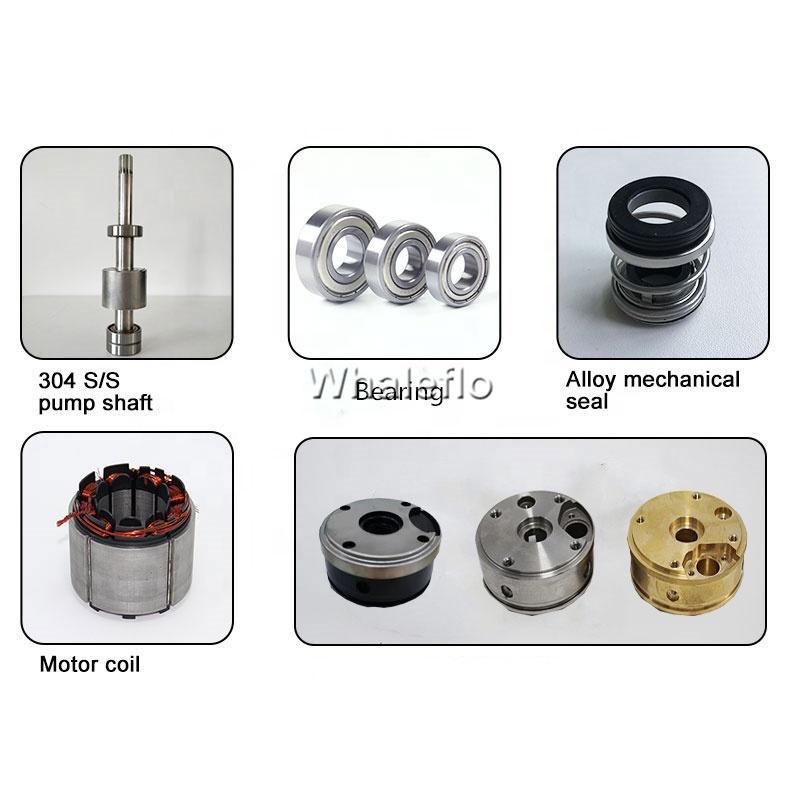

MATERIAL OF PARTS dc solar submersible pump body: stainless steel dc solar submersible pump motor body: stainless steel Impeller:plastic impeller

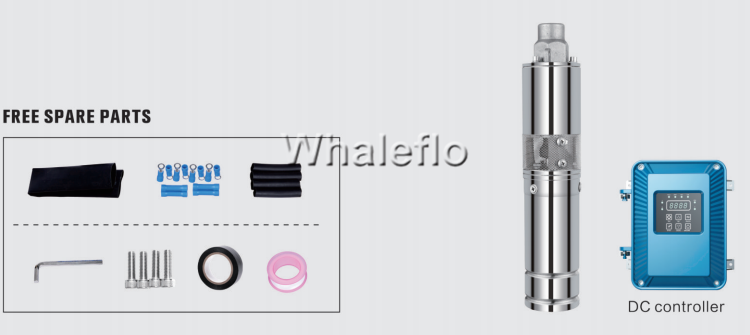

What You Need To Get By Yourself (Package DO NOT Include):
- Suitable solar panels. There’re some suggestions in the instruction book.
- A stainless steel wire ( called safety cable) to hold the pump in the bore. If pumping water from dam or river, a float set up required.
- A poly pipe from pump to the water tank.
- Wire power cable (3 wires plus earth). we recommend cable size at least thicker than the original cable in the pump.





A Free Consultation

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
