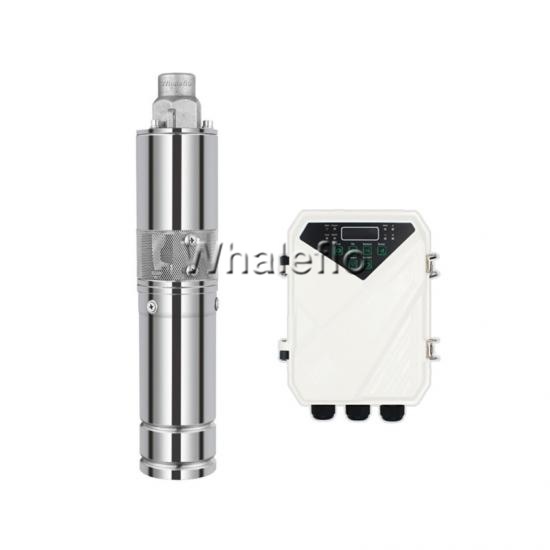

Whaleflo DC 48V 500W MPPT Controller Brushless Submersible Bore Solar Water Pump

Whaleflo  DC 48V 500W MPPT Controller Brushless Submersible Bore Solar Water Pump

Ideal for household water supply,agricultural irrigation,annimal drinking water supply.garden,pool

Whaleflo SOLAR SCREW PUMPS whaleflo 12v dc submersible brushless water pump for irrigation

VOLTAGE: DC48V POWER:500w MAX HEAD:109M

Flow:1.7M³/h OUTLET:0.75INCH 1 x 3" DC solar Pump with 2m cable 1 x Pump Controller with MPPT function 1 x Stainless steel float switch (sensor for the tank) 1 x Pump outlet joint connector 1 x Splice kit for cable join 1 x Splice kit for waterproof

Dc solar water pump advantages

1. Permanent magnet BRUShless DC synchronous motor; Efficiency increase by 15%-20%; Energy saving; Reduce the use of solar panels

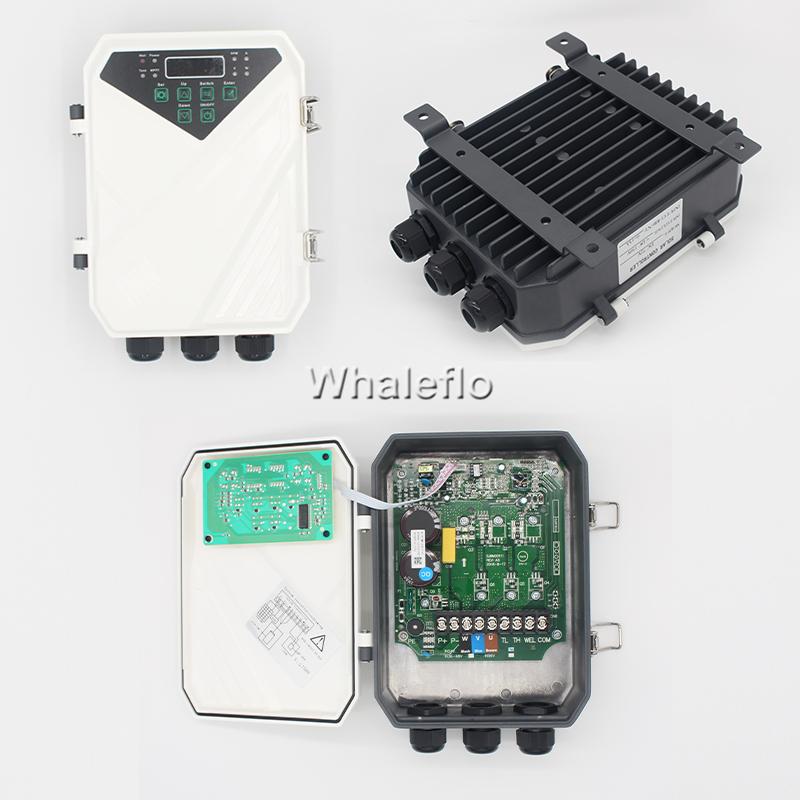

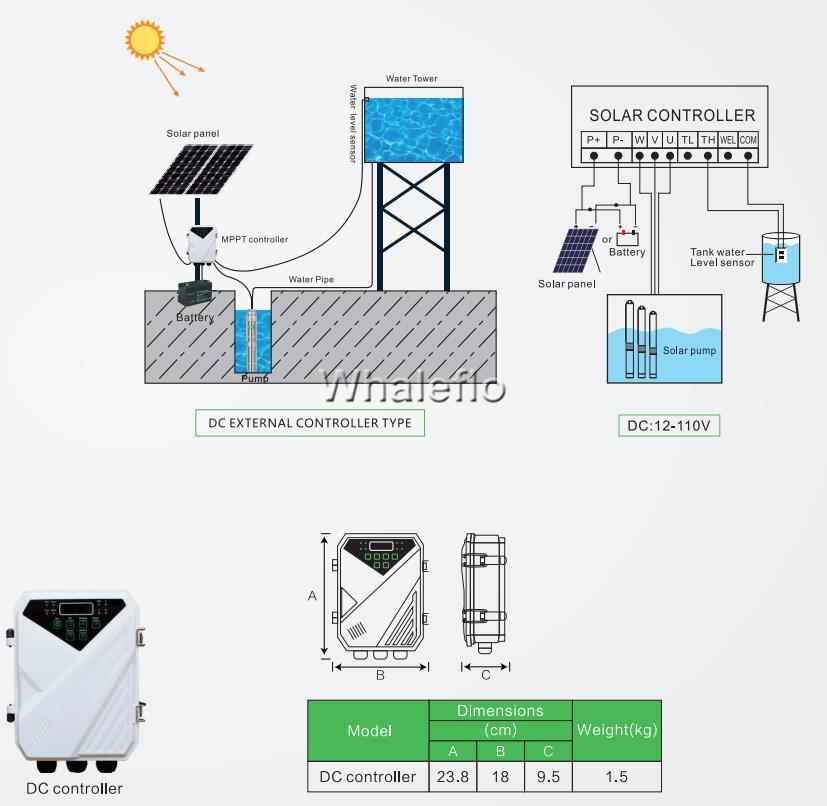

Dc controller:

(1) Waterproof grade: IP65

(2) Ambient temperature: -15ºC -60 ºC

(3) MMPT(Maximum power point tracking) function, the highest solar energy utilization

(4) Automatic charging function: ensure the normal operation of the solar pump while charging the battery; The battery can keep the solar pump working in the absence of sunlight

(5) Digital display of power, voltage, current, speed, and other working conditions and error code

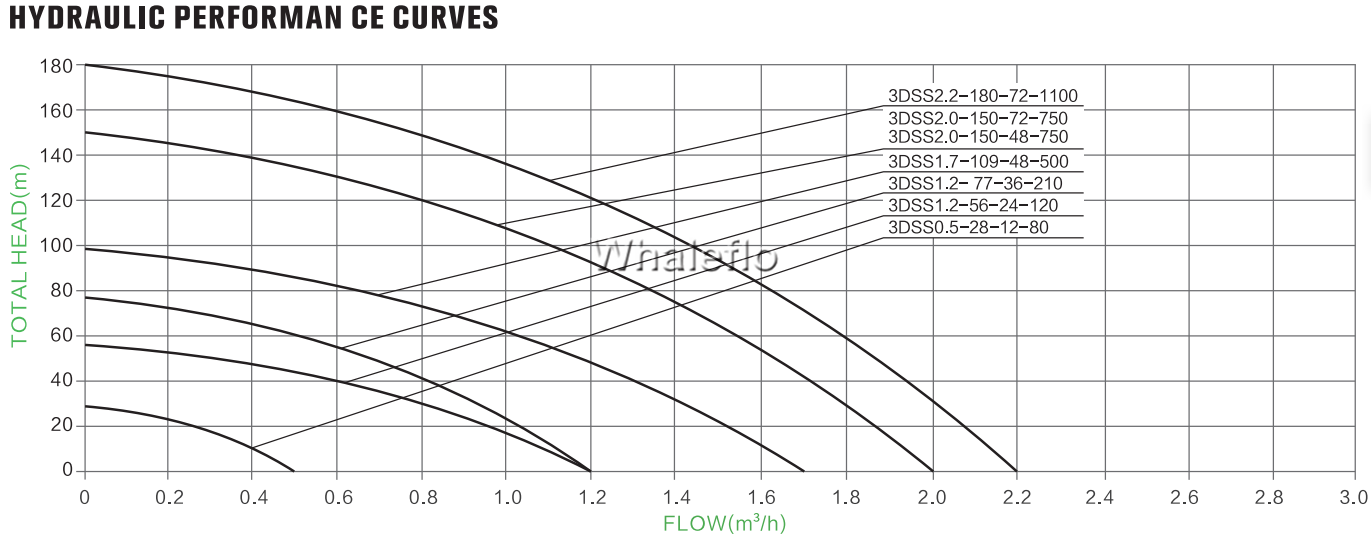

Model Number	Power(w)	Voltage(V)	Max Flow(m³/h)	Max Head(m)	Outlet
3DSS0.5-28-12-80	80	12	0.5	28	0.75"
3DSS1.2-56-24-120	120	24	1.2	56	0.75"
3DSS1.2-77-36-210	210	36	1.2	77	0.75"
3DSS1.7-109-48-500	500	48	1.7	109	0.75"
3DSS2.0-150-48-750	750	48	2.0	150	0.75"
3DSS2.0-150-72-750	750	72	2.0	150	0.75"
3DSS2.2-180-72-1100	1100	72	2.2	180	0.75"
WHALEFLO SCREW SOLAR PUMP WITH S/S inlet/outlet

1. Automatically run when power enough or tank is not full. Automatically off when tank is full.
2. High waterproof grade: IP65, double seal effect in waterproof and leak-proof
2. Soft start technology: No impulse current, longer life for the pump motor.

3. High voltage/Low voltage/Over-current/High temperature protection

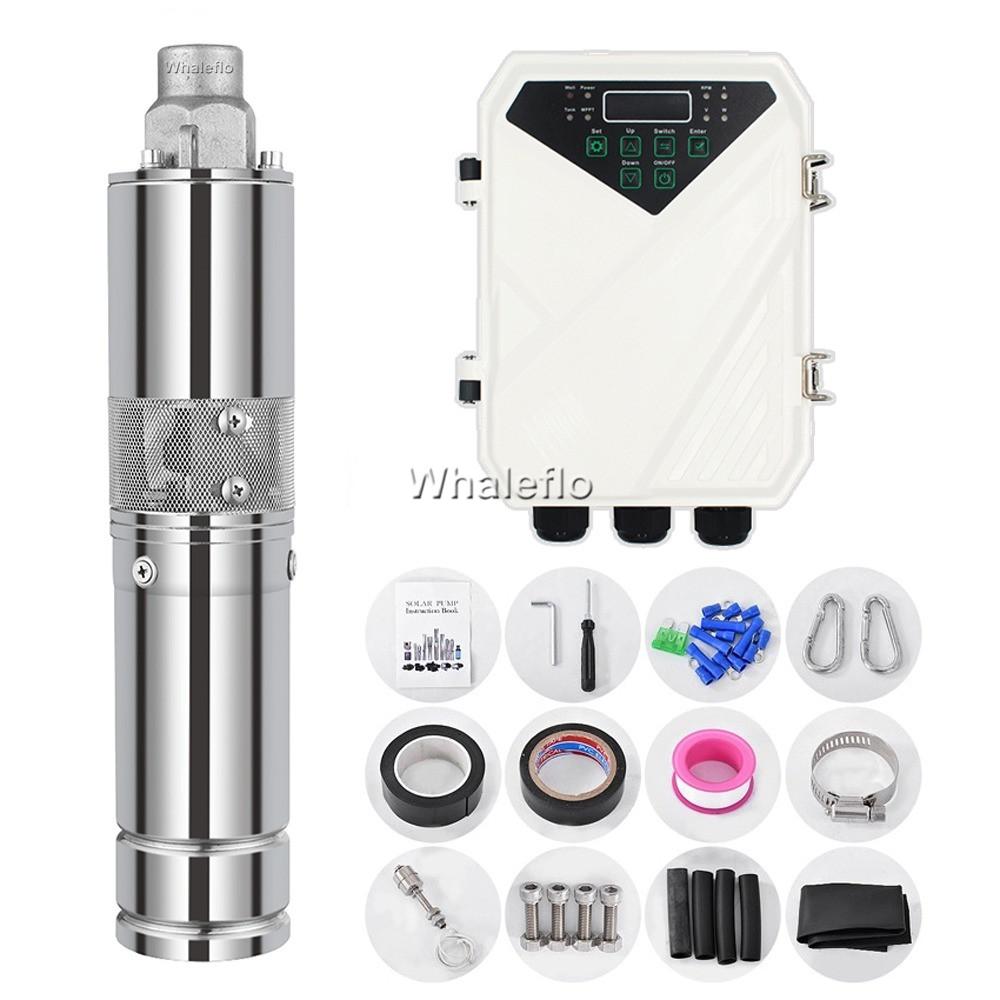

What We Get For You (Package Include):
- 1 x 3" DC solar Pump with 2m cable
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
What You Need To Get By Yourself (Package DO NOT Include):
- Suitable solar panels. There’re some suggestions in the instruction book.
- A stainless steel wire ( called safety cable) to hold the pump in the bore. If pumping water from dam or river, a float set up required.
- A poly pipe from pump to the water tank.
- Wire power cable (3 wires plus earth). we recommend cable size at least thicker than the original cable in the pump.
