24V 7.8GPH self-priming impeller bilge cooling centrigual pump for marine engine cooling clean
Self-priming Bilge pump
7.8GPH (30LPM)bilge pump with 2 year warranty
3/4''NPT with NBR Rubber
12V & 24V with 3M head& 30 PSI

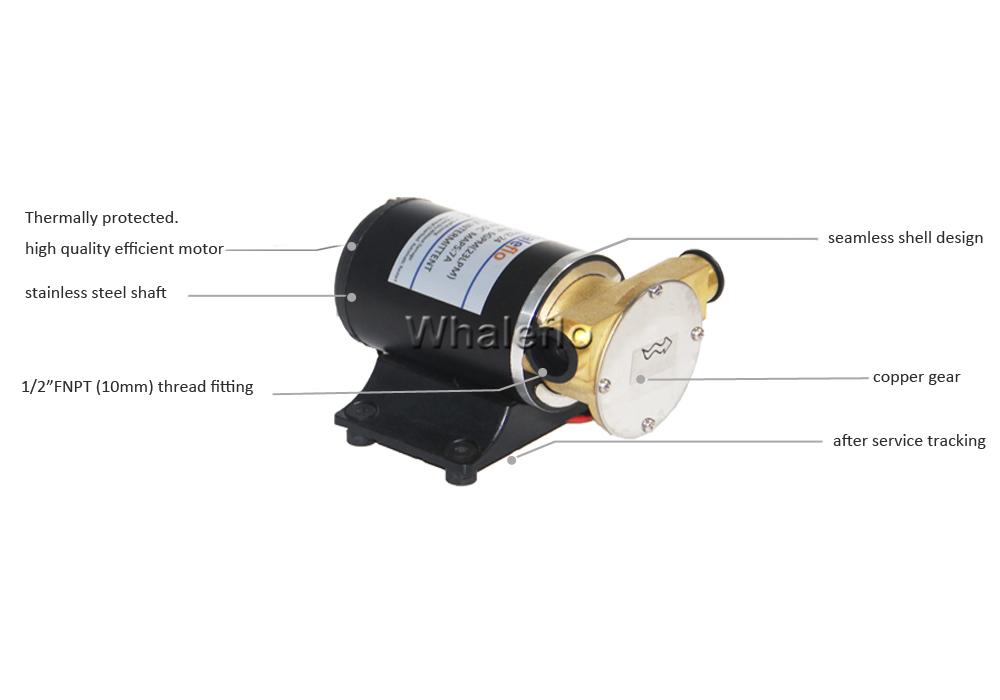

Self-priming ability with corrosion resistance mounts pump body.
Stainless deal basing on fluoroelastomer lip seal motor
All bronze shaft
Whaleflo 24V impeller bilge pump application
marine application, caravans/RV, automotive, car, tuning, boat oil transfer, yacht, draining of engine sumps and agriculture applications， Designed for continous use，Shipboard systems，Power transmissions systems，Conveyor systems，Generator systems，compressors，CNC machinery，Forming machinery，Lubricant Cooling Systems，Differential Transmission Oil Cooler
Remark Detail,
Allowed liquids，
FRESH WATER,SALT WATER,ENGINE OIL (max temperature 90°C)
LUBRICANTS,AND NON-CORROSIVE VISCOUS LIQUIDS, max,viscousity 85 cst,DIESEL FUEL
NOT Allowed liquids
PETROL (GASOLINE),FLAMMABLE LIQUIDS with PM < 55°C,FOODSTUFF LIQUIDS,CORROSIVE CHEMICAL,SOLVENTS
Whaleflo Pump Specification
Model:WEL-32-24
Port size, 3/4''NPT
Volt:12V/24V, Amps:8A/5A
Self -priming:3M
DO NOT RUN DRY
Working intermittent

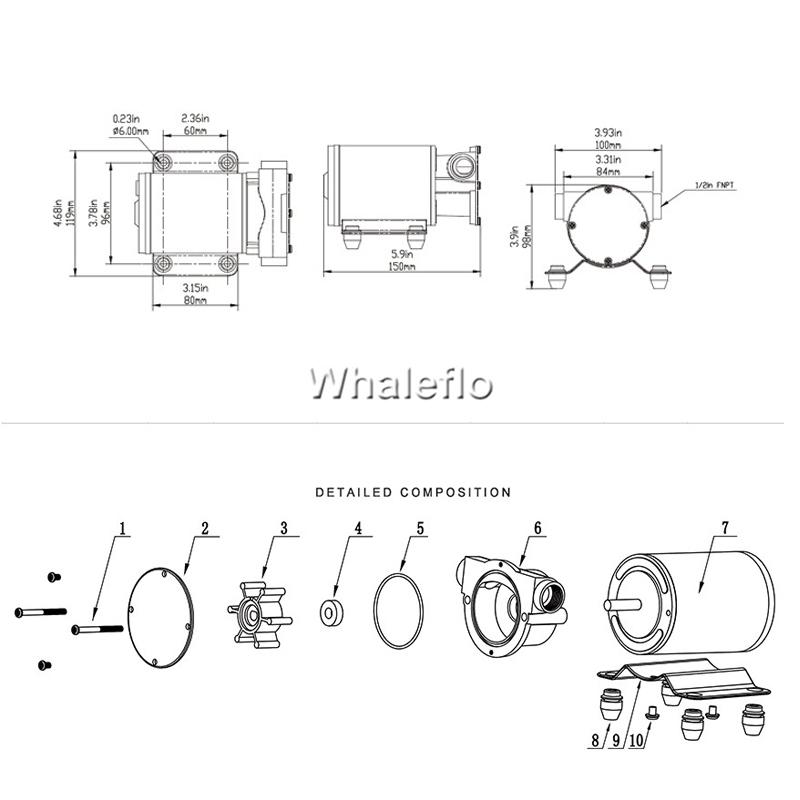

Technical data & drawing
| Model | Volt | Flow rate | Max Lift | Amps(A) | Max Draw(A) | Packing size(mm) | N.W/G.W(kgs) | |
| WEL-32-12 | 12Vdc | 30LPM | 3M | 8.0A | 10.0A | 215*135*110 | 2.38/2.58 | |
| WEL-32-24 | 24Vdc | 30PLM | 3M | 5.0A | 7.0A | 215*135*110 | 2.35/2.58 | |
| Key | Description | Quantity |
| 1 |
Screw 1 |
4 |
| 2 |
Stainless Stell Shell |
1 |
| 3 |
Impeller |
1 |
| 4 |
Oil-Seal |
1 |
| 5 |
O Ring |
1 |
| 6 |
Pump Head |
1 |
| 7 |
Motor |
1 |
| 8 |
Baste Plate Assembly |
1 |
| 9 |
Screw 2 |
2 |
| 10 |
Rubber Feet |
4 |
