Boat Hydraulic Steering to 300 hp

Suitable for outboard engines less than 300hp

  • Product Origin:

    China

  • Brand:

    Whaleflo

  • Item NO.:

    300HP

  • Shipping Port:

    Xiamen,Shanghai,Qingdao,Ningbo,Shenzhen,Guangzhou Port

  • Color:

    as picture

  • Lead Time:

    7-30 working days

  • Payment:

    T/T,Paypal,Western Union Transfer

  • MOQ:

    50
Inquiry now

Categories

Hot Products

Products Description

Boat Hydraulic Steering to 300 hp

Hydraulic steering Description

This kit contains the following:

Helm unit

Hydraulic ram

Hydraulic hose 8 Meter x 2

Helm fitting 45-degree x 2

Purging hose

Filling hose kit

Instructions

Helm specifications:

Bore 35 mm

Piston rod diameter 19 mm

Plungers 7

Hard over to hard over 5.5 turns

Steering wheel diameter 320 to 540 mm

Hydraulic ram specifications:

27 cc

Volume 141.1 cc

Tube ID 35 mm

Rod OD 18 mm

Output force (kgf /cm2) 468

Stroke 214 mm

Max pressure (kgf/cm2) 69

Up to 300 hp

Application Guide

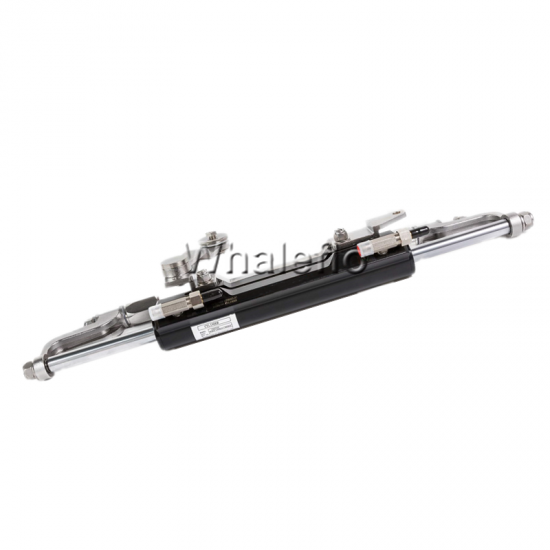

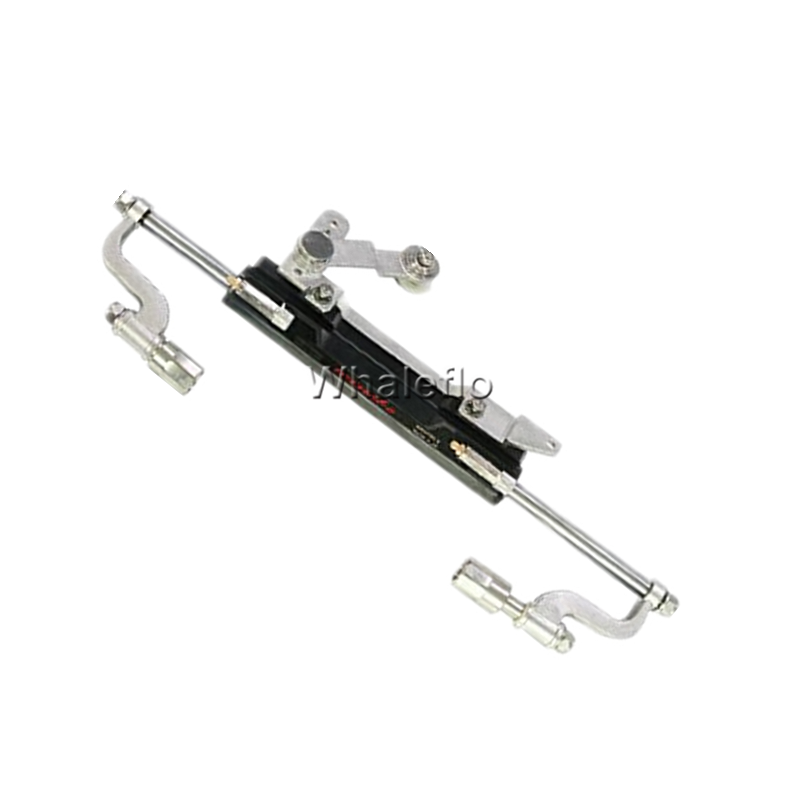

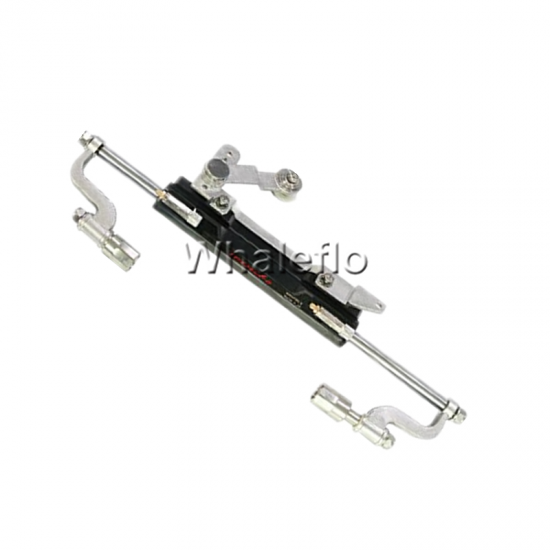

Whaleflo Hydraulic cylinder


Whaleflo Cylinder specification

Volume 141.1cc
Output Force 468kgf
Tube I.D 35mm
Piston I.D 20mm
Stroke 214mm
5/16" (8mm) Fittings For high pressure flex hose

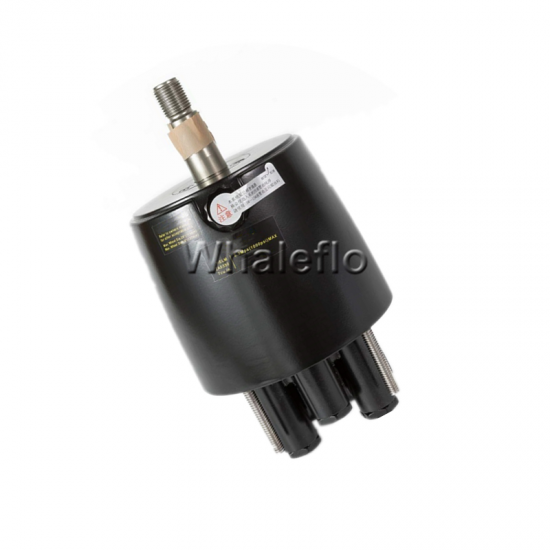

Compact Front Mount Helm Pumps

Whlaleflo hydraulic steering system

Compact design

Built-in lock valve for positive rudder lock

Integral relief valve for over-pressure protection

7 plunger

3/4" tapered stainless shaft

Anodized cover

ORB ports

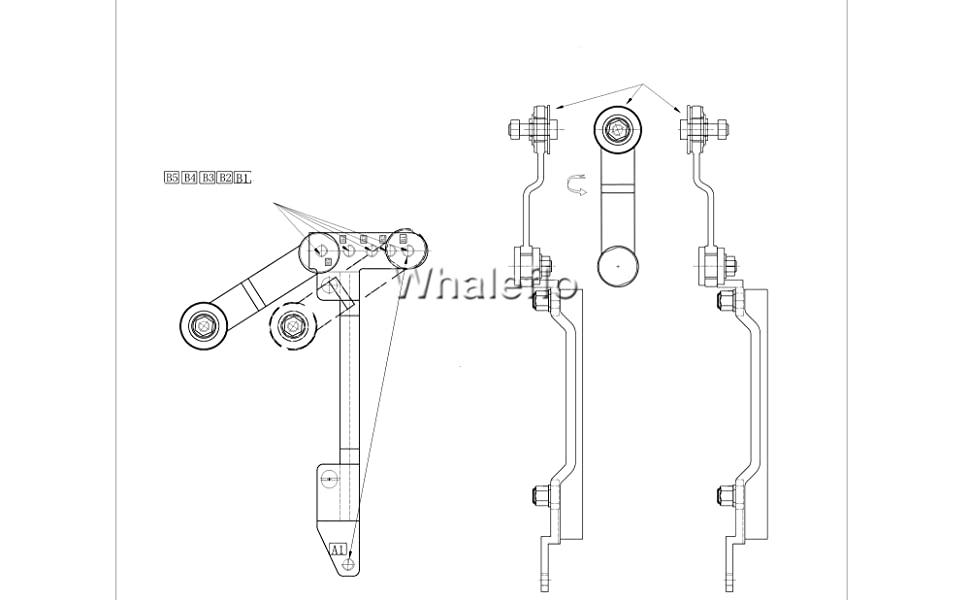

Adjustable Link arm

adjustable holes for the link arm

B1 and A1 can be used to connect with tie bar for twin engine

Link arm can be mounted 180 degree reversed.

With adjustable holes and reversible link arm, the cylinder can fit almost all the models


Cut-to-length Tube

whaleflo hydraulic system
Tube kits in 24 feet. Can be shorten to the length you desire with quick connectors.

High Strength tubes made in 3 layer

The ends to the cylinder side are reinforced
