Marine Boat Outboard Hydraulic Steering System Kit Suit For Less Than 150HP Engines
Hydraulic steering Description
- Helm Mounted Hydraulic Steering systems for Boats
- Universally Designed for outboards rated up to 150 total Horsepower
- Compatible with such brands as Yamaha, Suzuki, Honda, Mercury, Nissan, Tohatsu and more
- Hydraulic Steering kit built in High Quality Stainless Steel
- 24ft high quality Hydraulic hose, Top mounted pump, and a ¾” tapered steering wheel shaft guarantee a professional installation on most boats
- This model fits with most engines up to 150 HP . But for some old models, it might need different pivot plate or additional washers.

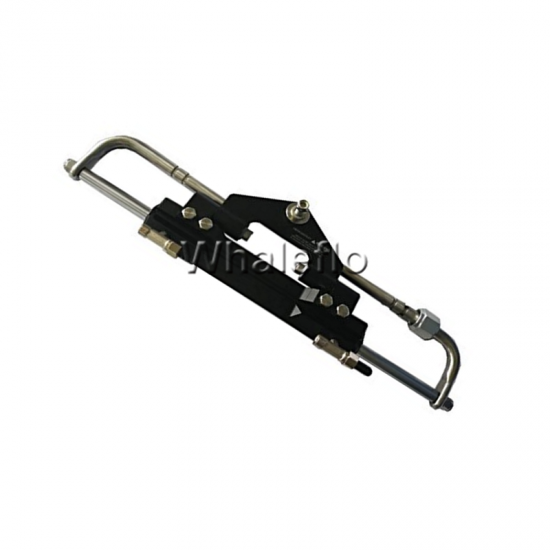

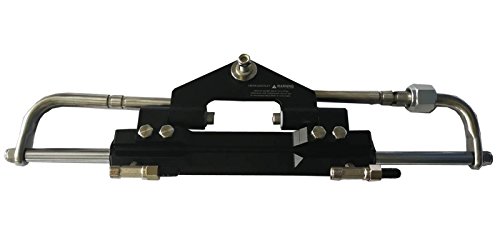

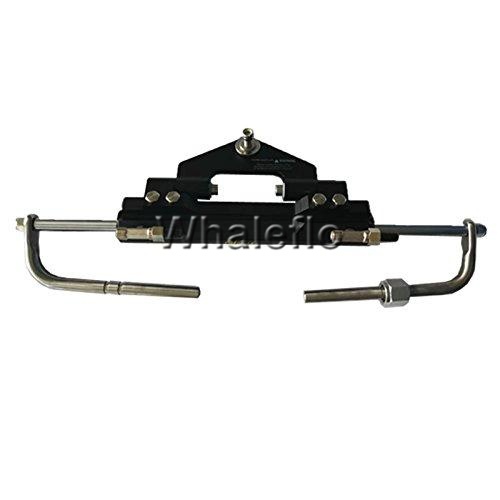

Whaleflo Hydraulic cylinder

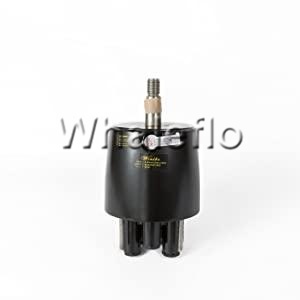

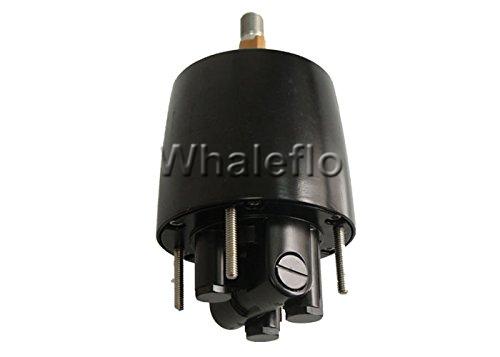

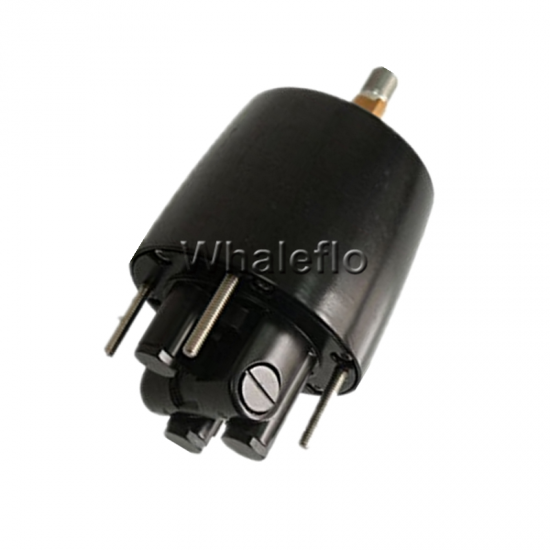

Compact Front Mount Helm Pumps
Compact design
Built-in lock valve for positive rudder lock
Integral relief valve for over-pressure protection
7 plunger
3/4" tapered stainless shaft
Anodized cover
ORB ports

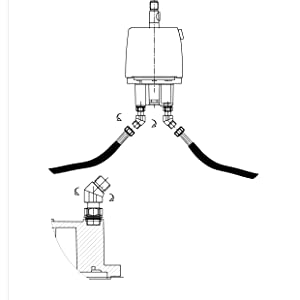

Adjustable ORB fittings
Adjustable O-ring (ORB) fittings simplify the installation process and will allow for simple reorientation of the fittings after installation
ORB fittings made in Chrome plated Copper.

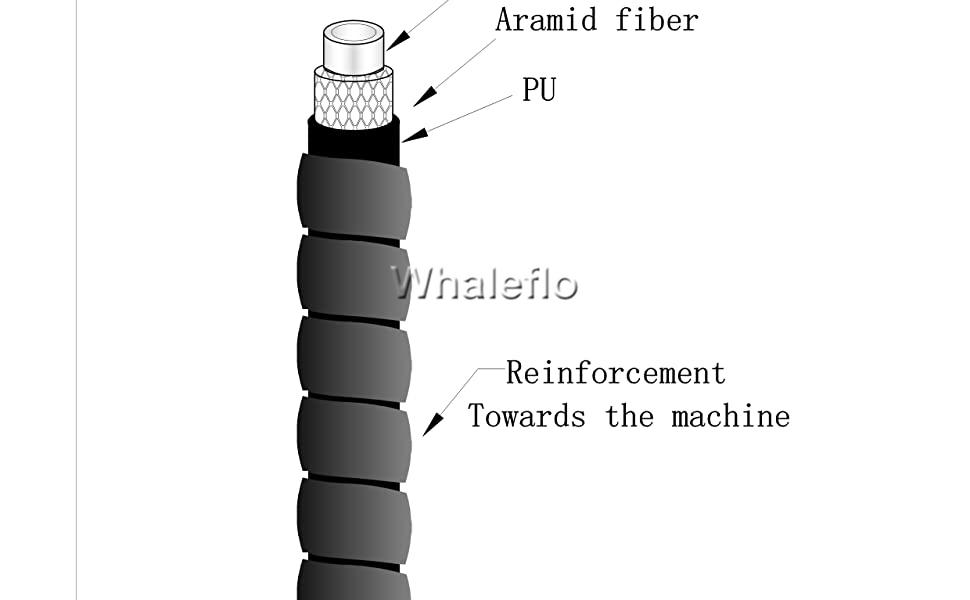

Cut-to-length Tube
Tube kits in 24 feet. Can be shorten to the length you desire with quick connectors.
High Strength tubes made in 3 layer
The ends to the cylinder side are reinforced

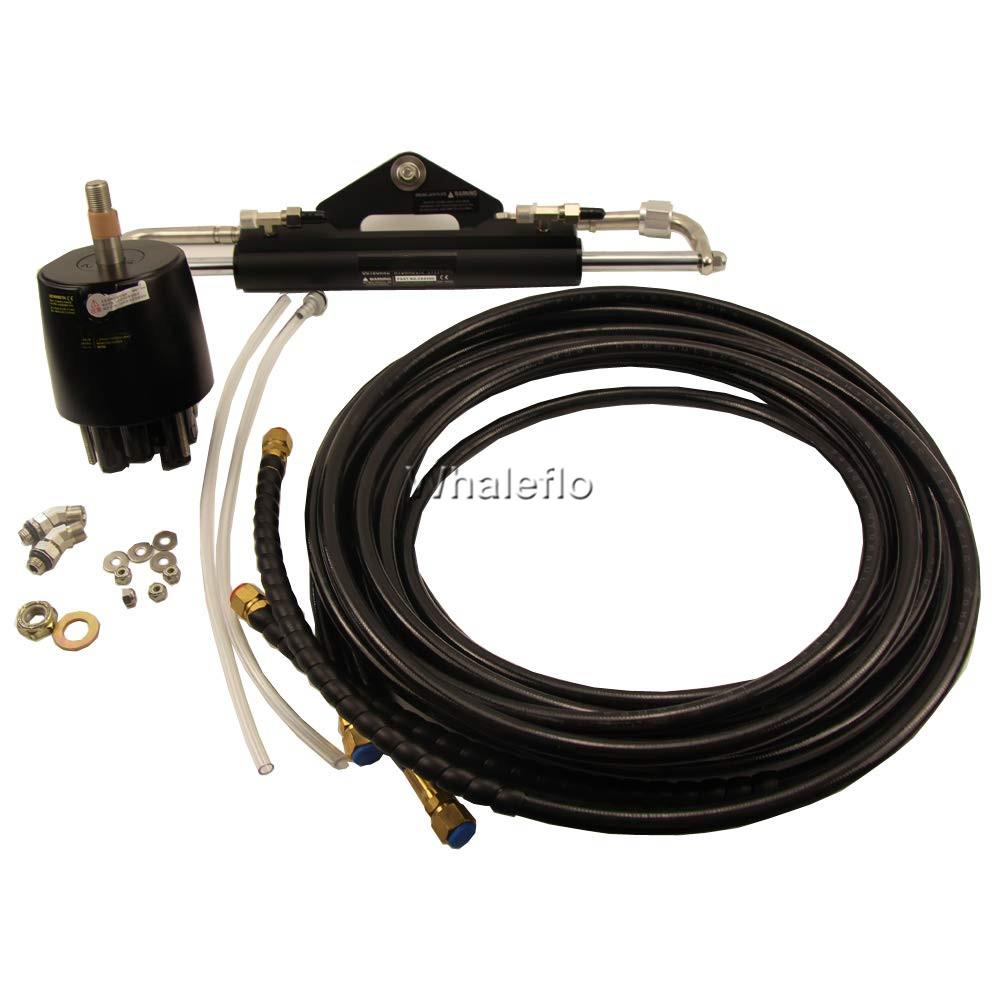

Whaleflo Hydraulic Steering Kit for outboard motors up to 150 hp!
Our precision marine hydraulic steering kit is a complete replacement for worn out helms. Compatibility with most outboard motors up to 150 hp gives you piece of mind purchasing our kit, knowing you will get many years of enjoyment of your new steering. Hydraulic steering removes the concern of sized cables and gives you effortless steering, just like when your boat was new!

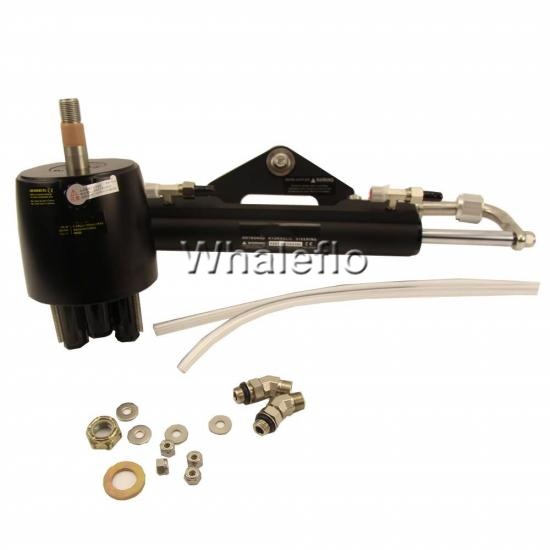

This kit offers: A Helm top mounted pump, using a standard ¾” tapered steering shaft A high quality, stainless steel construction 24 feet of quality hydraulic hose What’s in the box Helm/Pump Steering cylinder 2 Hoses 2 Fittings 2 Stabilizer bars Fill kit Mounting hardware Drilling template Specifications: Model ZA0300 Universally suitable for outboard motors up to 150 Total horsepower 2 Hoses – 8 meters (24 feet) in length 3” mounting hole required for helm/pump. 1.25 inch bore diameter, 5/8” piston rod diameter 7 plungers Suitable for 12 ½ to 21 ¼ inch wheels 6.8 turns, lock to lock Required for complete install: A steering wheel with a ¾” tapered shaft 2 quarts of Hydraulic marine helm fluid (Do not use ATF or Brake fluid)
