Boat Outboard Hydraulic Steering System for Engine up to 90 hp

Suitable for outboard engines less than 90hp

Product Origin:
China
Brand:
Whaleflo
Item NO.:
90HP
Shipping Port:
Xiamen,Shanghai,Qingdao,Ningbo,Shenzhen,Guangzhou Port
Color:
as picture
Lead Time:
7-30 working days
Payment:
T/T,Paypal,Western Union Transfer
MOQ:
50

Inquiry now

Hot Products

Products Description

Boat Outboard Hydraulic Steering System for Engine up to 90 hp

Hydraulic steering Description

1.Make your boat steer better than new! Helm Mounted Hydraulic Steering systems for Boats
Universally Designed for outboards rated up to 90 total Horsepower!
Compatible with such brands as Yamaha, Suzuki, Honda, Mercury, Nissan, Tohatsu and more!
Our kit is made of high-quality stainless steel and Aluminum alloy for years of trouble-free use!

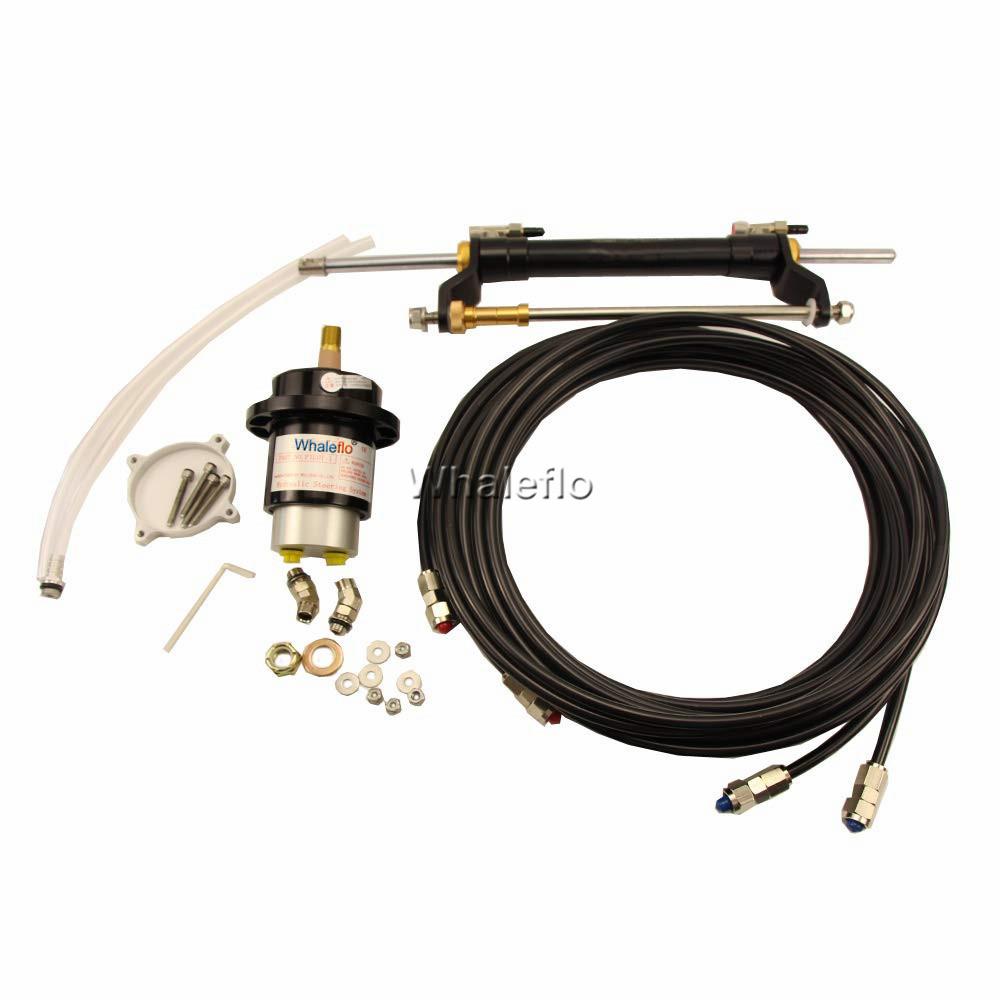

24 Feet of quality Hydraulic hose, Top mounted pump, and a ¾” tapered steering wheel shaft, guarantee a professional installation on most boats!

Features:

Hard over to hard over 5 turns

Hydraulic Front-mounted ram specifications

16 cc

Volume 71.1 cc

Output force (kgf/cm2) 232

Max pressure (kgf/cm2) 69

Helm specifications and measurements:

Bore 25 mm

Piston rod diameter 14 mm

Stroke 213 mm

Tube ID 25 mm

Rod OD 14 mm

Steering wheel diameter 320 to 460 mm

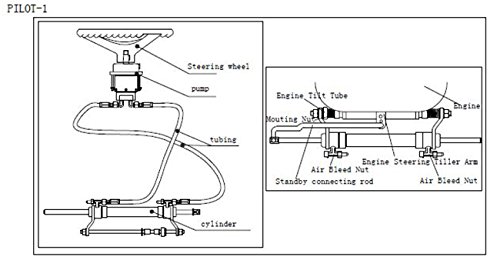

Application Guide

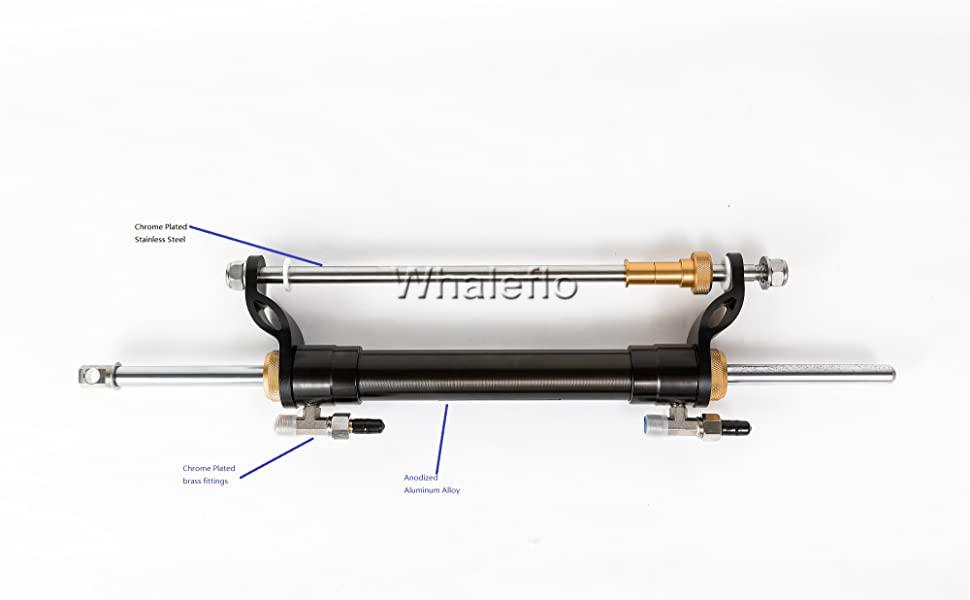

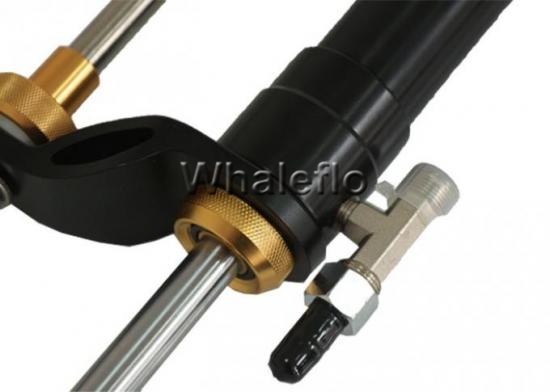

Whaleflo Hydraulic cylinder

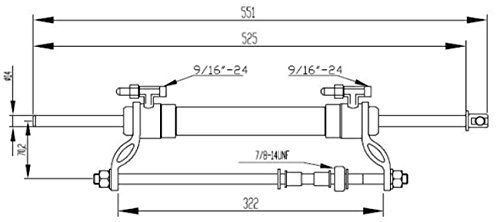

This spacing is the largest,because of the differenct brand models,through the installation of gaskets to solver the problem of adaptation.(for various brands

Whaleflo Cylinder specification

Volume	71.1cc
Output Force	232
Tube I.D	25mm
Piston I.D	14mm
Stroke	213mm
weights	2.2kgs

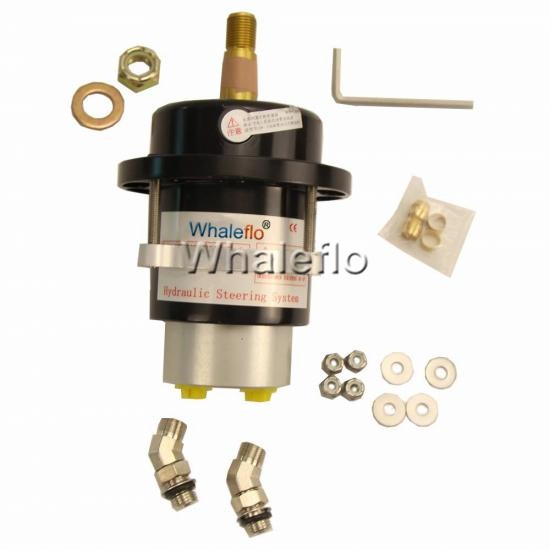

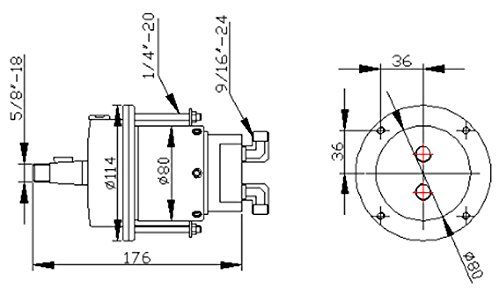

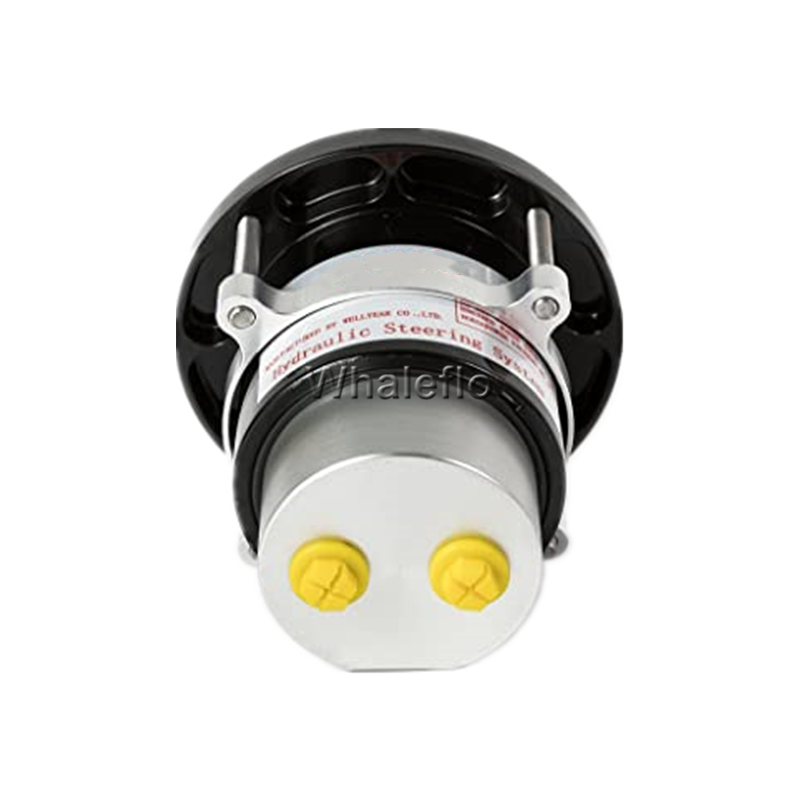

Compact Front Mount Helm Pumps

Plung number:5

Pump(cc/rev) :16

Max-Pressure(kgf/cm³）：69

Application:suitable for outboard engines up to 90hp

weights:2kgs
