WhalefloSolar TouchScreen 24V DC 3.6kVA 3.6kW Pure Sine Wave Built-In MPPT Off-Grid Solar Inverter
Description
The WhalefloSolar TouchScreen 24V DC 3.6kVA 3.6kW Pure Sine Wave Built-In MPPT Off-Grid Solar Inverter is a high-quality, efficient solution for off-grid solar power systems. With its advanced touchscreen interface, users can easily monitor and control their solar energy production. This inverter features a built-in Maximum Power Point Tracking (MPPT) function, which maximizes the energy output from your solar panels. The pure sine wave output ensures clean, reliable power for your sensitive electronics.
| GD series High frequency inverter data sheet | ||||
| Model | 3024EMH | 3024JMH | 5548JMH | |
| Input | Phase | L+N+PE | ||
| Nominal Voltage | 208/220/230/240VAC | |||
| Voltage Range | 154-264VAC±3V（Normal Mode) 185-264VAC±3V（UPS Mode） | |||
| Frequency Range | 50Hz/60Hz(Adaptive) | |||
| Output | Rated Power | 3000W | 3000W | 5500W |
| Output Voltage(AC) | 208/220/230/240VAC±5% | |||
| Output Frequency | 50/60Hz±0.1% | |||
| Waveform | Pure sine wave | |||
| Transfer Time( Optional) | 10ms for computer , 20ms for home appliances | |||
| Peak power | 6000VA | 6000VA | 11000VA | |
| Overload |
Battery Mode： 1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load |
|||
| Peak efficiency (battery mode) | >94% | >94% | >94% | |
| Battery | Rated voltage | 24Vdc | 24Vdc | 48Vdc |
| Constant voltage charging voltage (Optional) | 28.2Vdc | 28.2Vdc | 56.4Vdc | |
| Floating charge voltage (Optional) | 27Vdc | 27Vdc | 54Vdc | |
| charger | PV charging method | MPPT | MPPT | MPPT |
| PV max input power | 3000W | 4000W | 5500W | |
| MPPT tracking range | 300~400Vdc | 120~500Vdc | 300~400Vdc | |
| Max PV input voltage | 400Vdc | 500Vdc | 500Vdc | |
| Max PV charging current | 80A | 100A | 100A | |
| Max AC charging current | 80A | 100A | 60A | |
| Max charging current | 80A | 100A | 100A | |

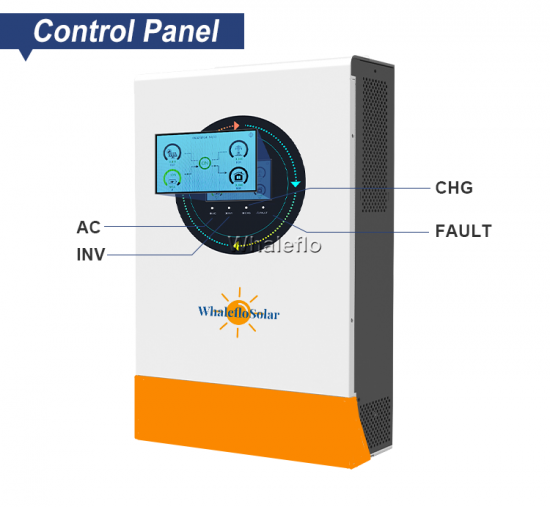

| Display | LCD display | Operating mode/load/input/output, etc. | ||
| Communication port | RS232 | 5PIN/Pitch2.0mm, baud rate 2400 | ||
| Expansion & configuration port |
2×5PIN/Pitch2.54mm, lithium battery BMS communication card, WIFI card, dry contact card, etc. |
|||
| Parallel interface | No | Optional | ||
| Environmental parameters | Operating environment temperature | 0~40℃ | ||
| Operating environment humidity | 20%~95%（Non condensing） | |||
| Storage temperature | -15~60℃ | |||
| Altitude |
The altitude should not exceed 1000m, derating above 1000m, up to 4000m, refer to IEC62040 |
|||
| noise | ≤50db | |||
| Certifications | EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 | |||
