Whaleflo1 Inch 4 Digital Diesel Fuel 20-120L/Min Flow Meter Supplier
Description:
Model Type：FM-120 -2 Flow Meter
Flow Rate: 5-30 GPM / 20-120 l/min
Accuracy: ±1%
Connections: 1" / 25mm BSP(F) Inlet + 1" 25mm BSP(F) Outlet
Shell material: Aluminum, Plastic
Mounting direction: vertical or horizontal
Working pressure: > 0.04 Mpa
Max operating pressure: 50psi / 3.5bar

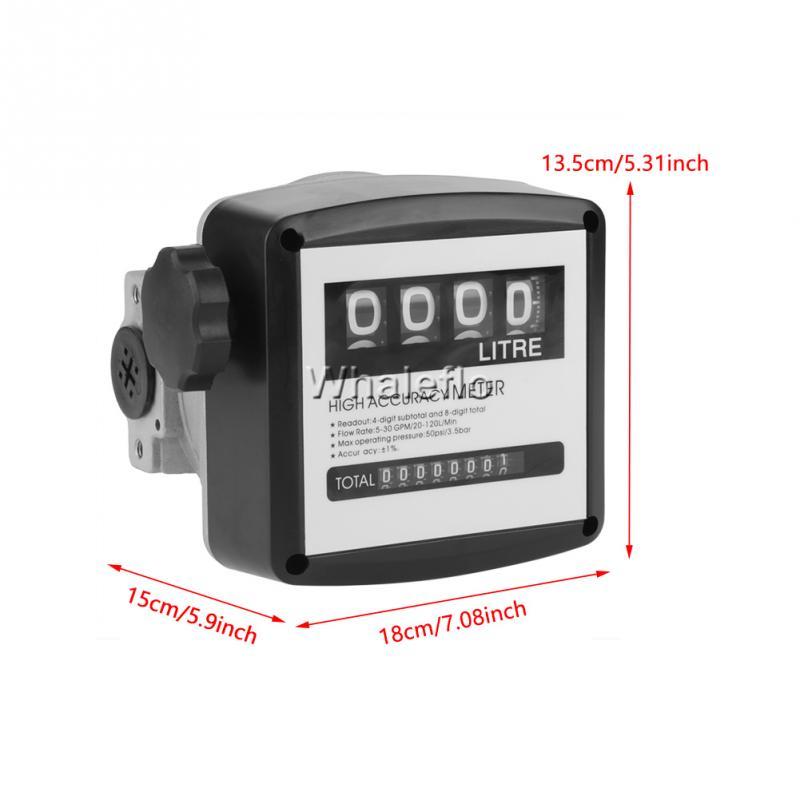

Size: 18 * 15 * 13.5cm / 7.09 x 5.91 x 5.31in
Weight: 1984g
Package included:1 x Diesel Flow Meter
Features:
- It is made of high-quality aluminum (back) and plastic for long life
- This series of flowmeters are used for diesel, gasoline
- The flowmeter is reliable, easy to install and proofread
- With large display screen, easy to read, quick return to zero rotation, flexible horizontal or vertical installation, etc.
- The handwheel liter with mechanical flow meter can be manually reset to zero, and the accumulated volume cannot be reset to zero.
The diesel fuel flow meter FM 120 is perfect for pumps with a capacity of up to 120 l / min.
In this combination, this equipment forms a convenient, mobile and compact unit for metering and pumping diesel fuel.
For long-term and reliable operation of the liquid meter, it is recommended to install a fuel filter at the inlet.
FM 120 is today one of the most popular fuel flow meters.
